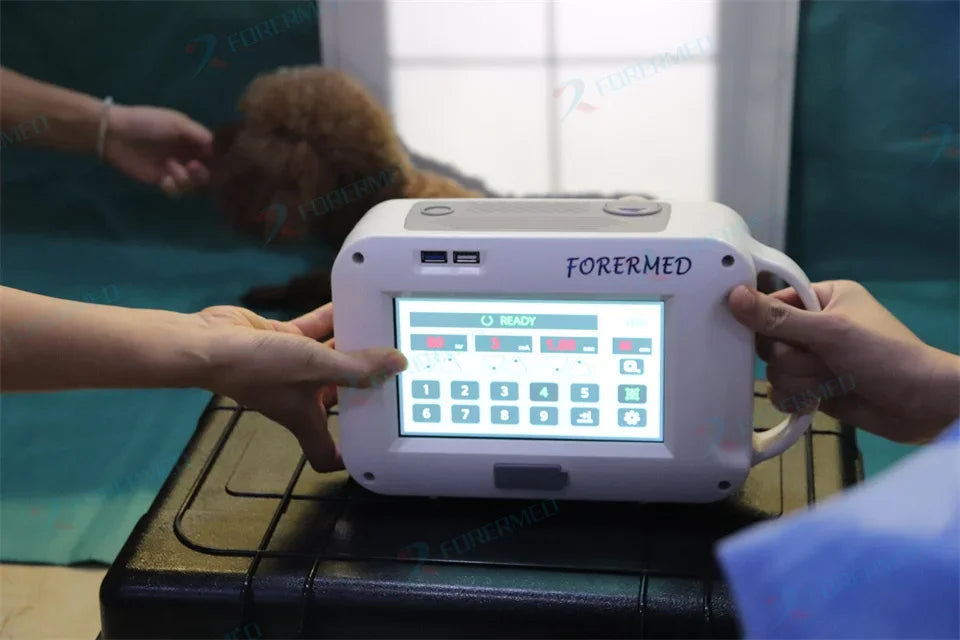

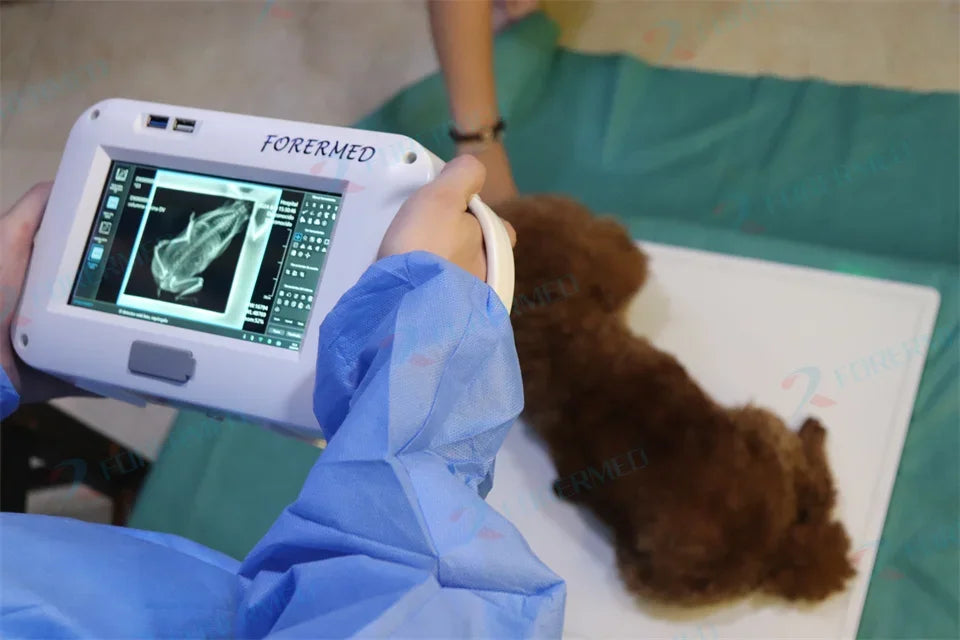

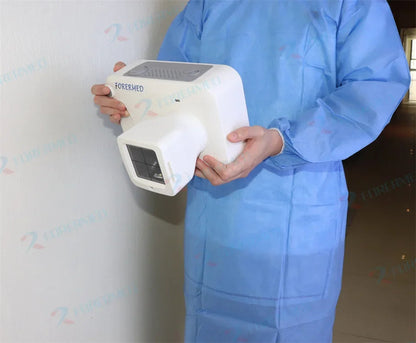

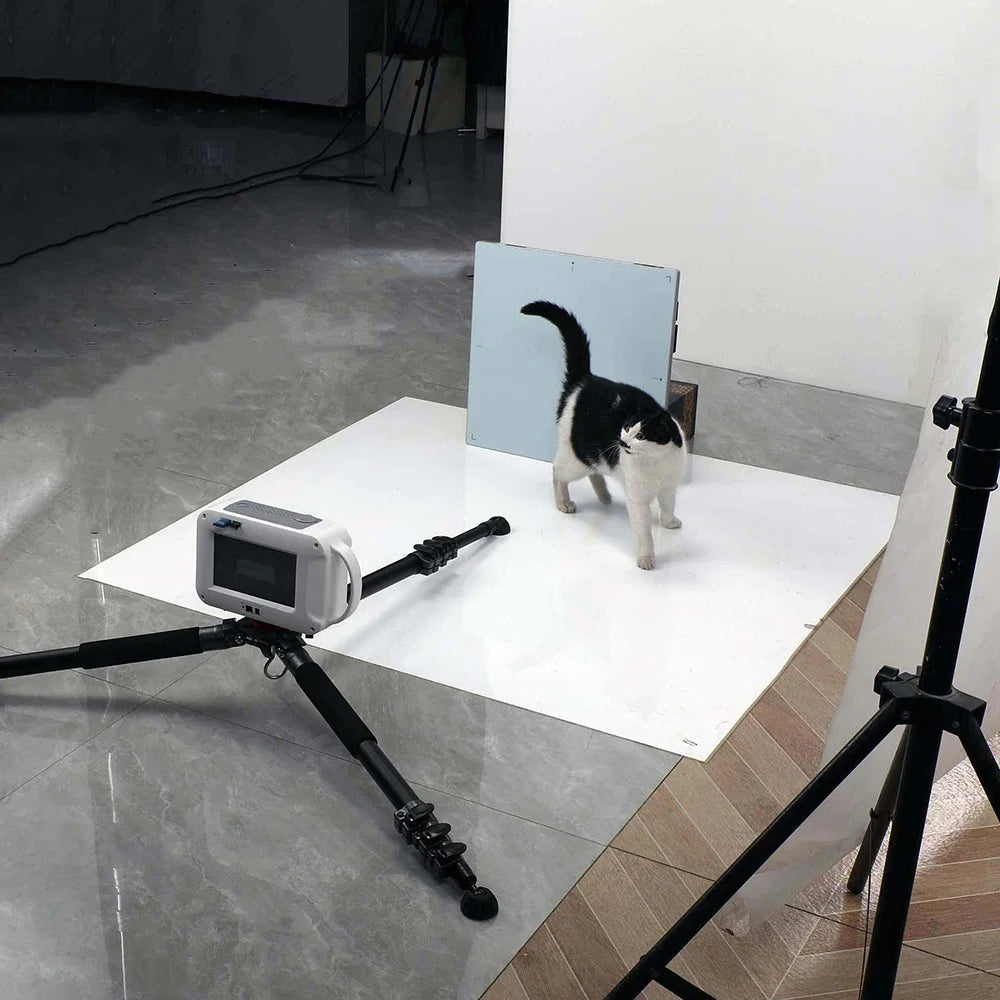

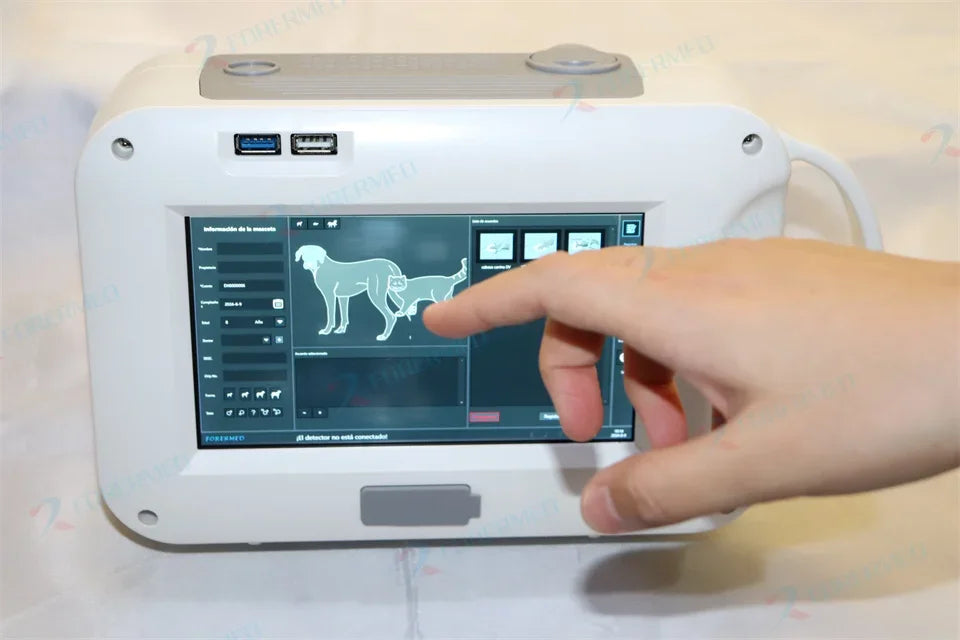

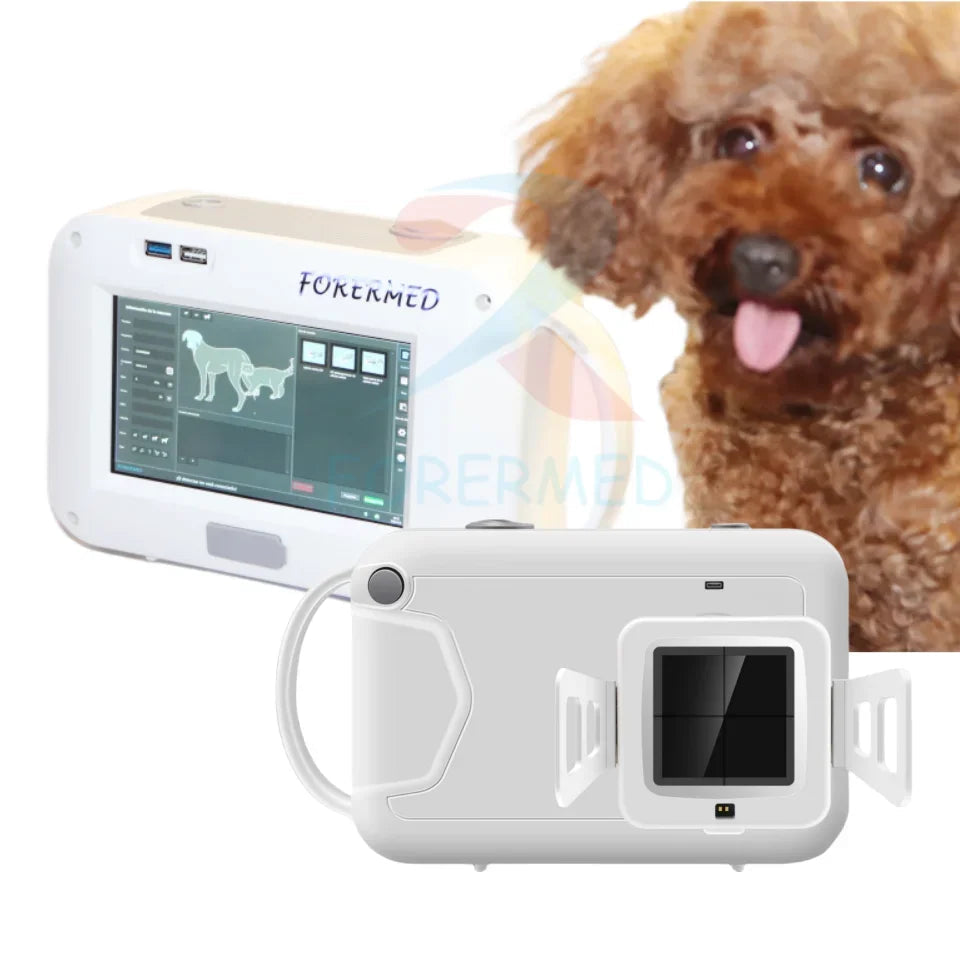

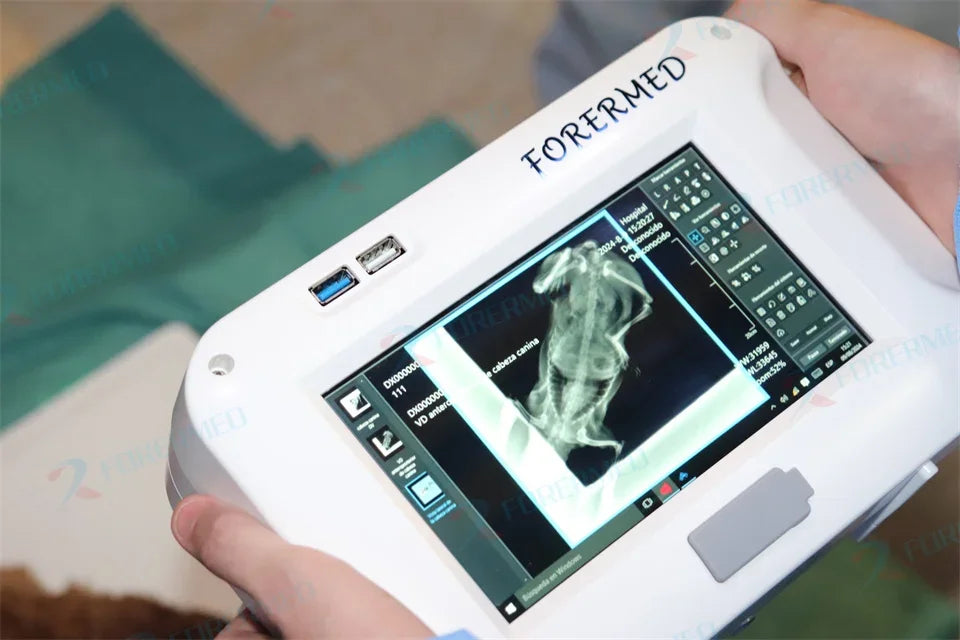

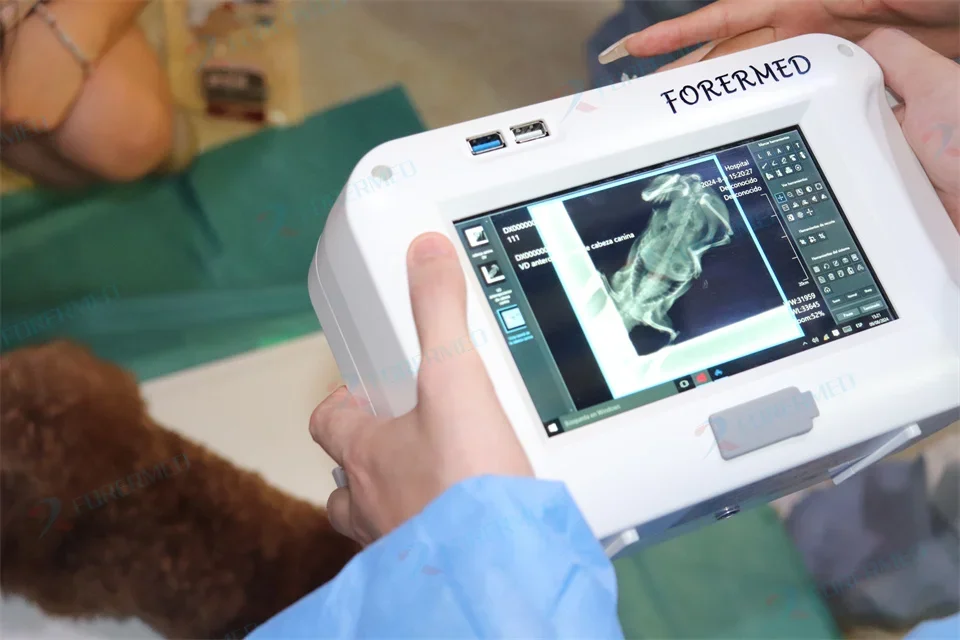

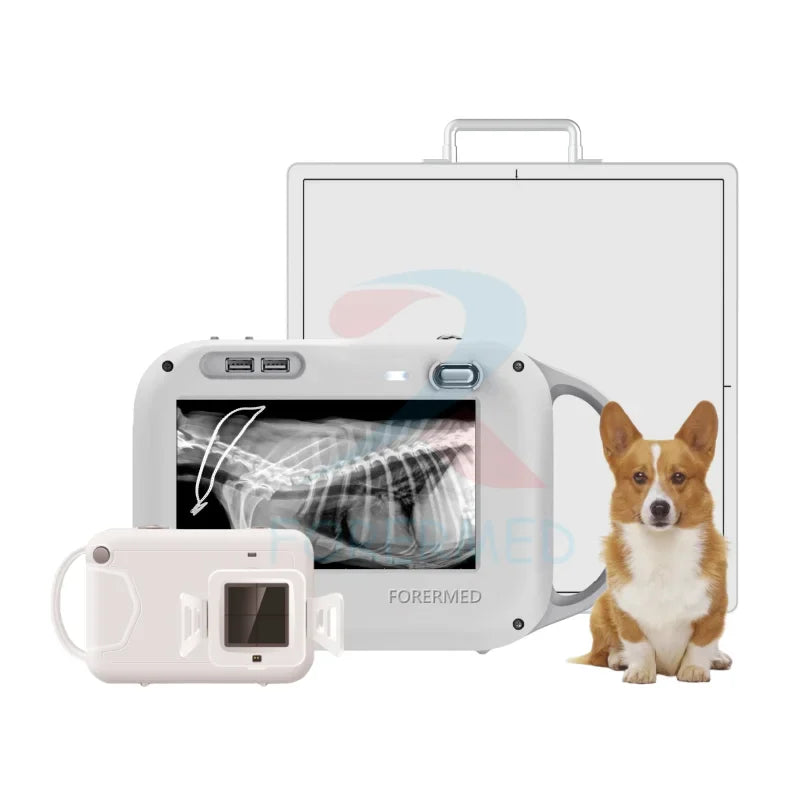

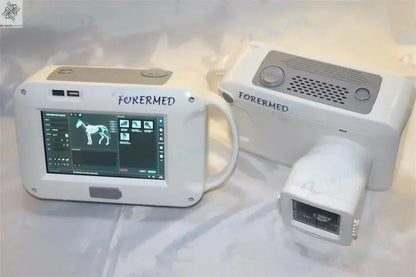

Mini Portable X Ray Machine Veterinary X Ray Machine Vet Digital X-ray Inspection Machine For Dog Cat
Mini Portable X Ray Machine Veterinary X Ray Machine Vet Digital X-ray Inspection Machine For Dog Cat
- FREE SHIPPING
Hurry up! Only 9 items are in stock.
Order in & get it by
Couldn't load pickup availability
Description
Description
SPECIFICATIONS
Battery: 22.2V(polymer lithium ion),2200mAh
Brand Name: NoEnName_Null
DIY Supplies: Electrical
Dimension: 285mm * 265mm * 168mm (L*W*H)
Feature: Handheld
Focus point: 0.3 * 0.3mm
Frequency: 50Hz±1Hz
High-concerned chemical: None
Input Power: AC power 220V±10%
MOQ: 1 Set
Model Number: YJ-BW705
Origin: Mainland China
Place of Origin: Henan, China

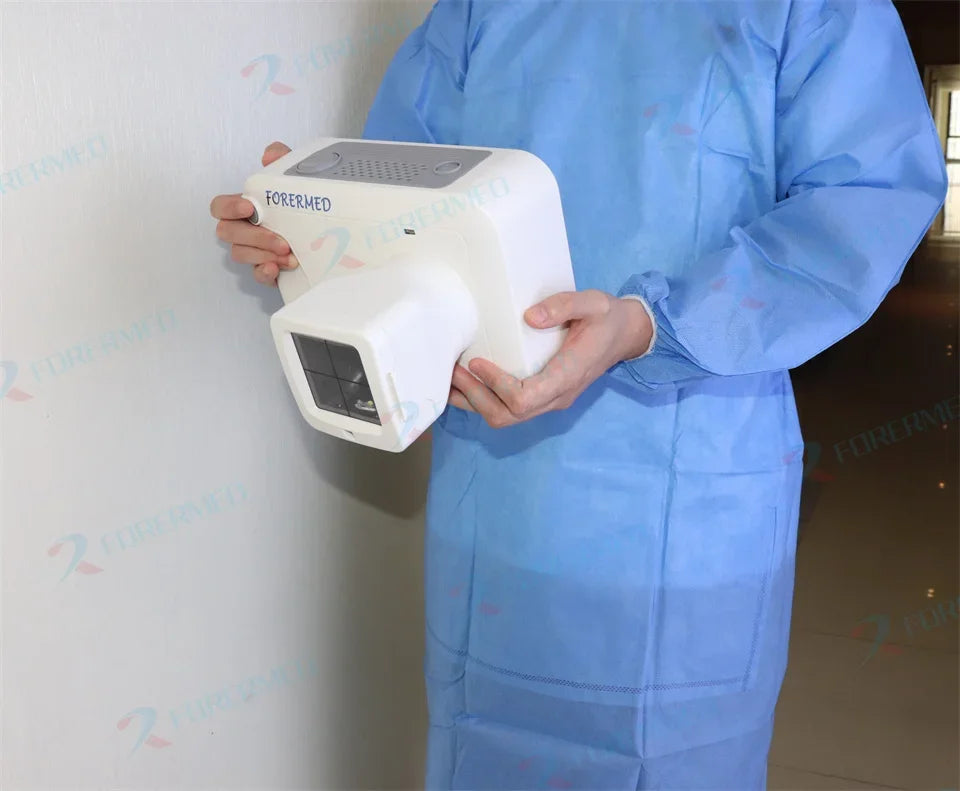

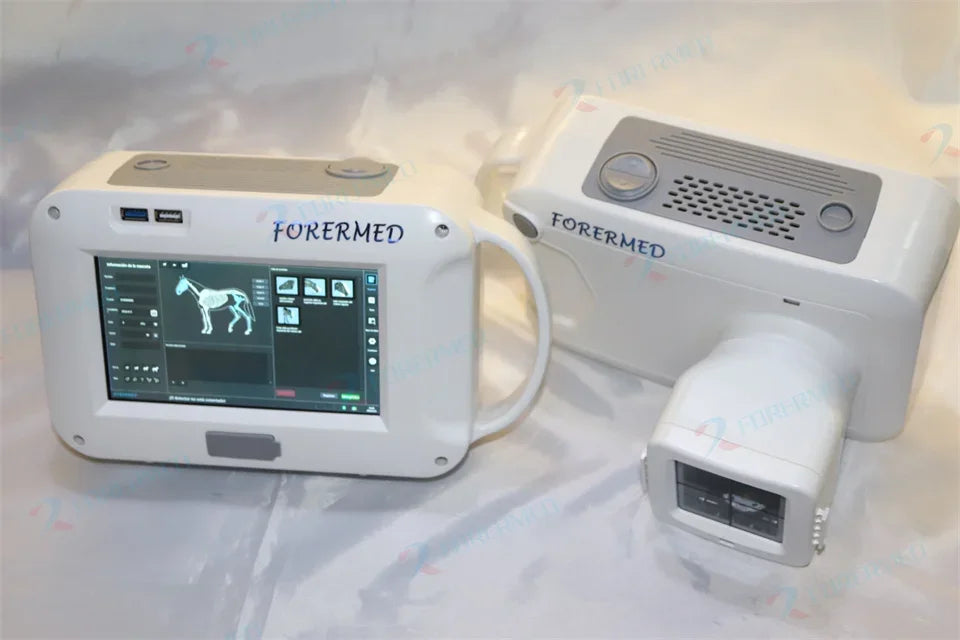

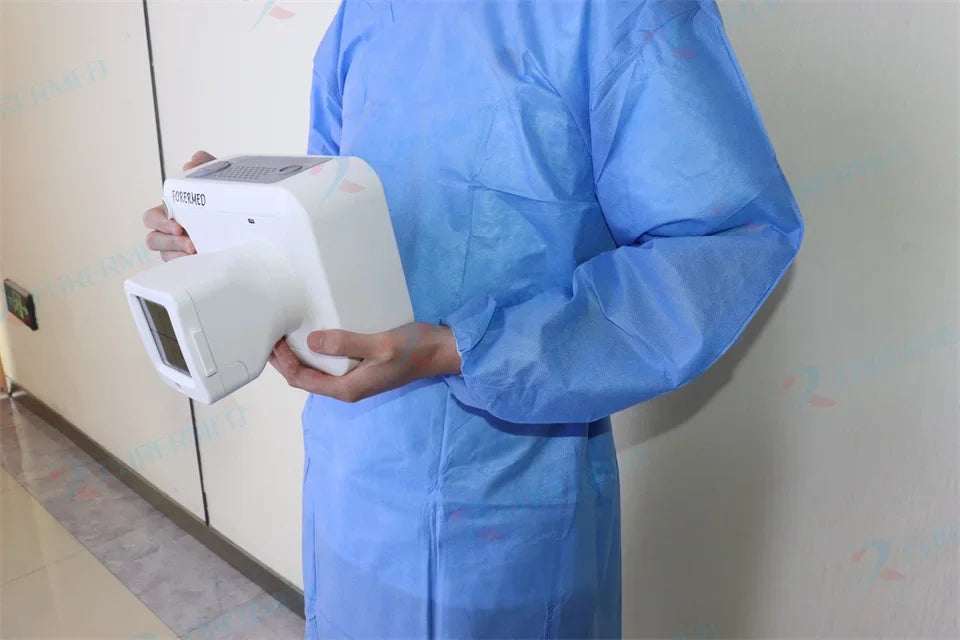

Product name: Handheld X-ray
Properties: Diagnosis & Injection

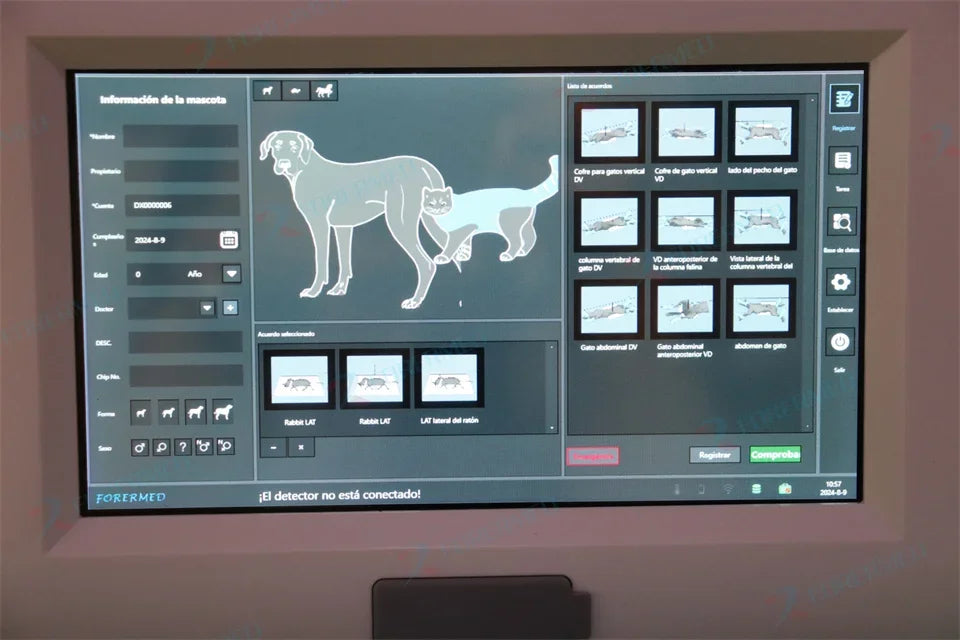

Screen: 7 inches (resolution:1024x600)
Weight: 3.2kg

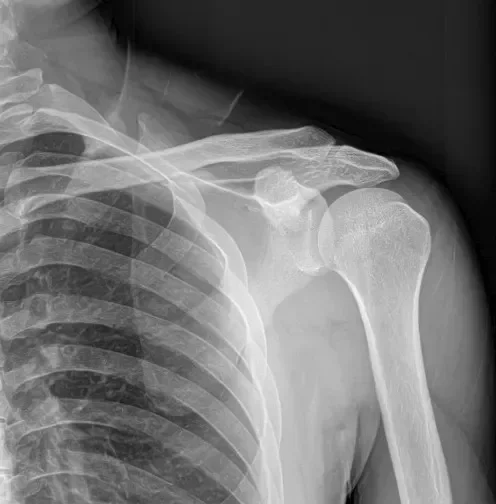

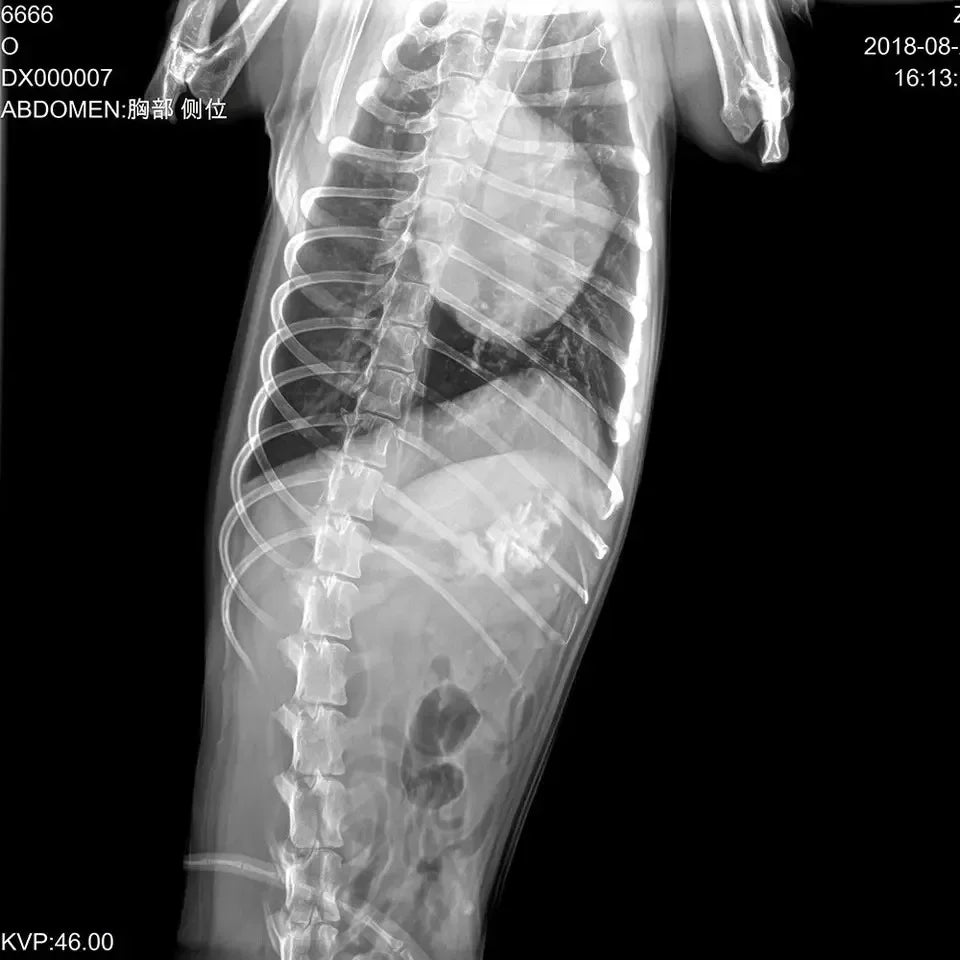

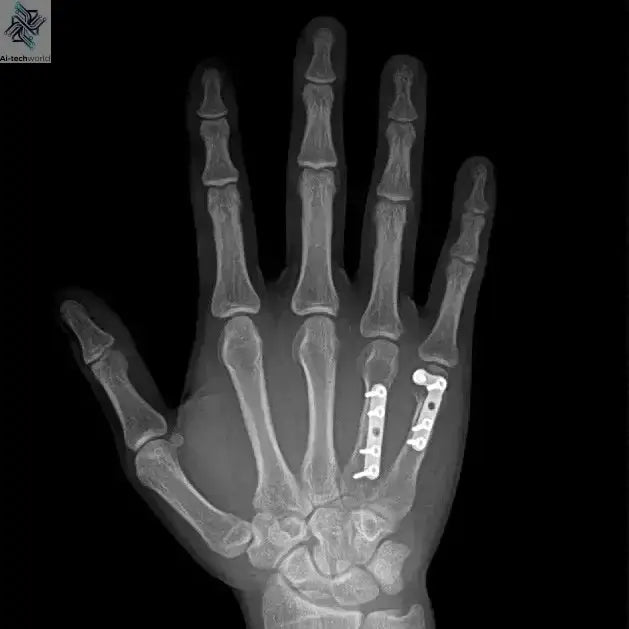

Limited to X-ray diagnosis of limbs and chest. YJ-BW705 system is not suitable for mammography
Suitable for
* Comprehensive diagnostic center
* Hospital radiology department
* Radiological imaging center
* Emergency room
* Orthopedic department
* Lung diagnosis center

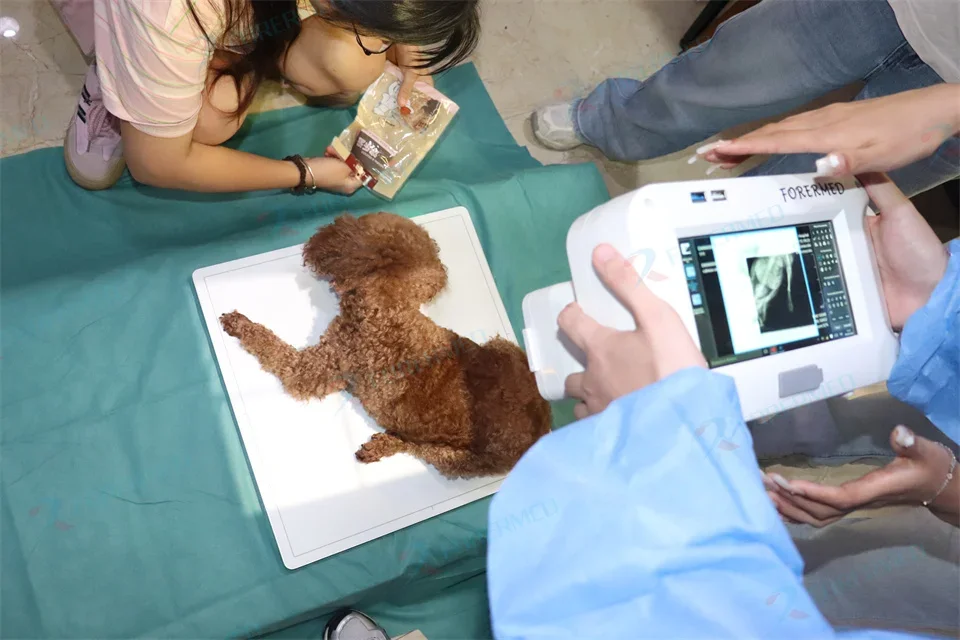

* Veterinary hospitals
* Fixed exposure parameters easy to operate.
|
Project
|
|
Specification
|
|
|
Charger
|
Input
|
Mono-phase锛孉C power 220V±10%
|
|
|
|
frequency
|
50Hz±1Hz
|
|
|
|
Output
|
25.2 VDC 锛�1.5A
|
|
|
Battery
|
|
22.2V锛坧olymer lithium ion锛夛紝2200mAh
|
|
|
kV (Adjustable)
|
|
50 -70 kV (step:1 kV )
|
|
|
mA (Adjustable)
|
|
2- 5mA (step:1 mA )
|
|
|
X-ray release time range [second]
|
|
0.03-0.20secs锛坰tep: 10millisecond锛�
0.20-2.00secs锛坰tep: 50millisecond锛� |
|
|

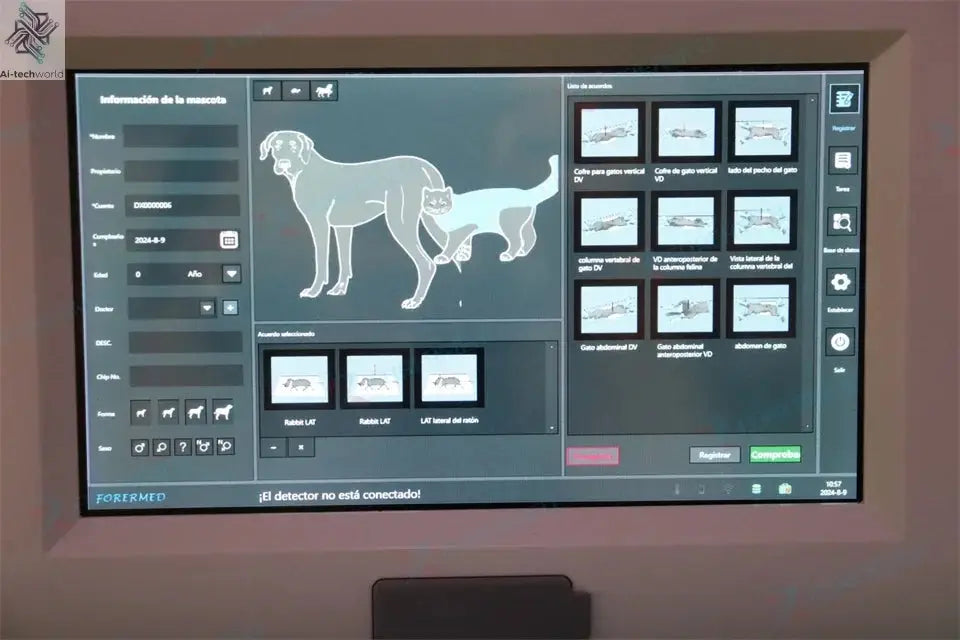

Screen
|
|
7 inches (resolution锛�1024x600)
|
|
|

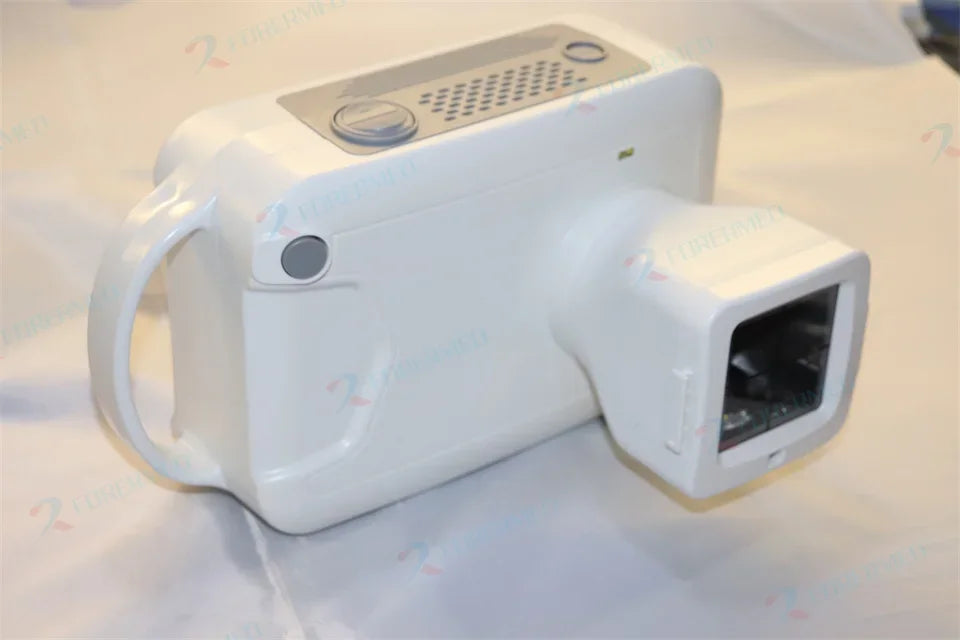

X-ray tube
|
Model
|
C.E.I OX/70-3
|
|
|
|
Inherent filter
|
0.5mm AL
|
|
|
|
Focus point
|
0.3 * 0.3mm
|
|
|
Dimension
|
|
285mm x 265mm x 168mm 锛坙ength×width×height锛�
|
|
|
Weight
|
|
3.2kg±5%
|
|
|

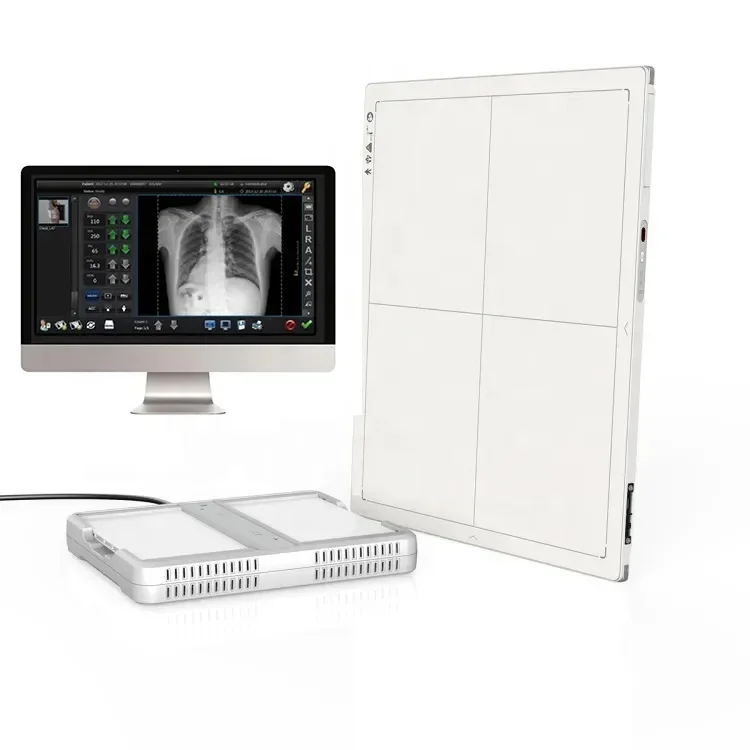

Detector parameter
|
|
|
|
|
||||
|
Parameters
|
|
Specifications
|
|
|
||||
|
Detector model
|
|
BW-1717W
|
BW-1717X
|
BW-1012W
|
||||
|
Dimension锛坢m锛�
|
|
460×460×15
|
460×460×15
|
282×333×15
|
||||
|
Effective imaging area锛坢m锛�
|
|
433.5×433.5
|
426.7×426.7
|
244×307
|
||||
|
Pixel matrix锛坧ixels锛�
|
|
2816×2816
|
4267×4267
|
2048×2560
|
||||
|
Pixel size
|
|
154um
|
100um
|
120um
|
||||
|
Spatial resolution
|
|
3.1 Lp/mm
|
4.0 Lp/mm
|
3.7 Lp/mm
|
||||
|
Quantum detection efficiency |
0.5 lp/mm
|
60%
|
65.8%
|
60%
|
||||
|
|
1.0 lp/mm
|
55%
|
55.9%
|
55%
|
||||
|
|
1.5 lp/mm
|
45%
|
47.5%
|
45%
|
||||
|
|
2.0 lp/mm
|
40%
|
40.4%
|
40%
|
||||
|
|
2.5 lp/mm
|
30%
|
34.3%
|
30%
|
||||
|
Battery
|
|
14.8V锛宑apacity 3260mAh
|
11.55V, capacity 4900mAh
|
14.8V锛宑apacity 3260mAh
|
||||
|
Power
|
|
Max. 36 VA
|
Max.40 VA
|
Max. 38 VA
|
||||
|
Weight
|
|
About 4.1kg
|
3.3kg
|
2.3kg
|
||||
* Stable i Sync+ Automatic Exposure Detection(AED)

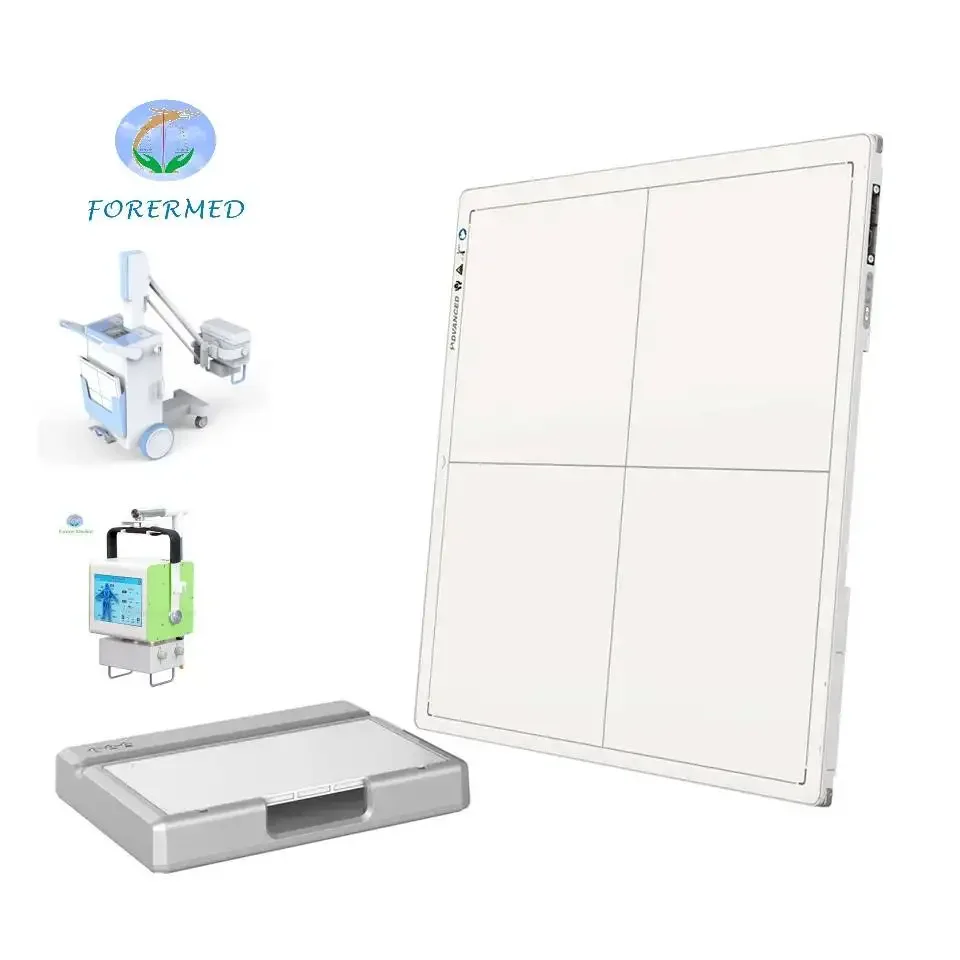

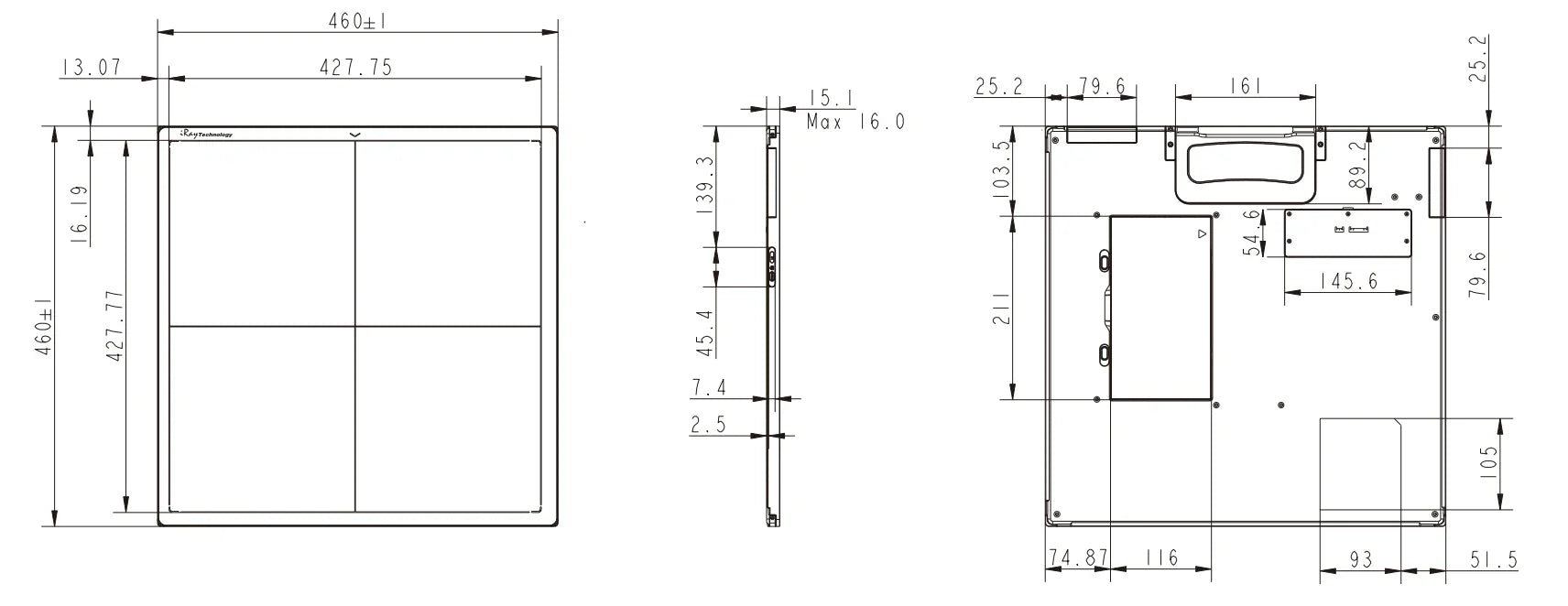

Mars 1717V is a smart 17x17-inch wireless. cassette-sized FPD for radiographic imaging. It features reliable AED, dependable
wireless performance, and a long battery life.
The Mars 1717V supports a fast work flow and is the optimal choice for both retrofit and new DR system solutions.
|
Technical Specifications
|
Mars 1717V
|
|
Detector Technology
|
Amorphous Silicon
|
|
Scintillator
|
CSI
|
|
Active Area (inch)
|
17×17
|
|
Pixel Matrix
|
3072×3072
|
|
Pixel Pitch (pm)
|
139
|
|
Spatial Resolution (lp/mm)
|
3.6
|
|
AD Conversion (bit)
|
16
|
|
Battery Autonomy (h)
|
5
|
|
WIFI
|
2.4G and 5G, IEEE802.11 a/b/g/n/ac
|
|
Trigger Mode
|
AED (Optional) / Software
|
|
Internal Image Storage
|
200 full size images
|
|
Full Image Time (s)
|
5
|
|
Dimensions (mm)
|
460×460×15
|
|
Weight (kg)
|
4.6
|
|
Static Loading
|
150 kg Uniformly
|
|
Center Loading
|
135kg@4cm
|
|
Ingress Protection
|
IPX1
|
|
Operating Temperature (°C)
|
5~35
|
|
Storage & Transport Temperature with Package (C)
|
-20~55
|
|
Operating Humidity (% RH)
|
10~90(Non-Condensing)
|
|
Storage & Transport Humidity with Package (% RH)
|
5~95 (Non-Condensing)
|
