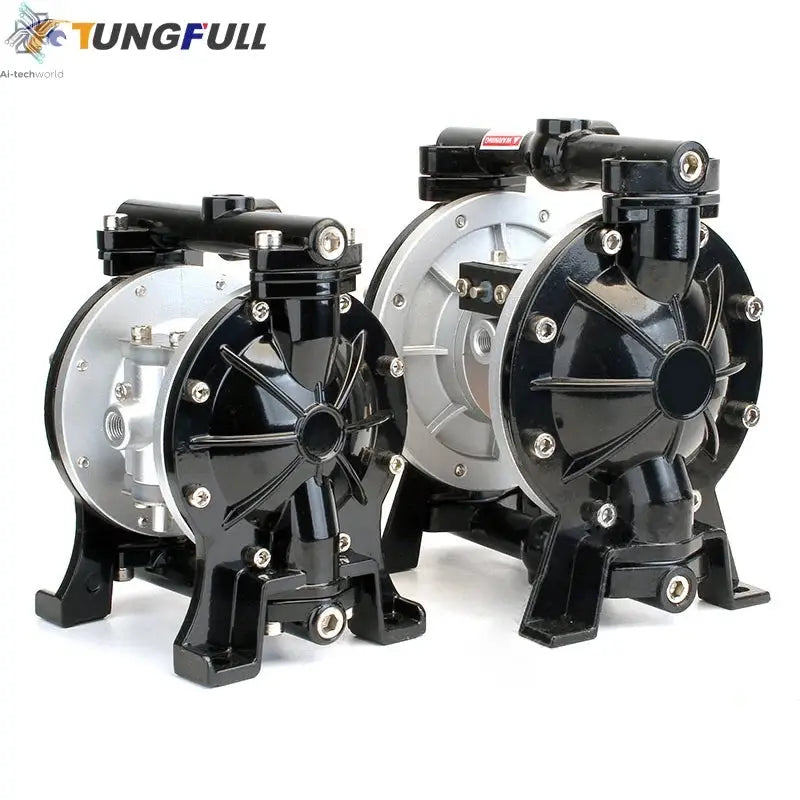

A-15 Mini Air Operated Paint Pump Double Diaphragm Pressure-stabilized Diaphragm pump Mini Pneumatic Diaphragm Paint Pumps
A-15 Mini Air Operated Paint Pump Double Diaphragm Pressure-stabilized Diaphragm pump Mini Pneumatic Diaphragm Paint Pumps
- FREE SHIPPING
Currently 75 items are in stock!
Order in & get it by
Couldn't load pickup availability
Description
Description
Explore the Features and Advantages of the Mini Air Operated Paint Pump
SPECIFICATIONS
Brand Name: NONE
Certification: NONE
Choice: yes
Fuel: Gasoline
High-concerned chemical: None
Origin: China Mainland
Power (W): Pneumatic
Power Source: Pneumatic
Structure: Diaphragm Pump
Tpe: Paint, solvents, ink
semi_Choice: yes

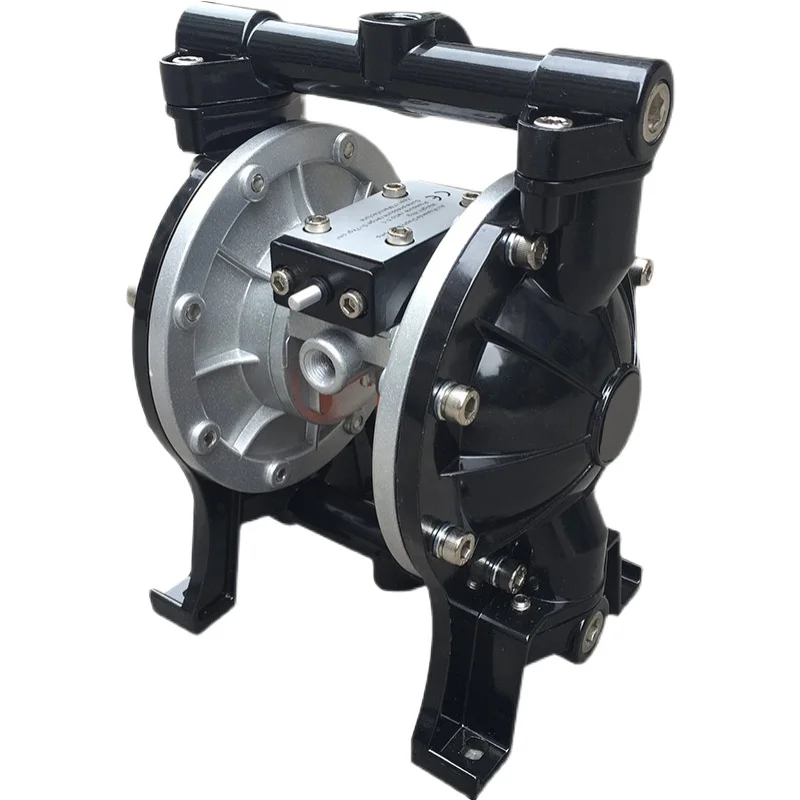

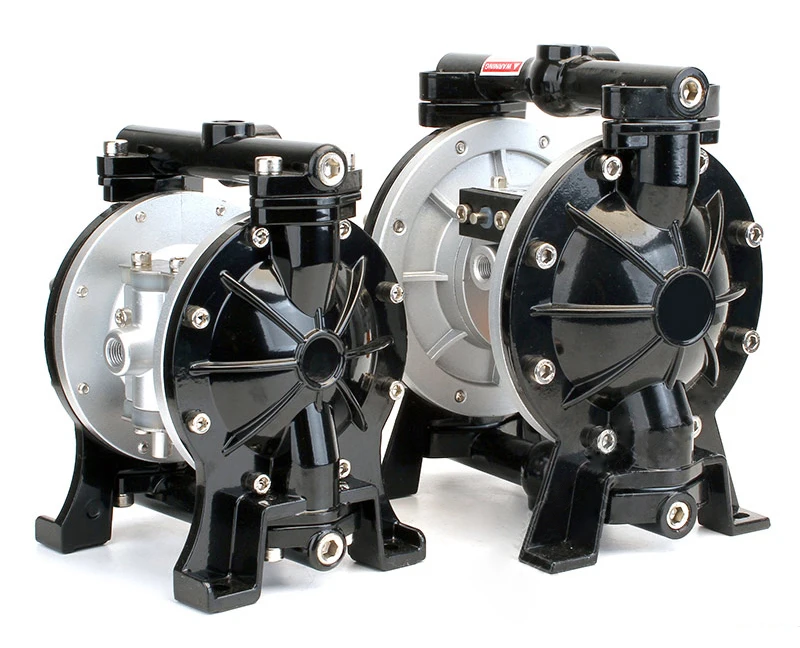

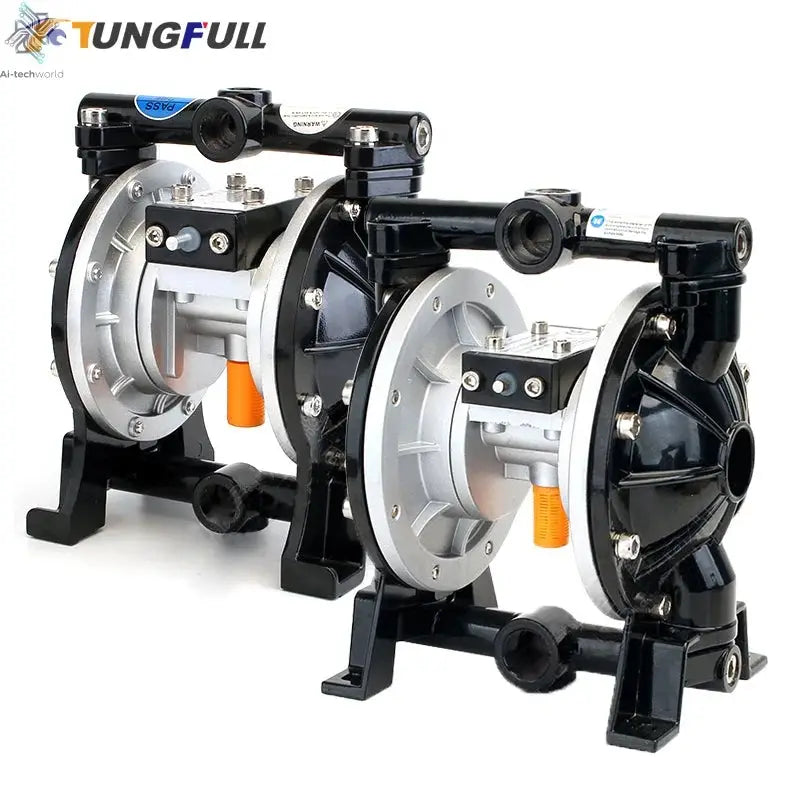

Pneumatic Double Diaphragm Pump Bare Pump
High suction, corrosion resistance, stainless steel shaft, Teflon diaphragm

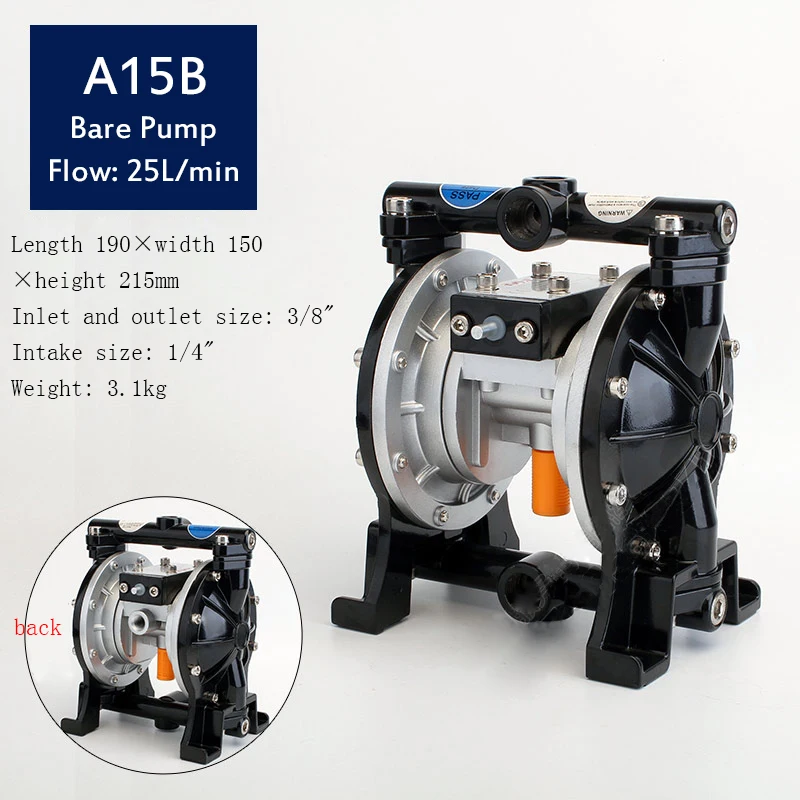

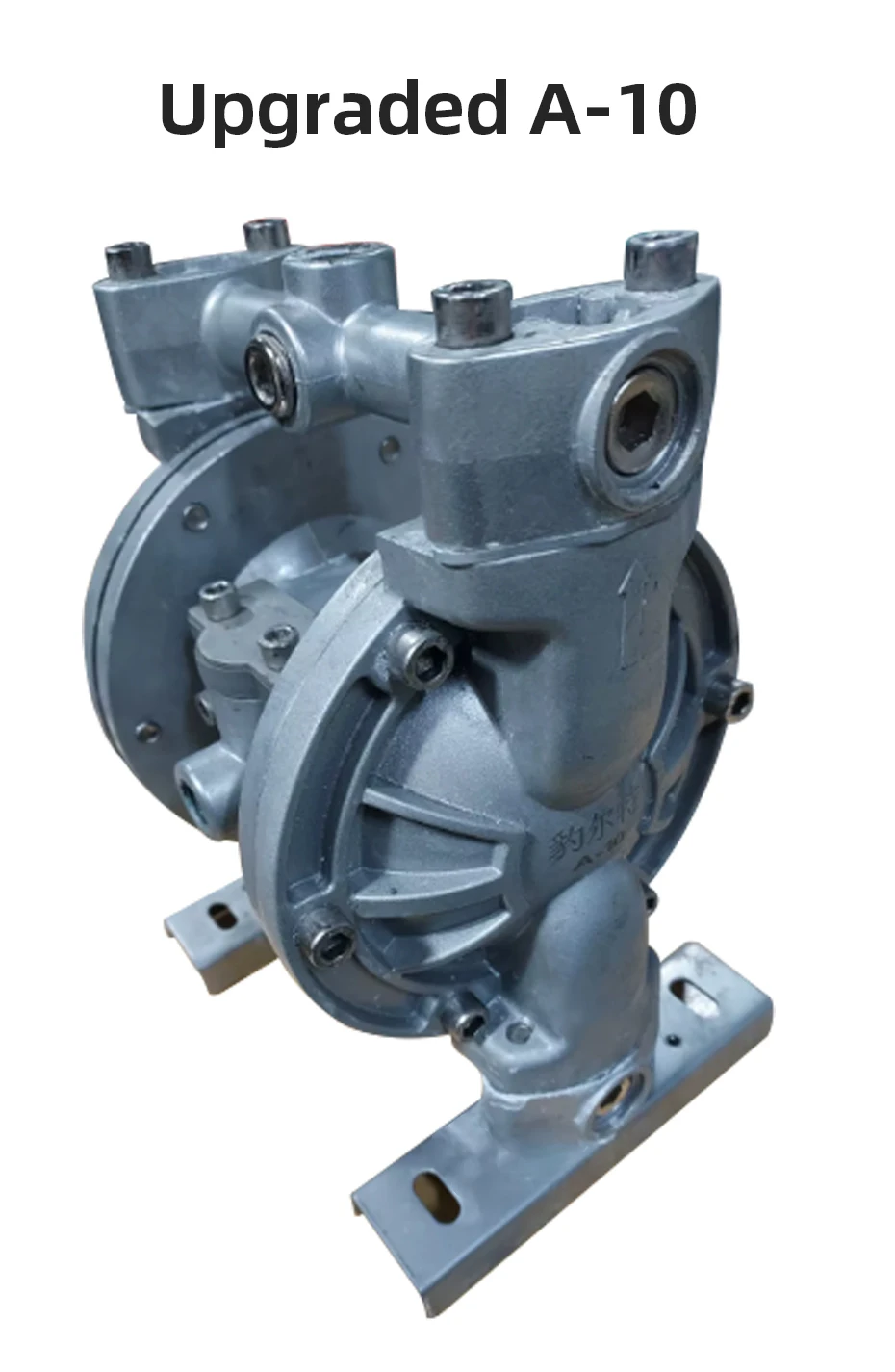

Model:A-10/A-15/A-20/A-26
Caliber:
3/8 inch(A-10/A-15)
1/2inch (A-20)
3/4inch (A-26)
Pressure ratio:1:1
Air pressure:0.1-0.8 (Mpa)
Maximum flow:

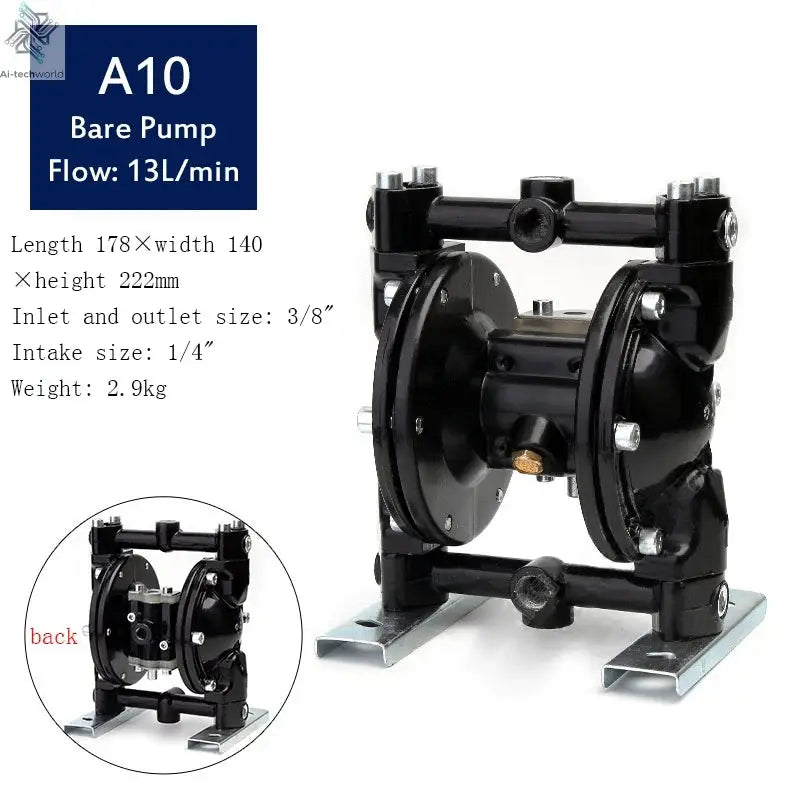

A-10: 0-13L/min

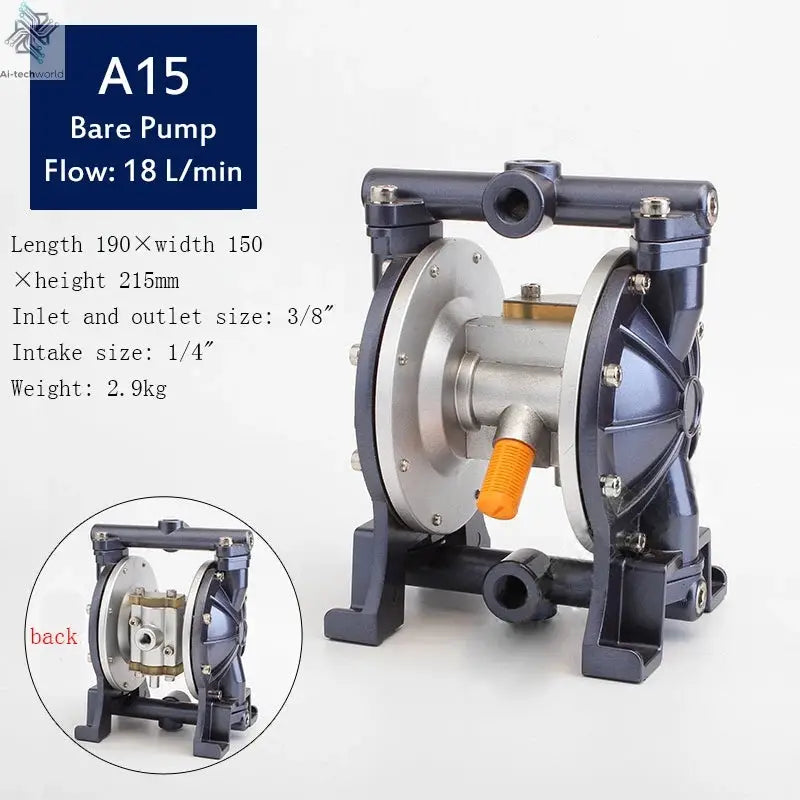

A-15:0-36L/min

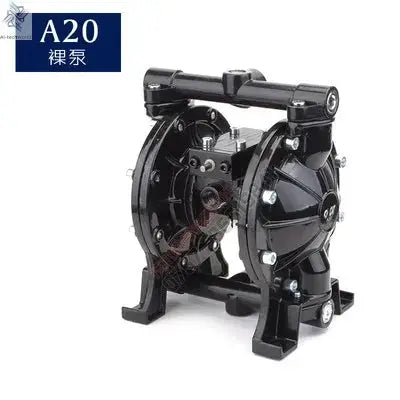

A-20:0-48L/min

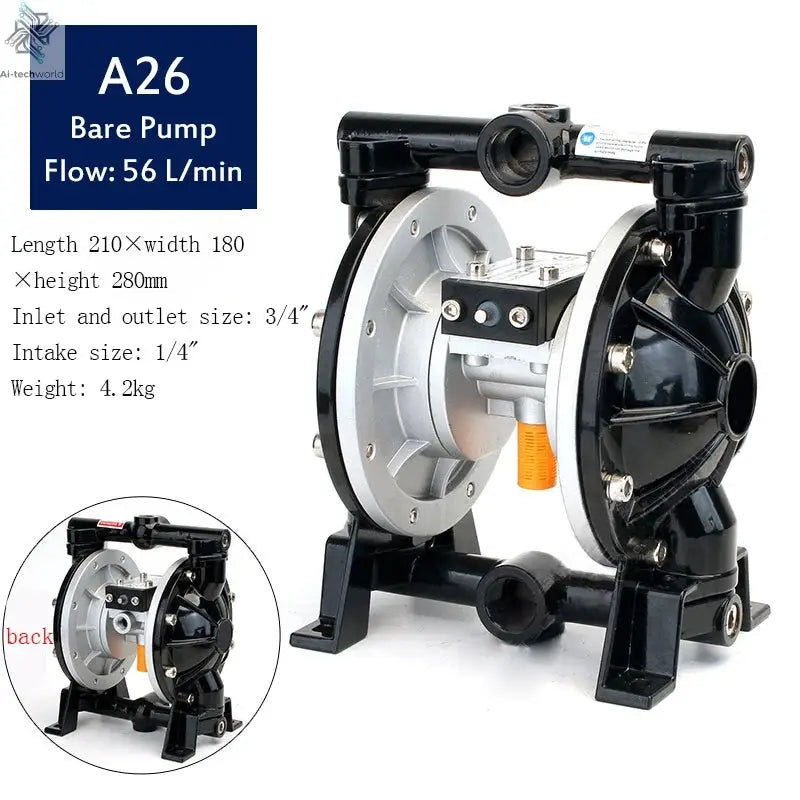

A-26:0-56L/min
Air intake interface: 1/4 (NPT)
Suction distance: 5m
Lift:
A-10: 0-30m(98 ft)
A-15:0-50m(164 ft)
A-20:0-50m(164 ft)
A-26:0-60m(196 ft)
Feature:
1.No-stop ventilation valve, no need to add lubricant.
2.Integrated installation design ,user-friendly and reasonable configuration
3.more convenient maintenance ,fewer wearing parts
4.suitable for working in harsh environments.
5.No need to change paint during painting, high work efficiency.
Imported PTFE diaphragm can be sprayed dry. , and not easily damaged
The main purpose
1. Pump paint, gum, and pigments
2. Adhesives and glues, all types can be pumped
3. Various tiles, porcelain, bricks and pottery glazes
4. Pump various emulsions and fillers
5. Pump all kinds of sewage
6. Use a pump to clean out the sewage in the cabin of the cruise ship barge.
7. Pumping water in mines, tunnels, tunnels, mineral processing, slag, pumping cement grout and mortar
8. Various rubber pulps
9. Various abrasives, corrosives, petroleum, etc., cleaning grease and general containers
10. Various highly toxic, flammable and volatile liquids
11. Various strong alkali, strong acid, strong corrosive and other liquids
12. Various high temperature liquids, can withstand 150 degrees Celsius
13. As a front-stage pressure supply device for various solid-liquid separation equipment
Compact Design for Space-Saving Efficiency
The mini air operated paint pump is engineered with a compact and lightweight design, making it ideal for small to medium-scale painting operations where space is limited. Its reduced size does not compromise performance; instead, it facilitates easy installation and portability across different job sites. This pump is perfect for precise paint transfer in tight spaces, ensuring operators can maneuver the system without difficulty while maintaining high productivity levels.
Double Diaphragm Technology for Pressure Stability
Equipped with advanced double diaphragm technology, the pump delivers exceptional pressure stability during operation. This design reduces pulsation and ensures a continuous, smooth flow of paint, which is critical for achieving uniform coatings. The pressure-stabilized diaphragms protect the pump’s internal components, extend service life, and minimize maintenance needs, making the A-15 model highly reliable for rigorous painting applications.
Durable Materials and Pneumatic Operation
Constructed from robust materials that resist corrosion and chemical wear, the mini pneumatic diaphragm paint pump withstands the harsh conditions associated with paint and solvent handling. Additionally, its air-operated mechanism eliminates the need for electrical power, improving safety in flammable environments. This pneumatic operation provides consistent power and straightforward control, allowing operators to adjust flow rates easily, increasing precision and reducing material waste.
