SPECIFICATIONS

Brand Name: NoEnName_Null,Ho- Link

Certification: CE RoHS FCC

Fiber connector: 3K.93C.Y

Fiber type: 9/125um single-mode

High-concerned chemical: None

Item Type: cable

Model Number: EFP-HFV93C

Optical module parameter: Single fiber single mode 10km

Origin: Mainland China

Warranty Time: 3 years

Wavelength: 1270/1330/1470/1490nm

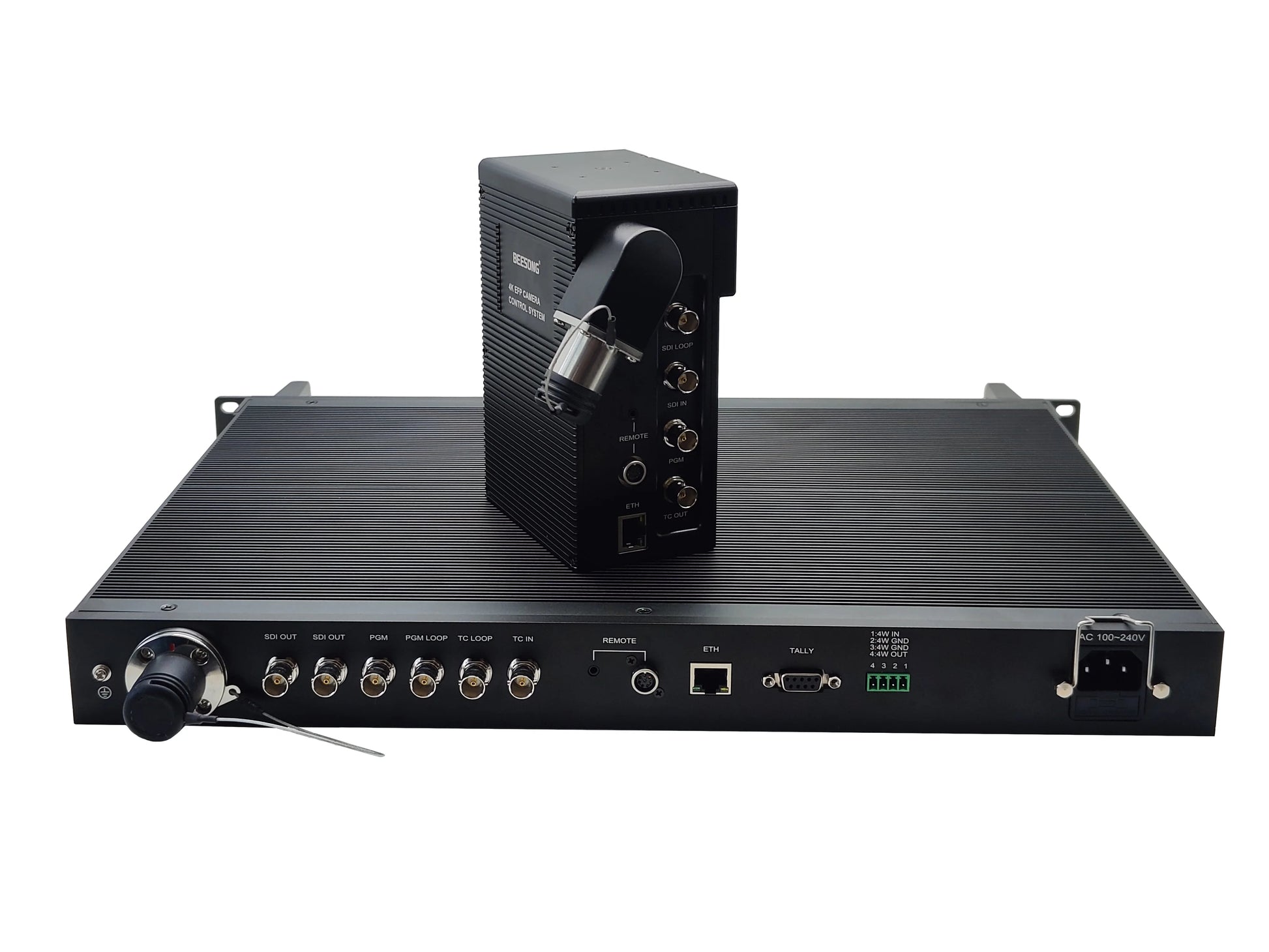

12G Fiber Optic SDI Transmission Remote Control System, with Optoelectronics Hybrid Transmit Signal and Power Supply, for Outside Broadcast, Studio, and Cinema Applications

Contact Lari directly with any requirements — there may be a surprise!

WhatsApp/Wechat: +86 158 7552 0146

Email: sales01@holinktech.com

Overview

Technical Characteristics

Supports ST-2082-1 (12G), ST-2081-1 (6G), ST-424 (3G), ST-292 (HD) and ST-259 (SD); compatible with
DVB-ASI and AES10 (MADI).

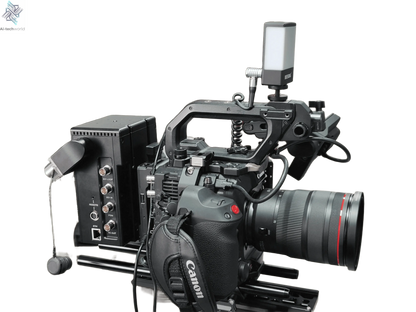

Pictures

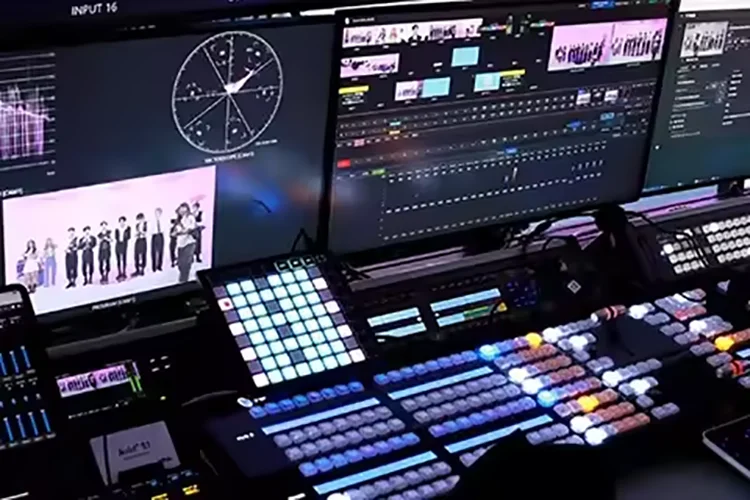

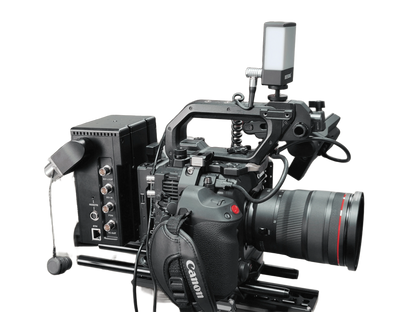

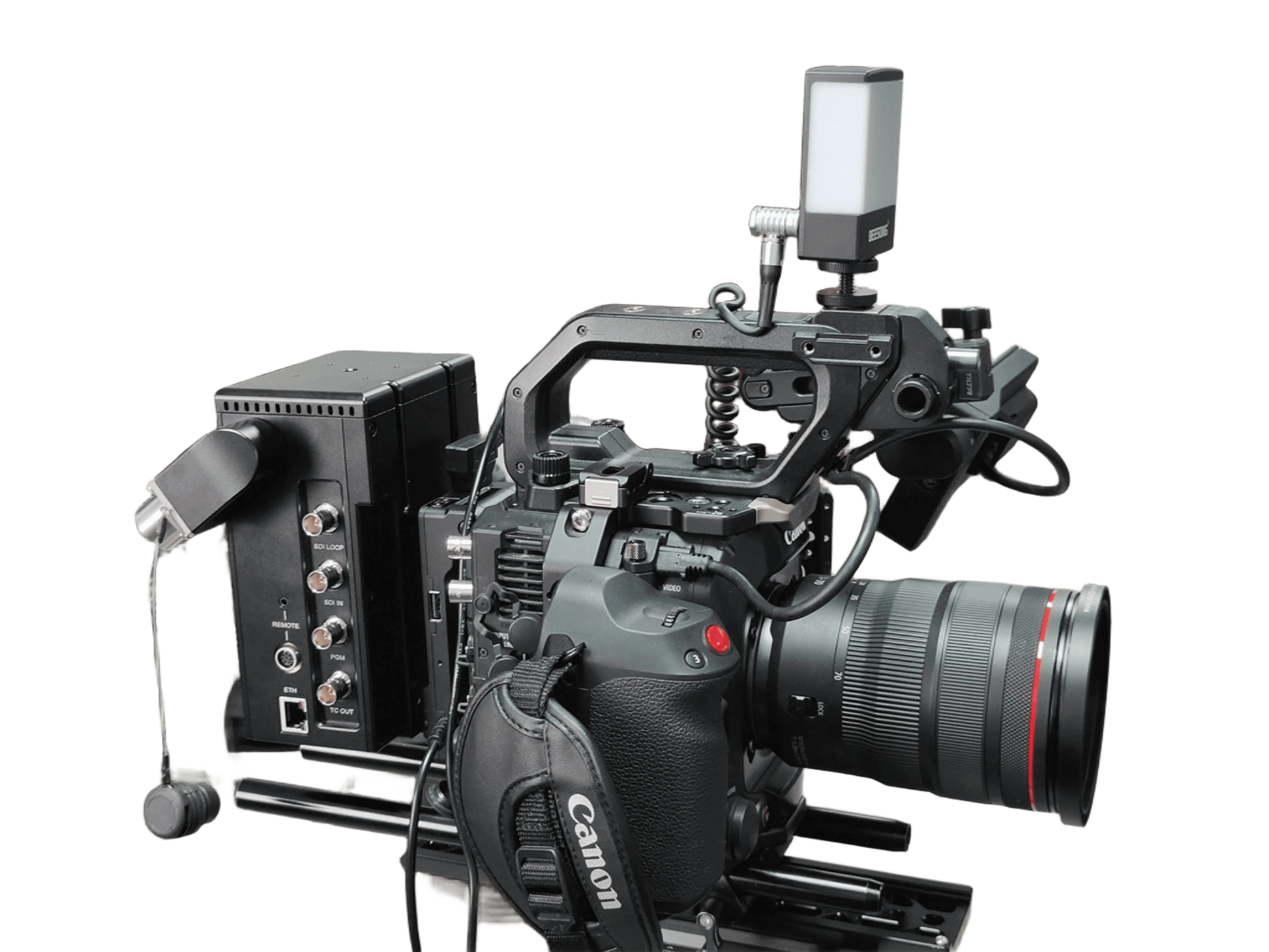

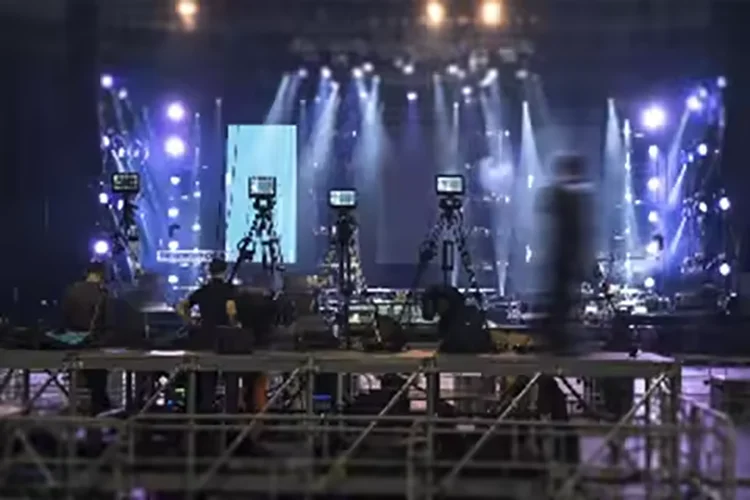

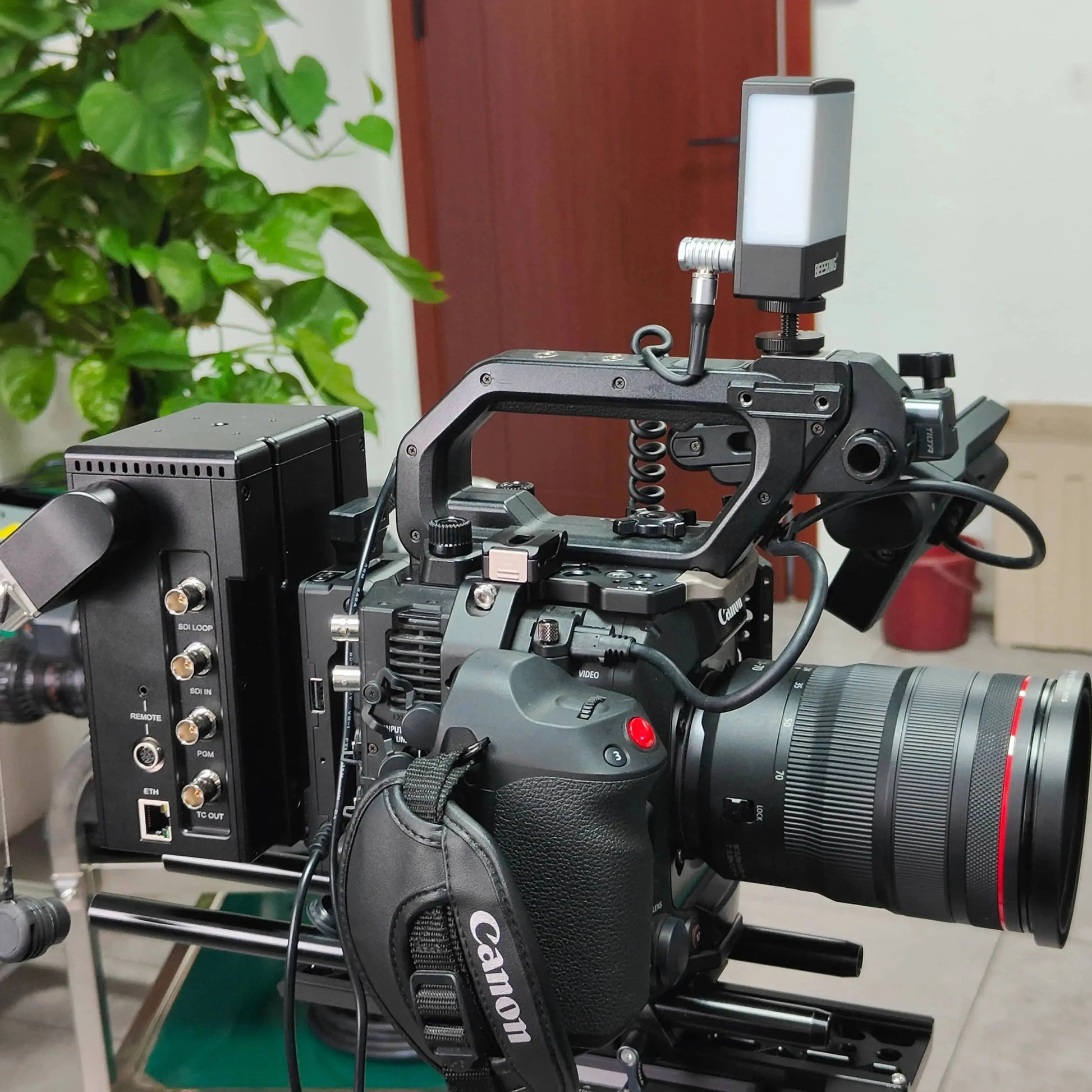

Application

1. SMPTE compatible with serial digital interface

2. UHDTV/4K/8K/HDTV/SDTV video

3. IP media gateway

4. Digital video processing and editing

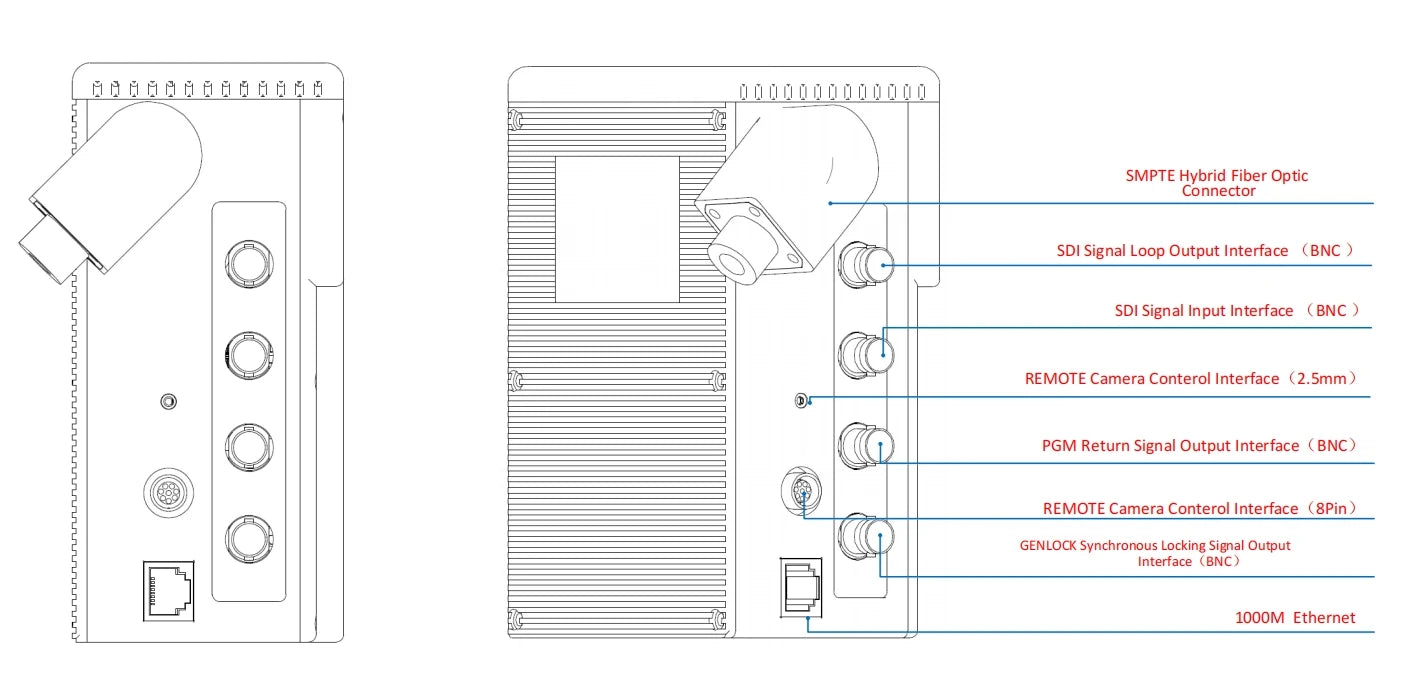

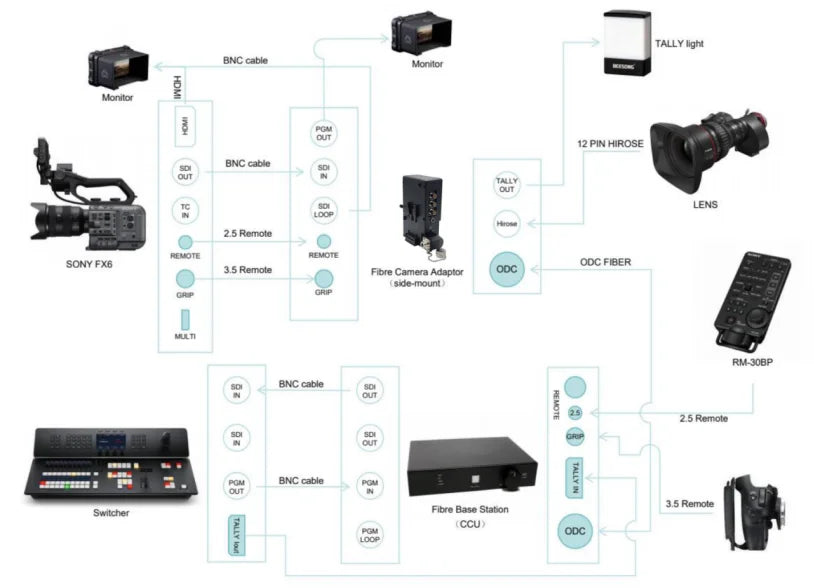

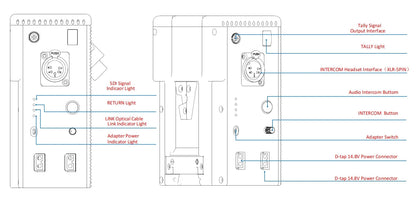

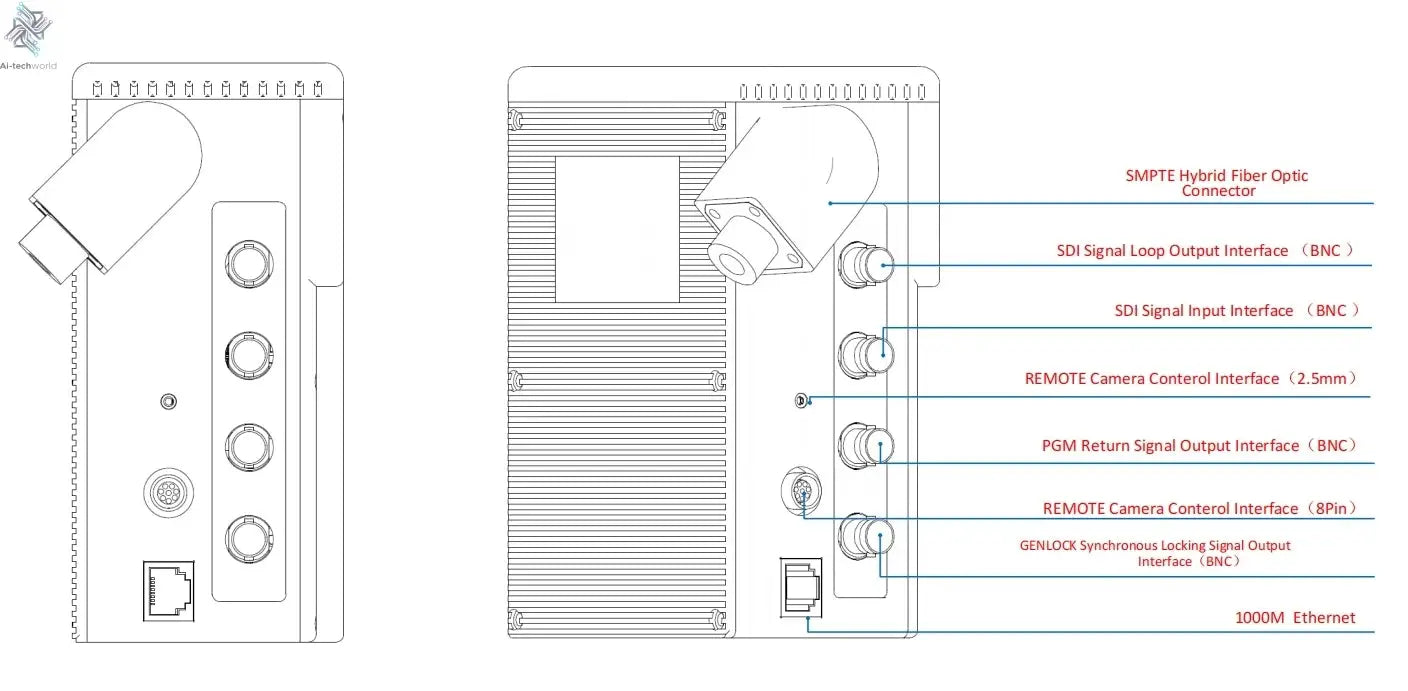

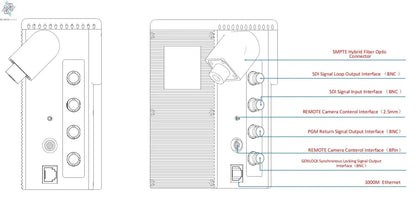

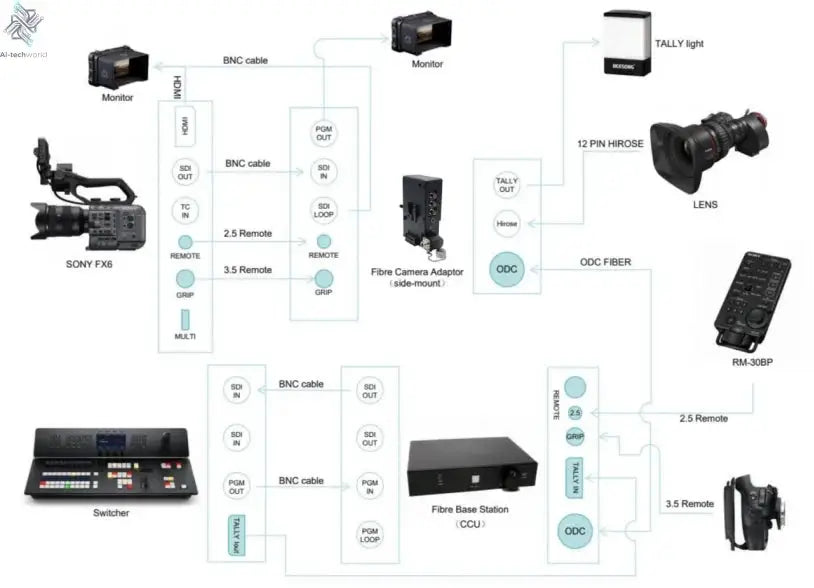

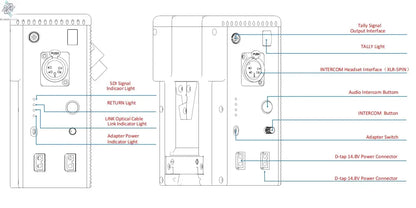

Connection Diagram

Reminder

1. It is recommended to use the short optical fiber link for the first time to ensure that all the functions of the equipment are normal, and then do long-distance transmission

2. The signal of the fiber optic converter can be output to the power amplifier, but the audio source of the power amplifier can not output the audio source signal to the fiber optic converter, otherwise the equipment will be burned

Troubleshooting of indicator

1: Power indicator is abnormal (POWER)

Answer: Check whether the power adapter meets the equipment requirements or the power adapter fails

Whether the socket is not tight or loose

2: Fiber indicator is abnormal (FIBER)

Answer: Check whether the optical fiber interface is loose and not plugged in

Check whether the optical fiber is too attenuated

3: Video indicator is abnormal  (VIDEO)

Answer: Check the signal source

Replace the video cable

4: Data indicator is abnormal (DATA)

Answer: Check the COM port, whether the baud rate is consistent

Check whether the serial port cable is connected backward

Attention

Lightning protection, static electricity and grounding:

It is recommended that when install the device, consideration should be given to the impact of grounding by lightning, and take prevention measures. Strong static electricity will damage the optical device and data chip in the equipment. It is recommended that when plug/unplug the data port of the optical converter, please disconnect the power supply of the optical converter first.

Fiber and optical components:

Be careful when plugging the optical fiber as optical components of the optical converter is very fragile, and it should avoid causingdamage to the optical components. It should be noted that the light source produced by the optical components of the optical converter will be harmful to eyes, so do not have direct eye contactwith the optical components of optical converter. If you need to detect the optical power of the optical converter, please use the optical power meter.

Equipment and installation procedures:

1.Optical fiber installation: please carefully insert the optical fiber into the optical fiber interface of the optical terminal after confirming that the optical fiber link meets the installation requirements.

2.Equipment installation: The equipment can be distinguished between transmitter and receiver, and it is stated clearly on the label and printed on the chassis of the equipment.

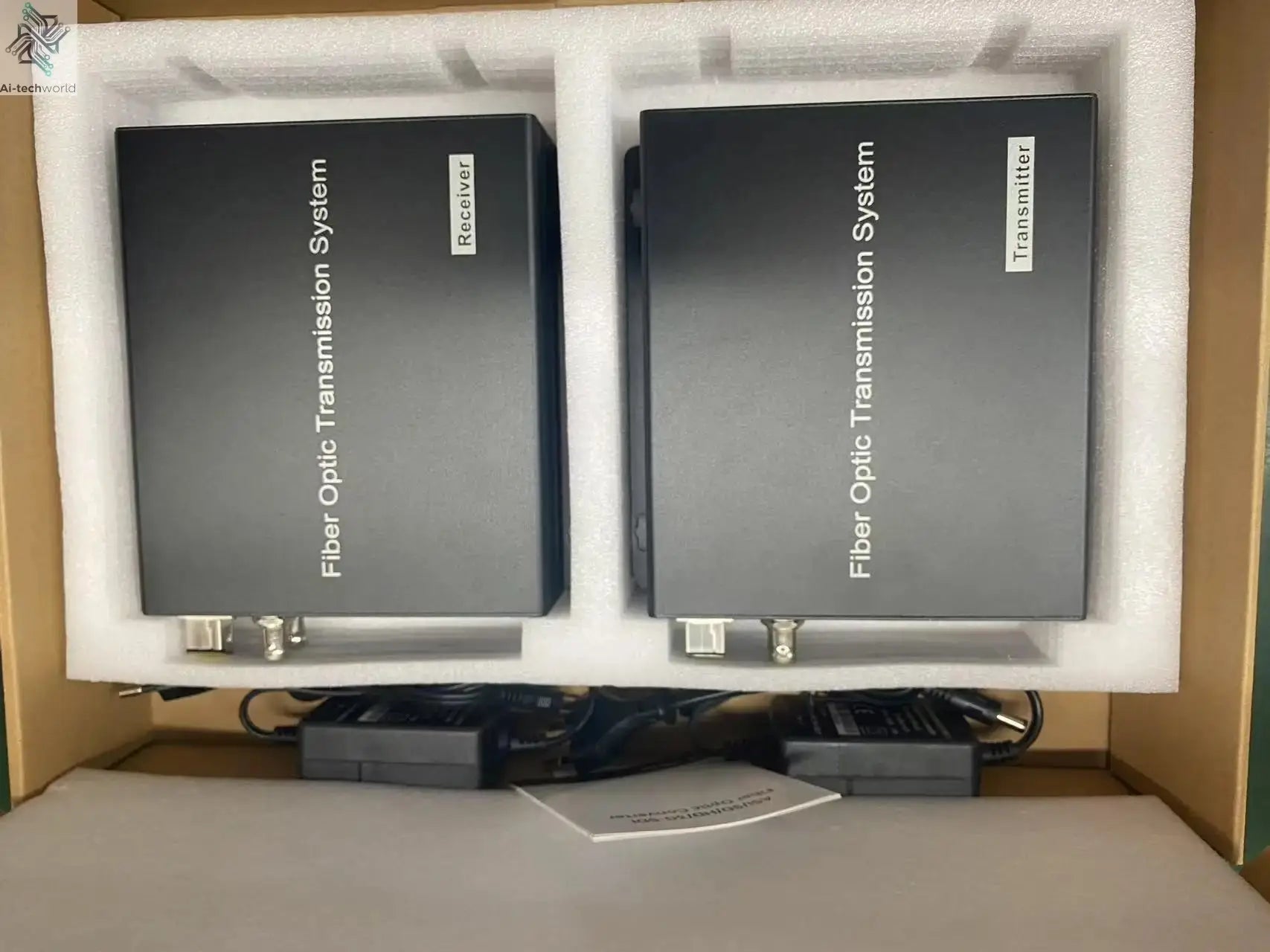

Package Reference

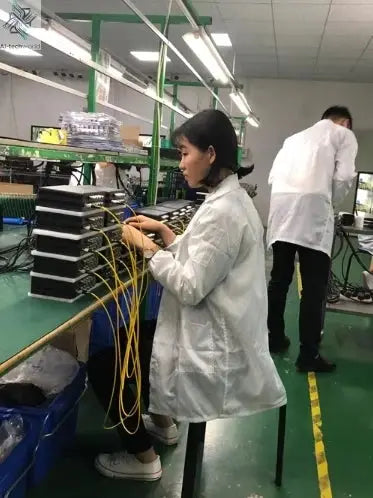

Production & Testing
