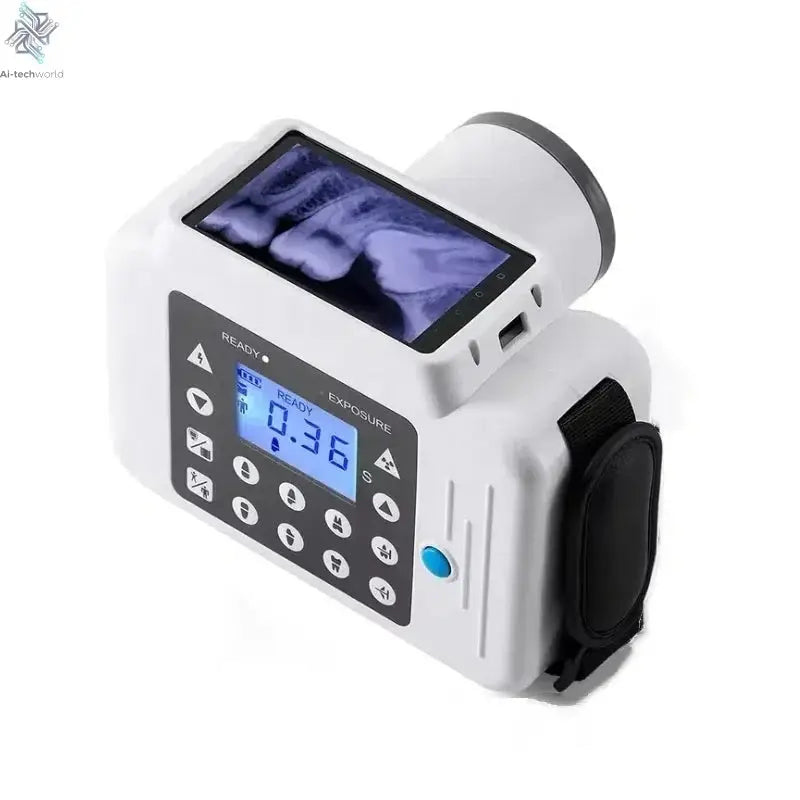

Ultralight Portable Dog Teeth Machine LCD Touch Screen Hand Held X Dental Unit Portatil Veterinary X-ray Sensor
Ultralight Portable Dog Teeth Machine LCD Touch Screen Hand Held X Dental Unit Portatil Veterinary X-ray Sensor
- FREE SHIPPING
Currently 15 items are in stock!
Order in & get it by
Couldn't load pickup availability
Description
Description
SPECIFICATIONS
After-sale Service: Online technical support
Application: Oral
Brand Name: NoEnName_Null,XingYue
Certification: CE
DIY Supplies: Electrical
Distance From Skin to Cone: 105mm
Electronic: No
Exposure Time: 0.1-2.0s
Feature: Wireless/Digital /High Frequency Inverter Handheld
Frequency: 30kHz
High-concerned chemical: None
Instrument classification: Class II, Class II
Origin: Mainland China
Place of Origin: Guangdong, China, Guangdong, China
Power Source: Electric
Product name: Dental X ray Machine With RVG Sensor
Quality Certification: ce
Shelf Life: 2 years
Tube Current: 2mA
Tube Focus: 0.8mmx0.8mm
Tube Voltage: 60kv
Warranty: 2 years
|
Product Description
|
|
1. Instant Image Display: When connected to our sensors, built-in screen shows X-ray images immediately after capture.
2. Independent Operation: Functions seamlessly even without the sensor connected.Compatible with digital sensors, X-ray film, and image plate
scanners.

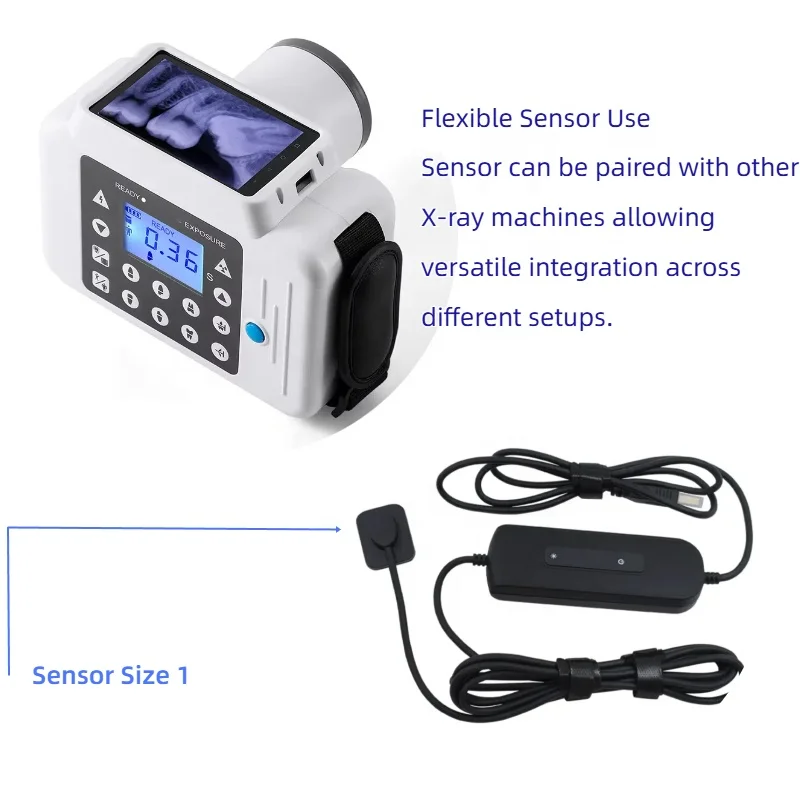

3. Flexible Sensor Use: Sensor can be paired with other X-ray machines, allowing versatile integration across different
setups.
4. Enhanced Workflow: Streamlined design improves efficiency and adapts to various clinical needs.
5. Effortless Image Transfer: Easily transfer captured images to a computer via USB or Bluetooth.
6. Sensor Options: You can choose one of the two
sensor models to suit different needs.

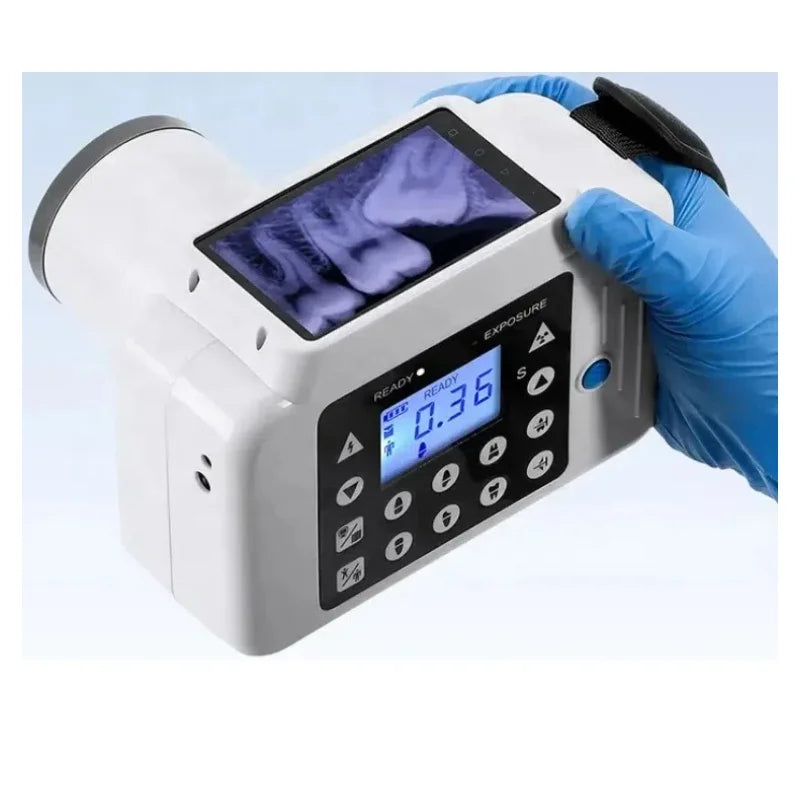

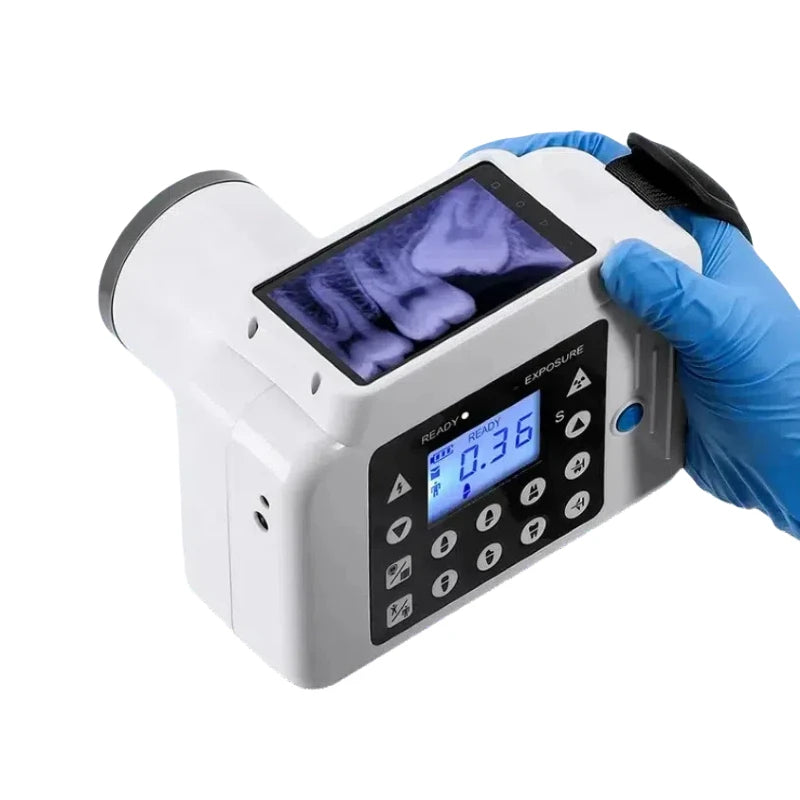

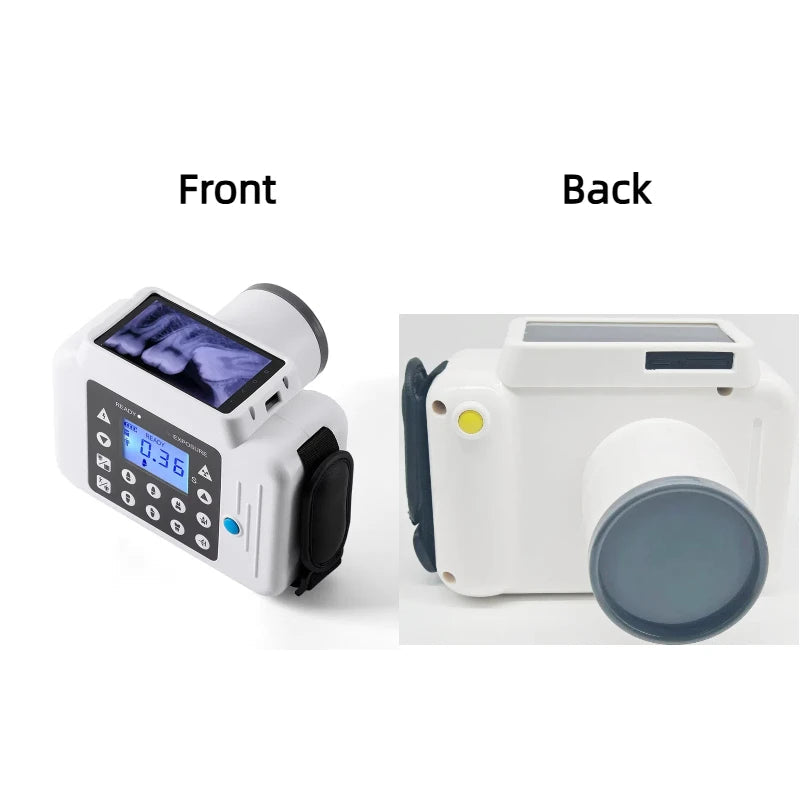

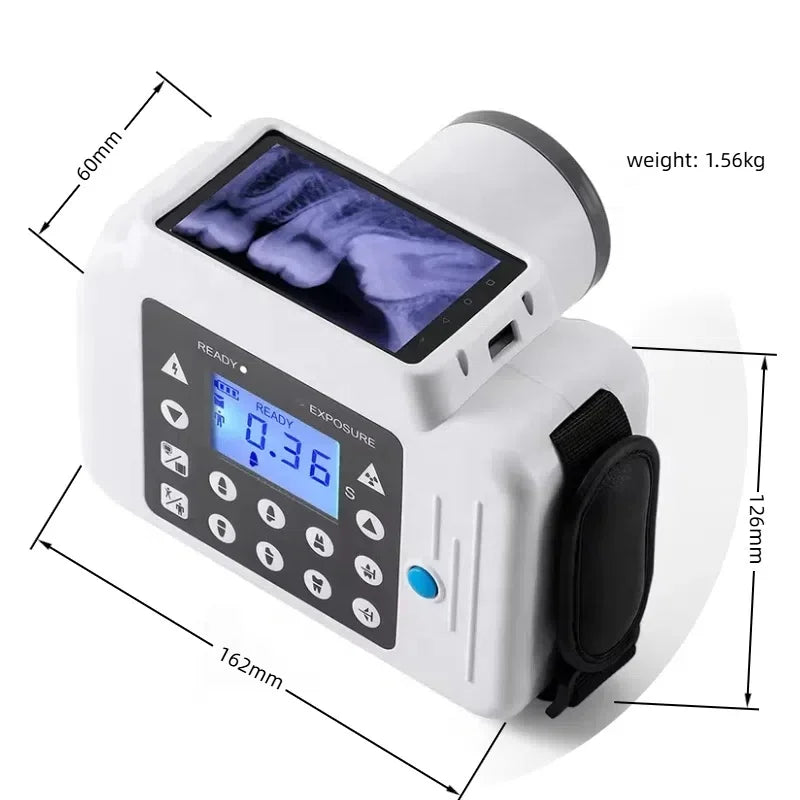

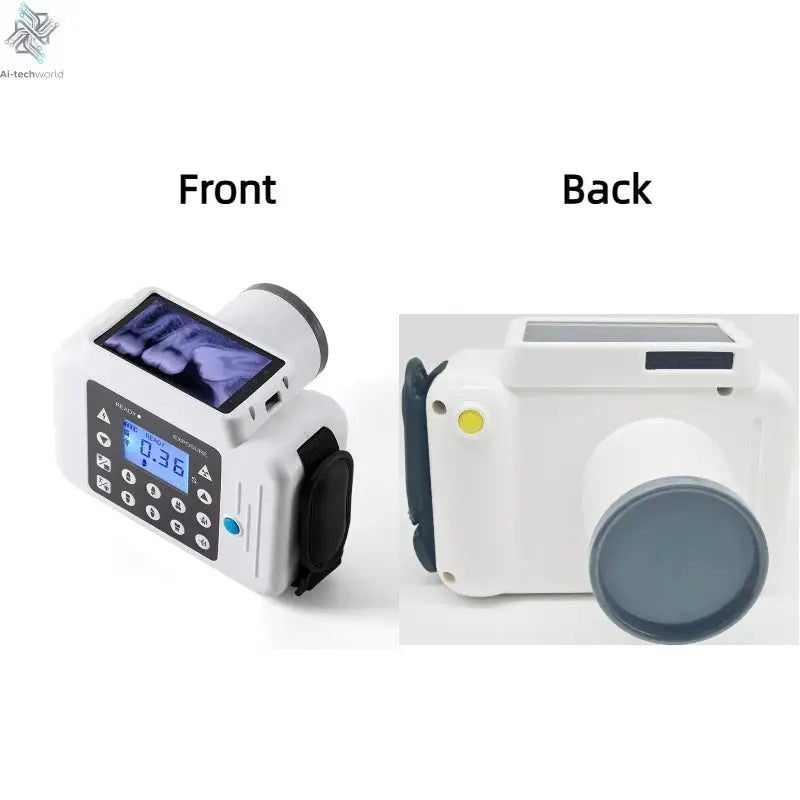

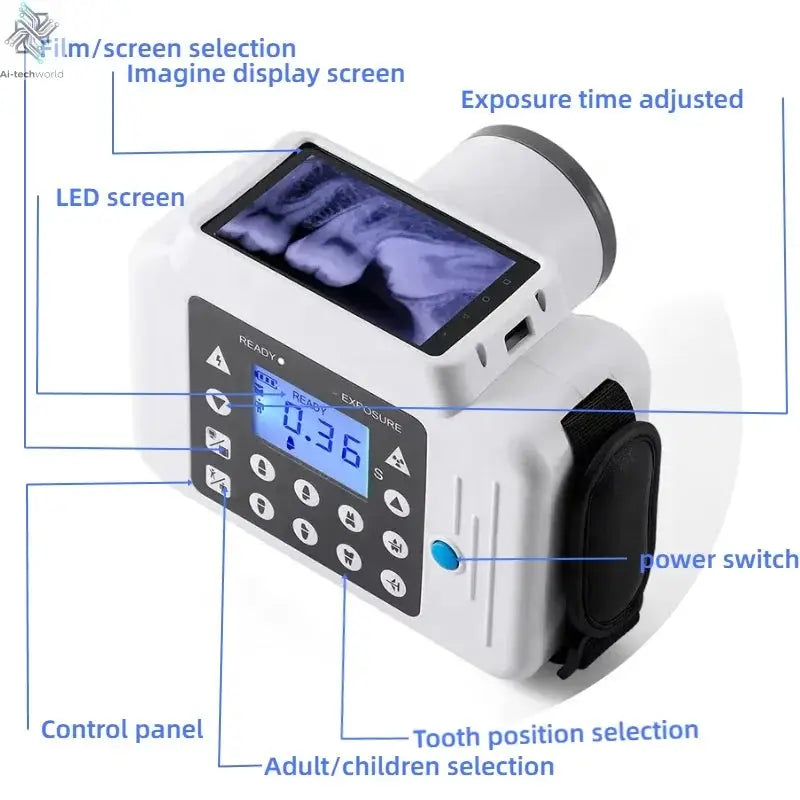

7. Handheld Design: Easy-to-grip, portable X-ray machine for convenient use and mobility.
8. The body is small, light in weight , and the radiation leakage is less than 20μgy/h.
9. It has excellent image quality, portable storage, save more space.
10. It uses high frequency and DC international power supply.
11. All of the components installed in the
central PC board concentrated. Shock,set-up, electron tubes, all of them are insulation vacuum, sealed stereotype protection.
12. Different exposure times are preset for adults and children.
13. The battery is durable, it can take about 4 hundred images after fully charged.
|
|

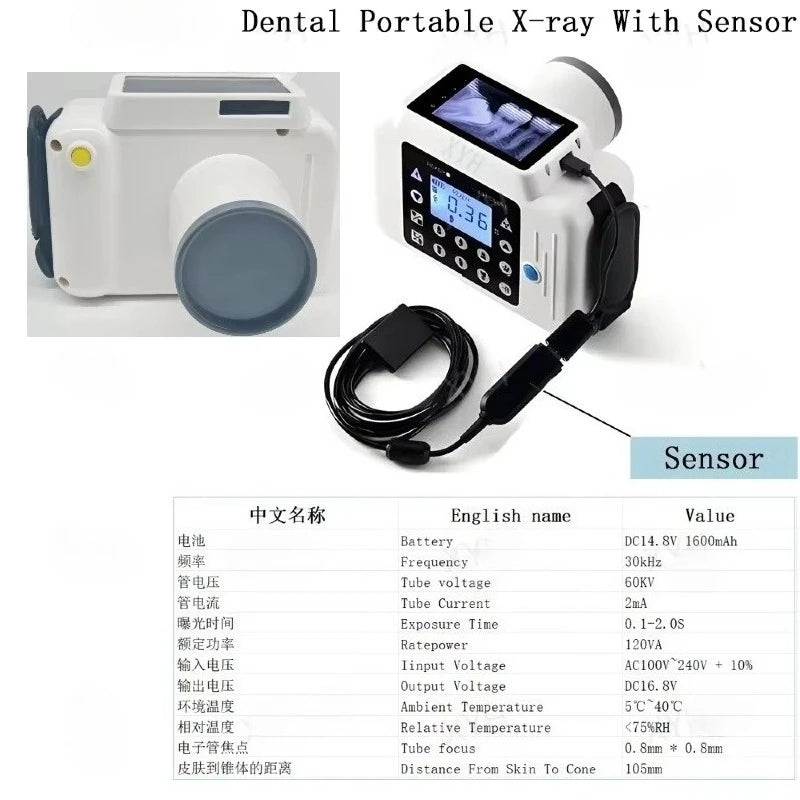

PORTABLE X-RAY UNIT TECHNICAL SPECIFICATIONS:
|
|
Tube voltage:
|
60KV
|
|
Tube current:
|
2mA
|
|
Exposure time:
|
0.1-2.0S
|
|
Frequency:
|
30kHz
|
|
Rate power:
|
120VA
|
|
Distance from skin to cone:
|
105mm
|
|
Tube focus:
|
0.8mmx0.8mm
|
|
Battery:
|
DC14.8V 1600mAh
|
|
Charger input voltage:
|
AC100V-240V+10%
|
|
Output voltage:
|
DC16.8V
|
|
Ambient temperature:
|
5ºC~40ºC
|
|
Relative temperature:
|
<75%RH
|
|
SENSOR TECHNICAL SPECIFICATIONS:
|
|
Model:
|
Size :1
|
Size: 2
|
|
Detector Technology:
|
APS CMOS
|
APS CMOS
|
|
Pixel Size:
|
18.5μm
|
18.5μm
|
|
Theoretical Resolution:
|
27lp/mm
|
27lp/mm
|
|
True Resolution:
|
CsI:≥14 lp/mm
|
CsI:≥14 lp/mm
|
|
Pixel Matrix:
|
1200*1600
|
1402*1888
|
|
Active Area(mm):
|
29.6´ 22.2
|
35´ 26
|
|
Mechanical Size(mm):
|
39´ 28.5´ 6
|
44.5´ 33.0´ 6
|
|
Data interface:
|
USB
|
USB
|
|
Digitization:
|
12/14/16 bit
|
12/14/16 bit
|
|
Imaging Time:
|
3-4s
|
3-4s
|
|
A: EasilyTransfer Captured lmagesto a Computer Via USB or Bluetooth

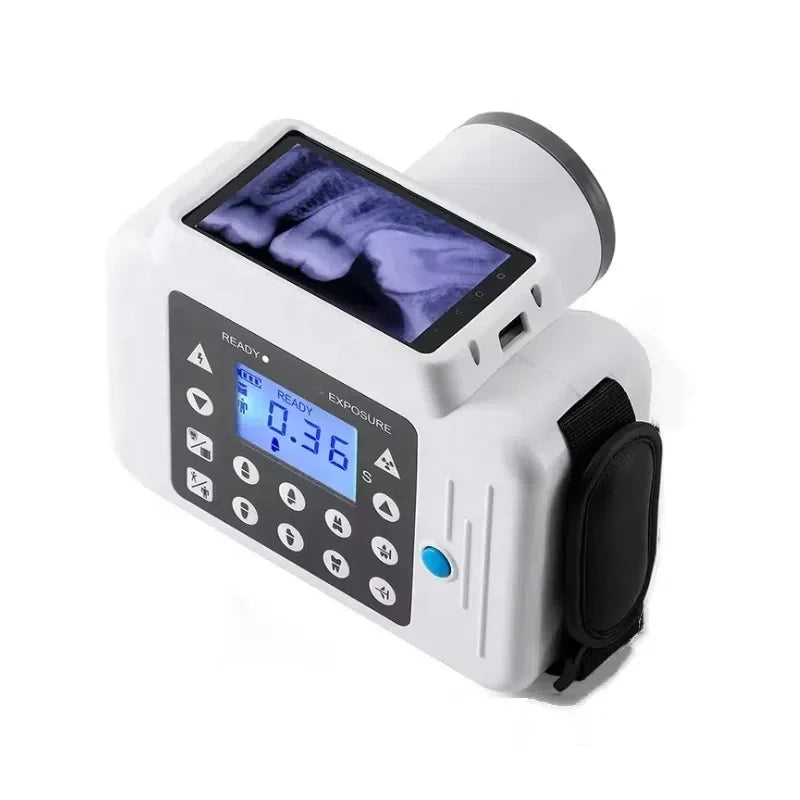

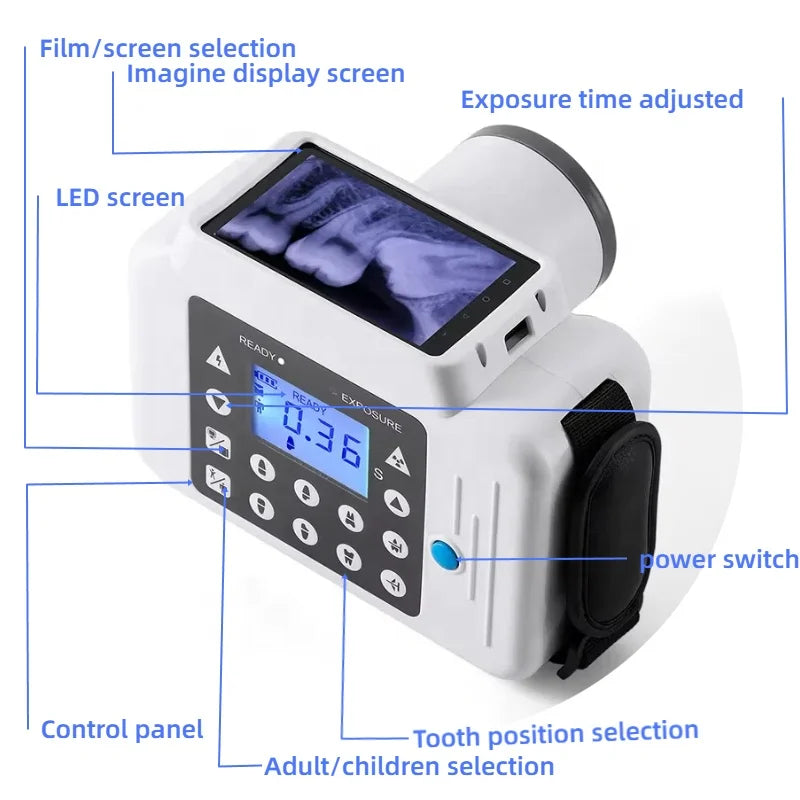

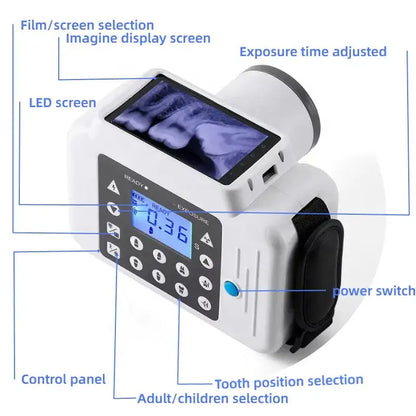

B: Built-in screen shows X-rayimagesimmediately after capture
C: The unit mainly suitable fororal pre-treatment diagnosis of internal organization structureand root depth and so
on,isindispensablein daily life clinic, especially for dentalimplant surgery.
|
|
PACKAGE :

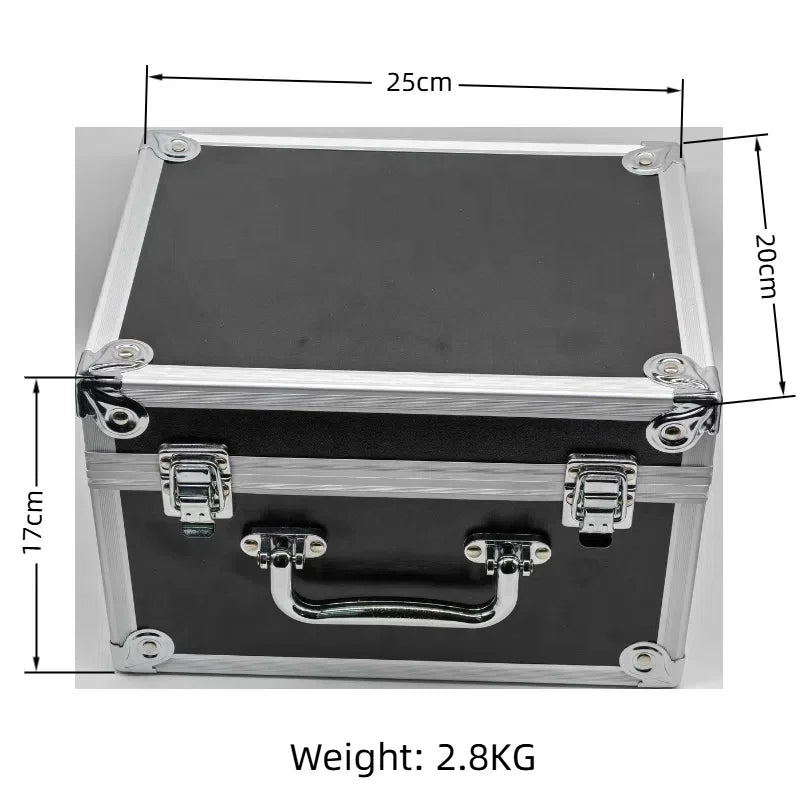

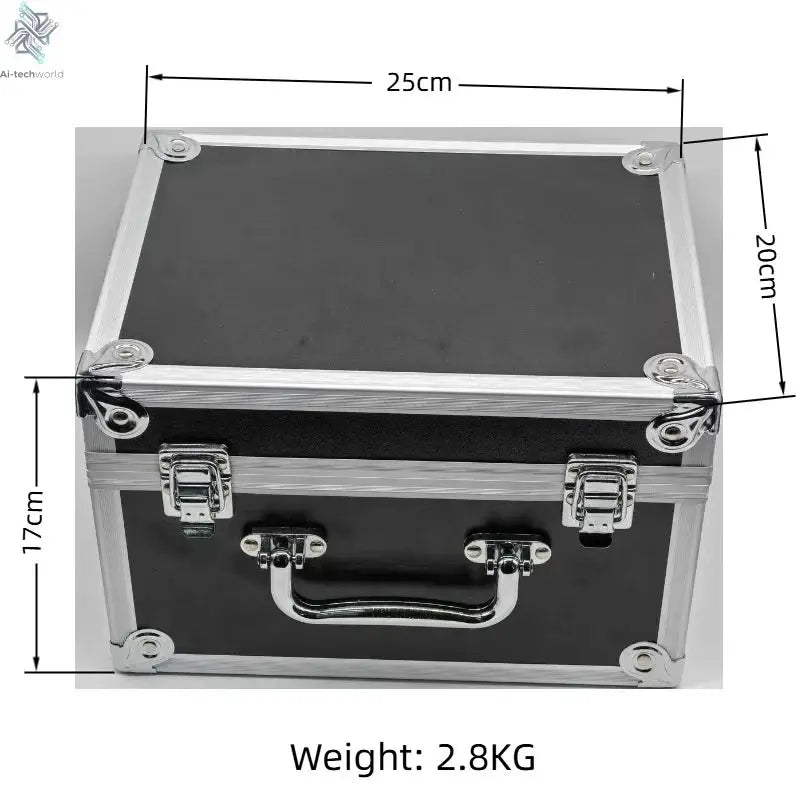

1. Aluminum box *1
2. X-ray machine *1
3. Sensor (with U disk) *1
4. Charger *1
5. Manual*1
6. Data cable*2
|
|
