SPECIFICATIONS

Brand Name: SCULPFUN

CE Certification: Yes

Certification: CE

Connection: WIFI (connected via TS1) / USB

File Format: Lightburn / LaserGRBL

High-concerned chemical: None

Input power: 350W

Laser power: 70W

Laser wavelength: 455nm

Machine size: 1154*1113*240mm

Machine weight: 15.2kg

Marking speed: 36000mm/min

Maximum Print Size: 830*800mm

Operating System: Android / iOS / Windows / macOS

Operating current: 14.6A

Operating voltage: DC24V

Origin: Mainland China

Precision: 0.1mm

Processing material type: wood, leather, acrylic, stone, ceramics, glass, paper, etc.

Spot size: 0.15*0.12mm

Wireless Connectivity: None

Dear customer, thank you for choose our store, before you place order, please note that this product maybe need to clear the customs by yourself, we will try our best to assist you in completing the customs clearance of the parcel.

Main Features:

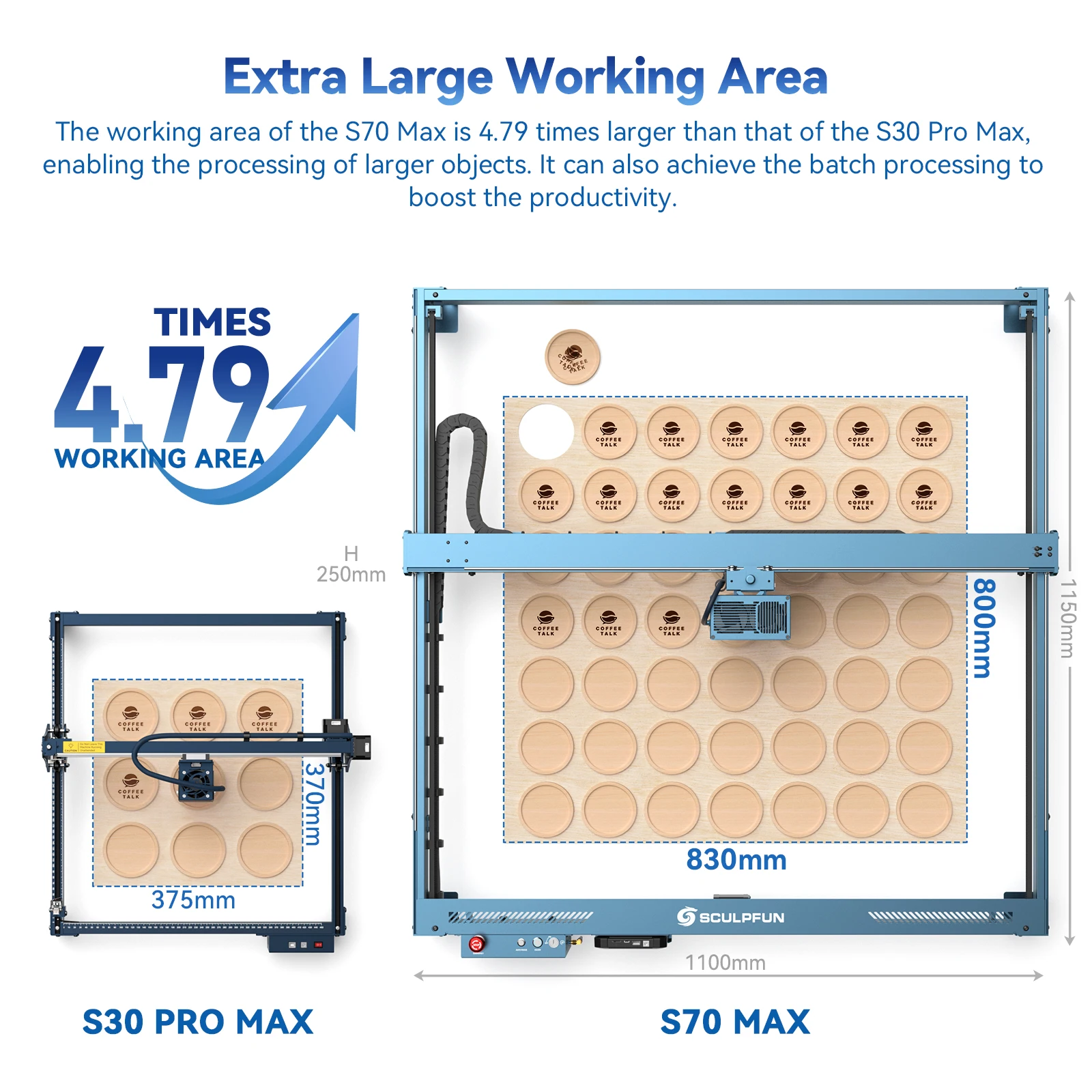

1. 830*800 Extra Large Working Area:

Featuring a frame placement area size measuring 980mm×1000mm, the Sculpfun S70 Max is perfect for accommodating super large materials. Its extra large working area of 830*800mm enables the processing of larger objects, catering to diverse needs. In addition, the maximum marking speed can reach up to 36000mm/min, which makes it easy to process large area cutting and batch engraving, ideal for studios, enthusiasts as well as professionals.

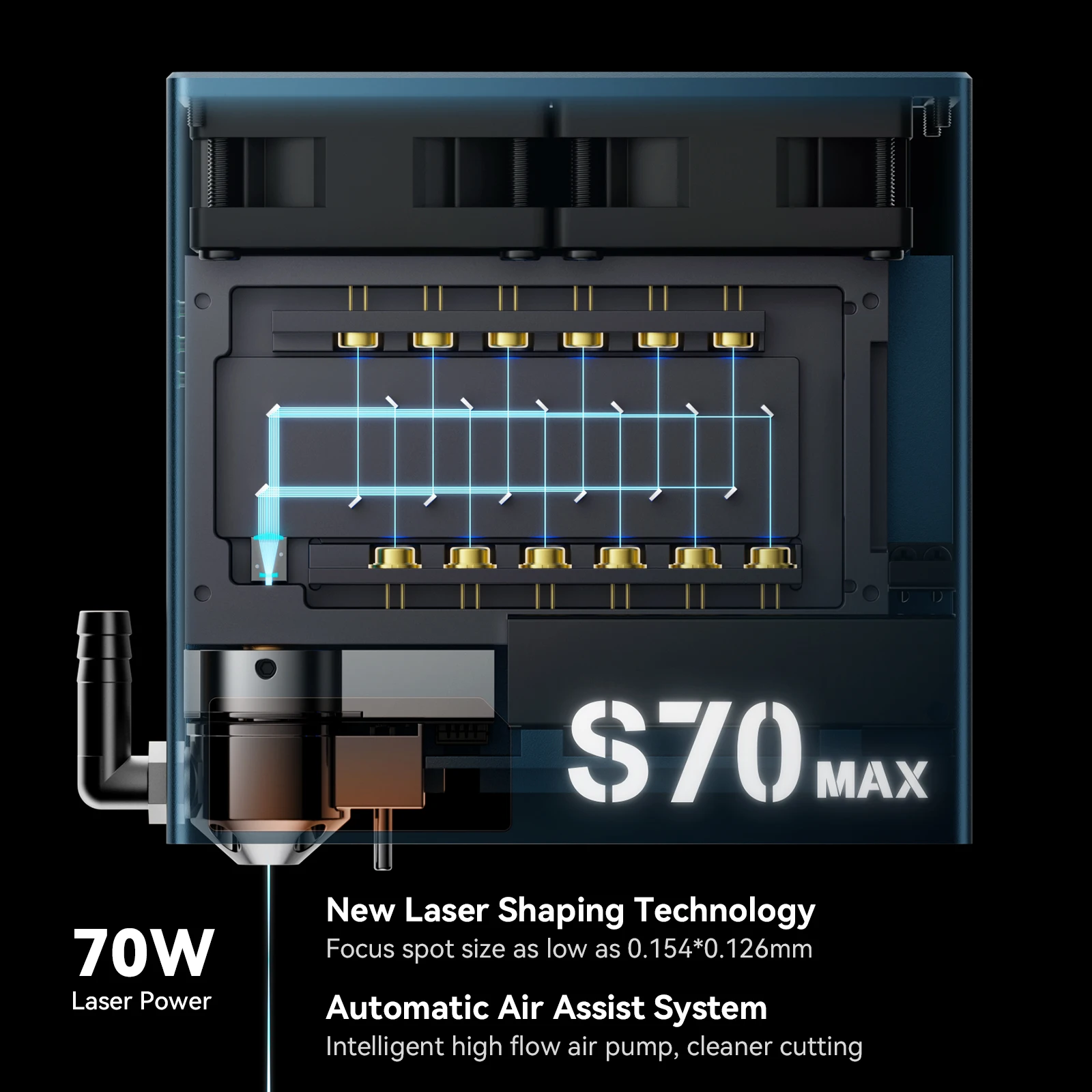

2. 70W Ultra Powerful Laser:

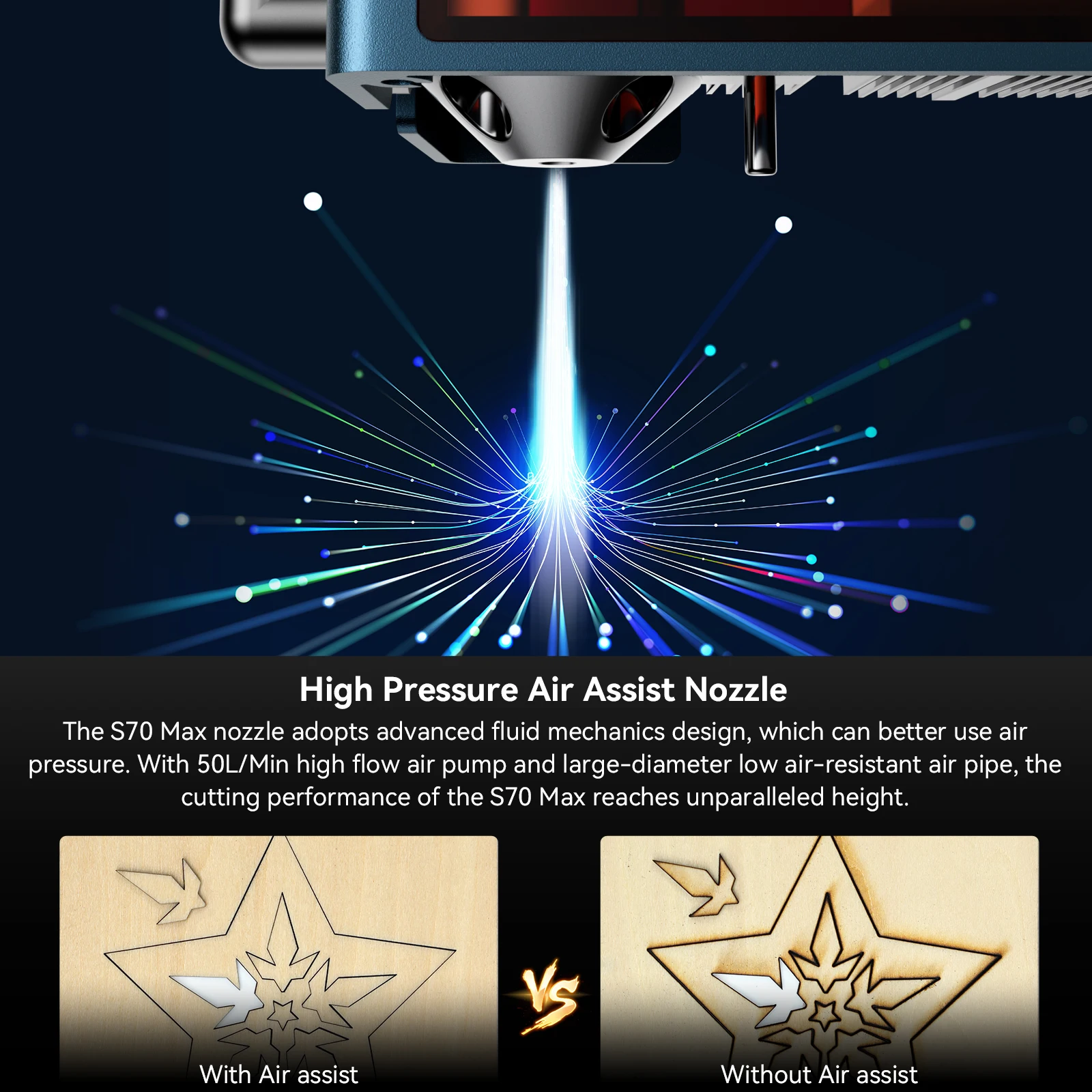

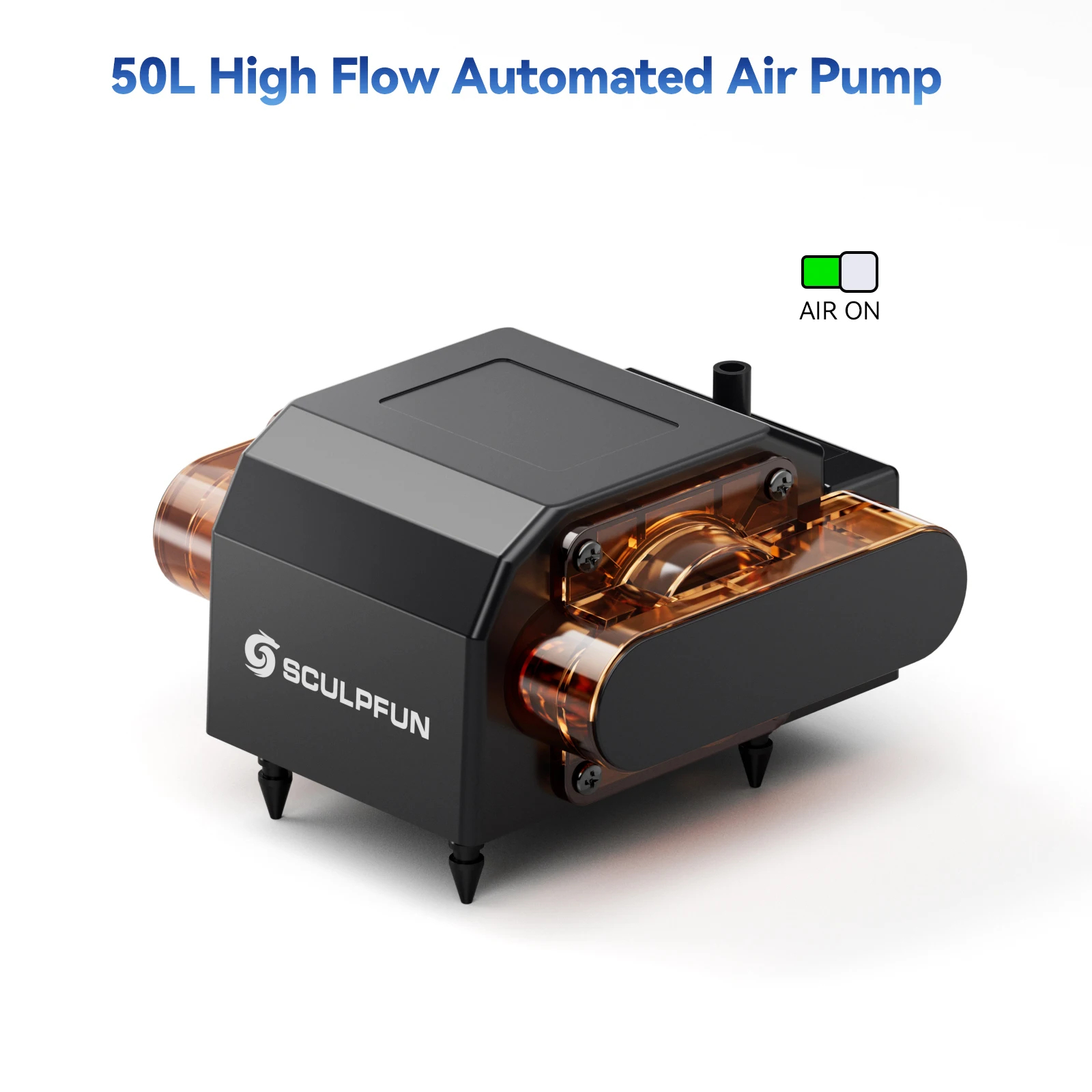

The S70 Max is a professional laser engraving machine which utilizes twelve 6W semiconductor laser chips with a maximum chip laser power of up to 72W, empowering the machine with higher performance and delivering the exceptional efficiency. Full 100% power with the standard 50L high flow air pump, it can cut up to 20mm plywood, 30mm paulownia wood, 10mm black acrylic.

3. Strong Cutting Effect:

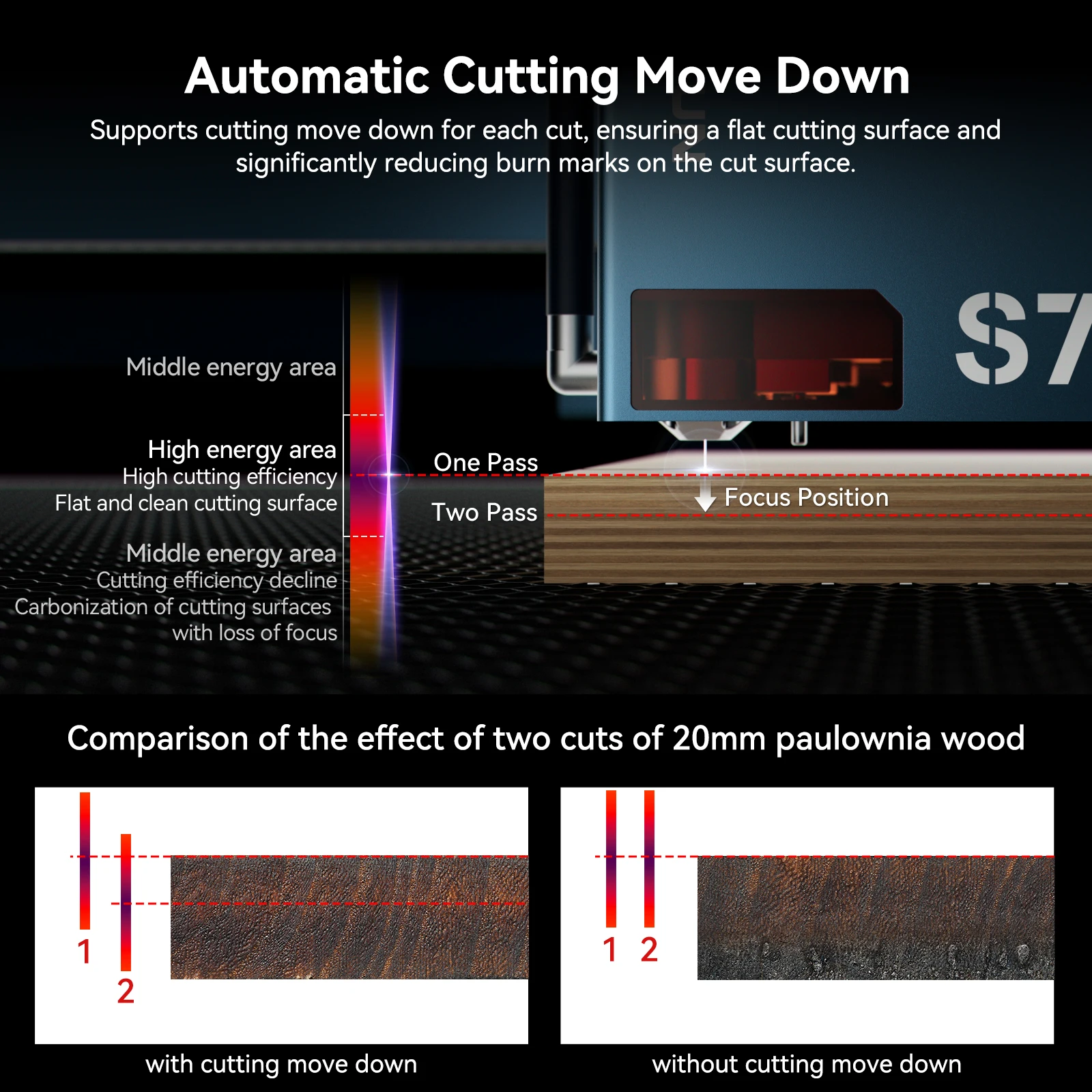

Sculpfun S70 Max adopts the latest fiber optic spot compression technology, with an ultra-fine spot size of 0.15*0.12mm. It supports Z-axis offset in LightBurn software and supports cutting move down for each cut, ensuring a flat cutting surface and significantly reducing burn marks on the cut surface.

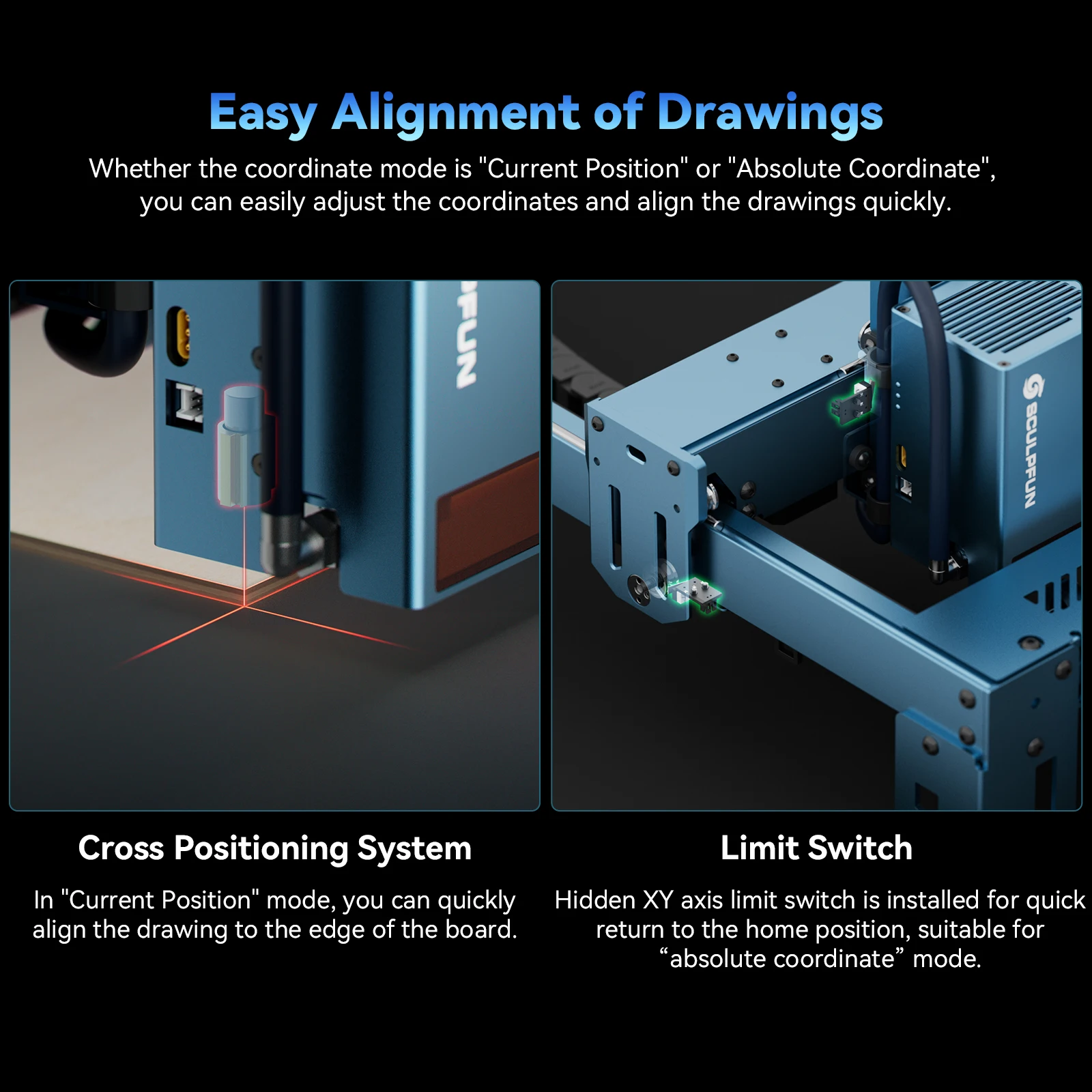

4. Auto-Focus Function:

This S70 Max laser cutter is designed with an auto-focus button, allowing the machine to automatically complete the focusing process with a press of the auto-focus button, ensuring quick project initiation. Combined with the cross positioning system, it greatly enhances the efficiency of focusing. The laser comes with a dirty lens detection, prompting the user to replace the lens in a timely manner to maintain the machine performance.

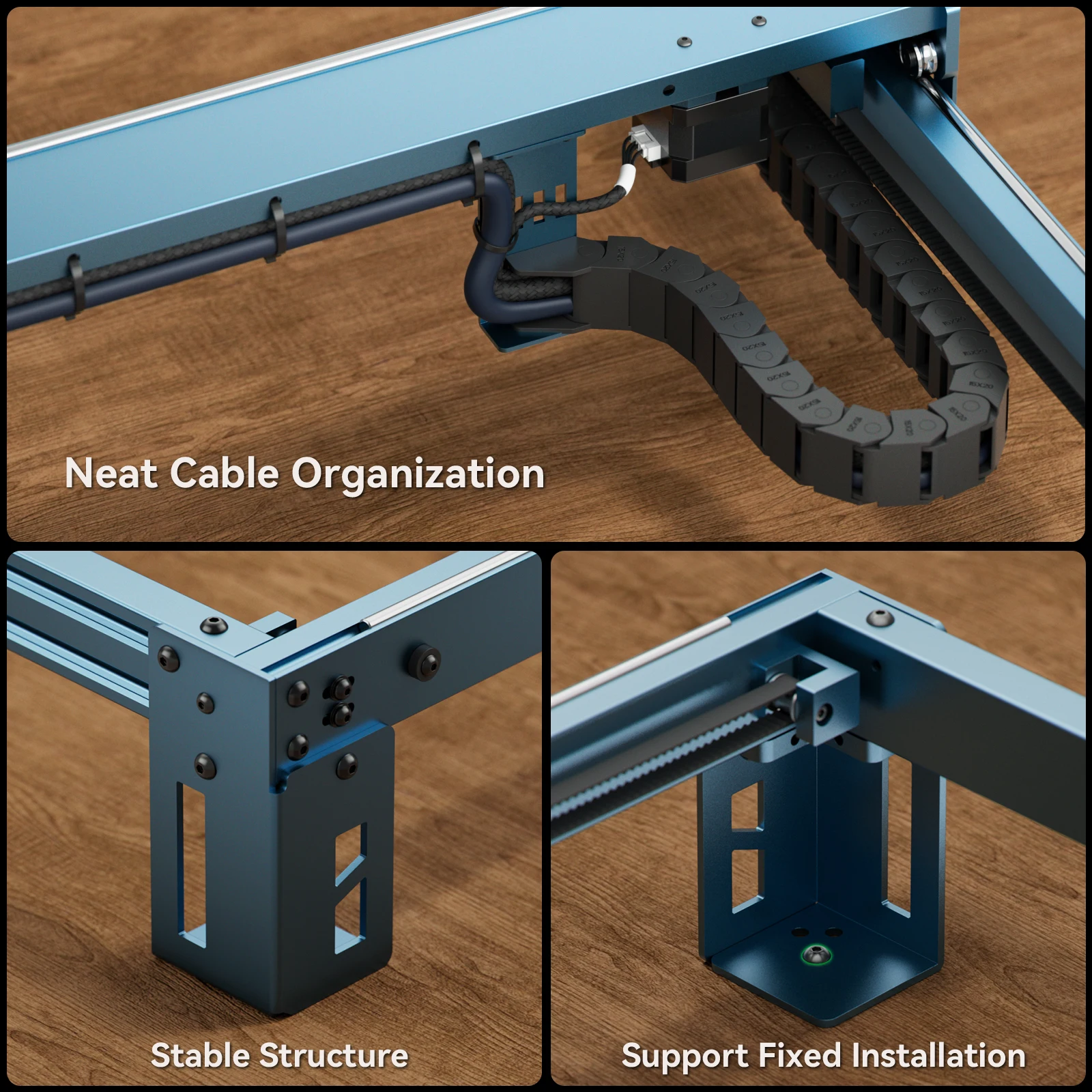

5. Stable Structure:

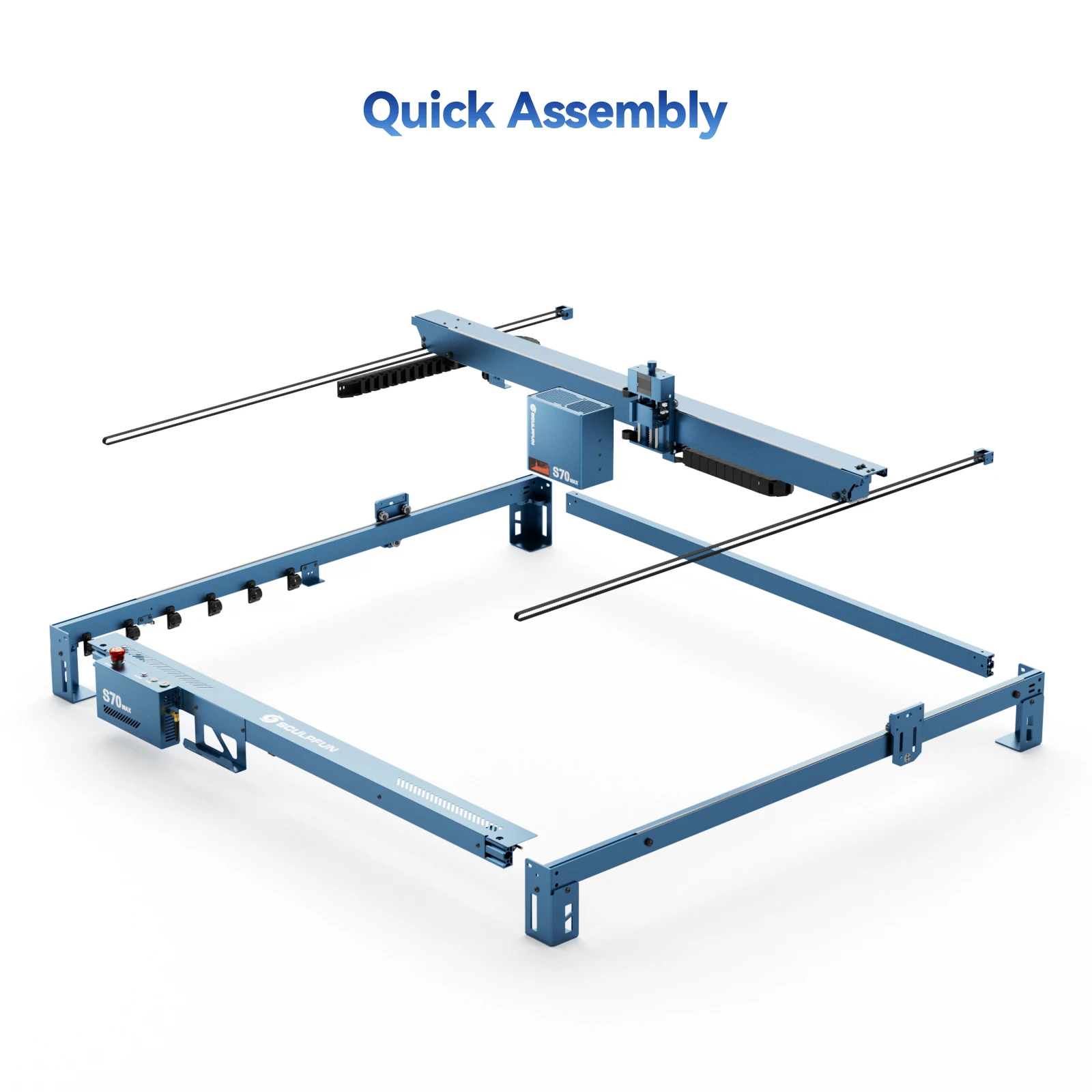

It is equipped with four support feet and fixed holes, using the new type of three-axis three-roller structure. This design enables high-speed and smooth operation as well as low noise during working, making it suitable for heavy-duty engraving and cutting tasks.

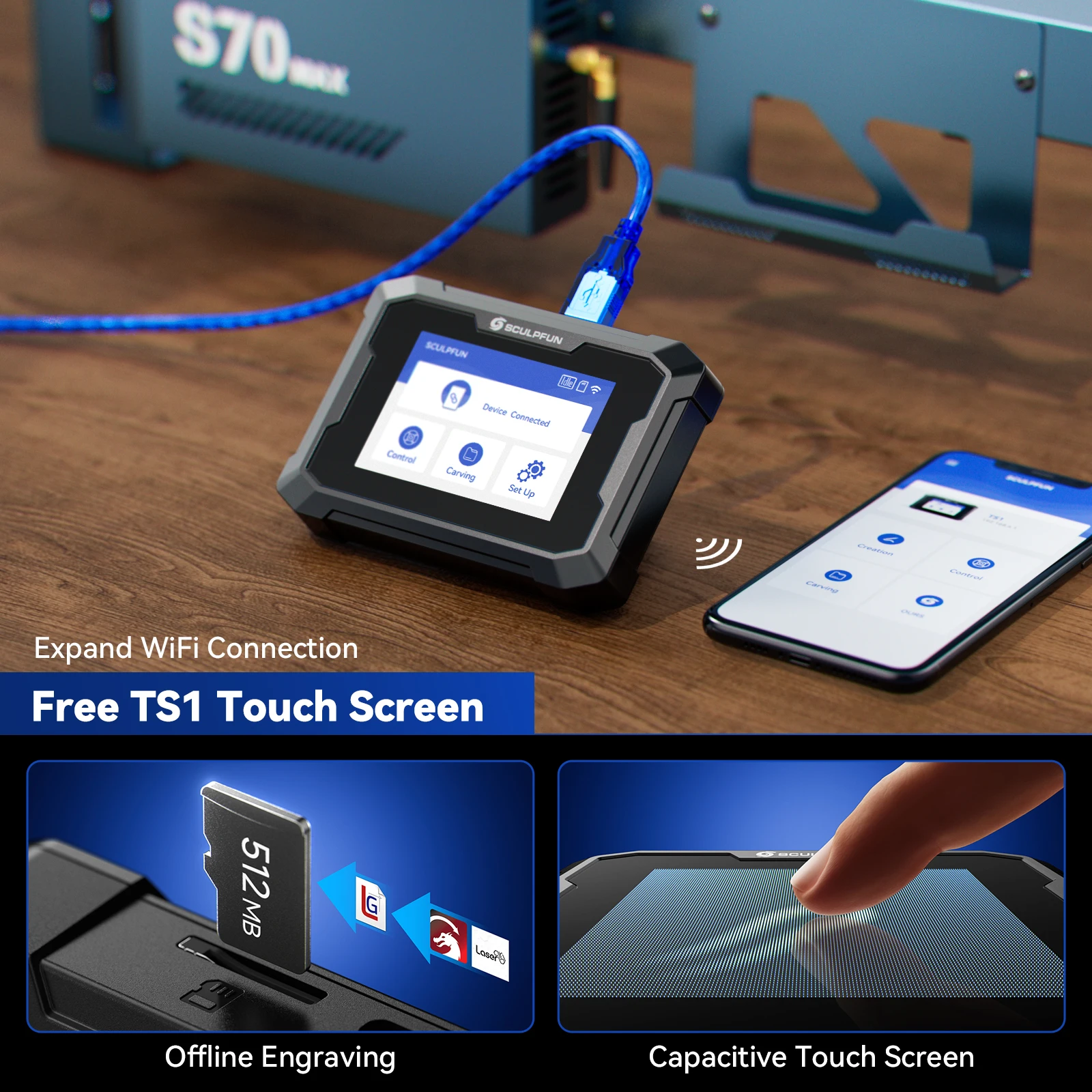

6. Offline Work:

S70 Max 70W laser engraver comes with a TS1 touch screen, which can realize offline work without a computer by importing the files in advance. Moreover, it can also be connected to the Sculpfun APP via TS1's Wi-Fi, and the slicing work can be completed with a cell phone.

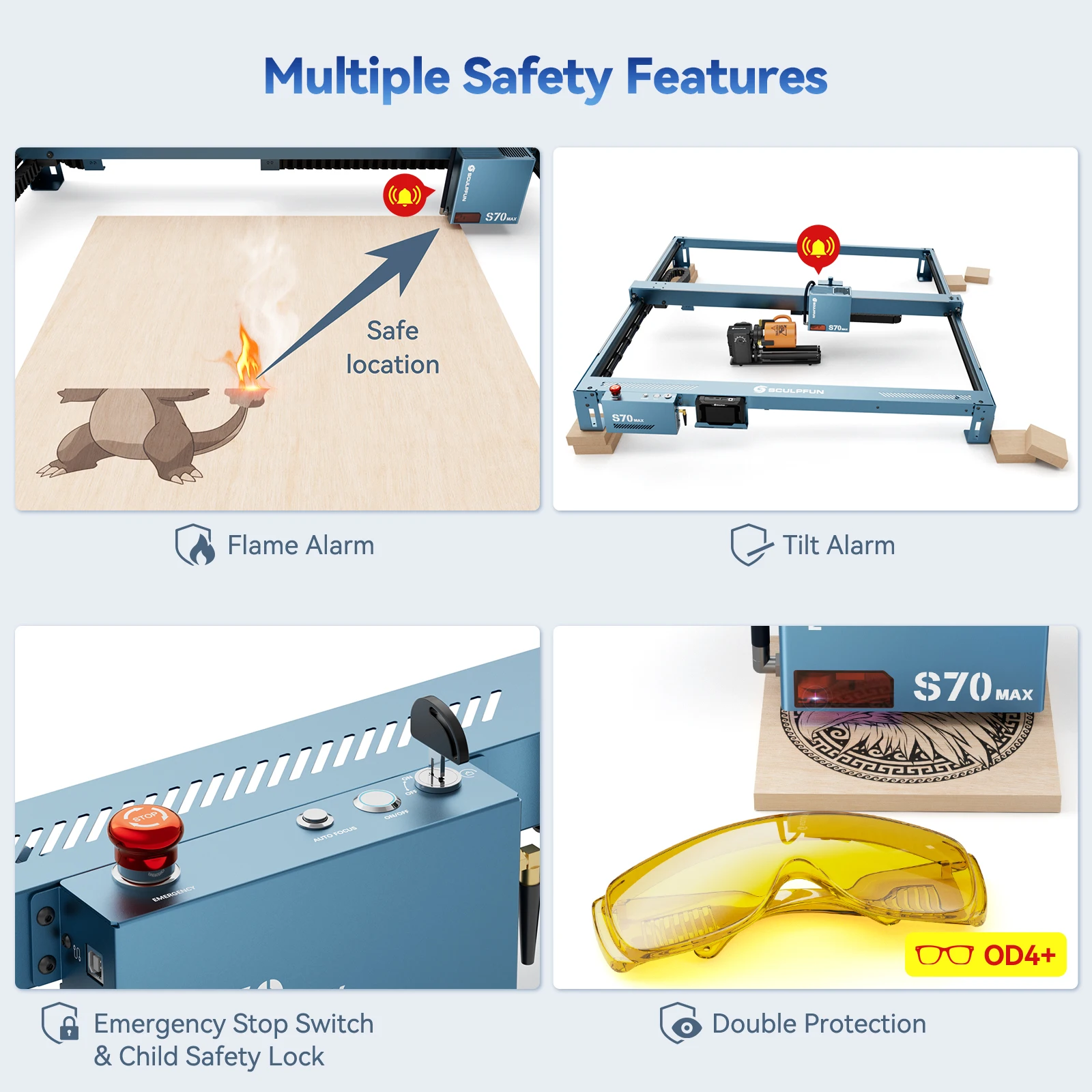

7. Safety Features:

Featured with multiple sensors including tilt detection, flame detection, emergency stop switch, safety lock, along with the OD4+ goggles as standard, this versatility ensures the safety of users.

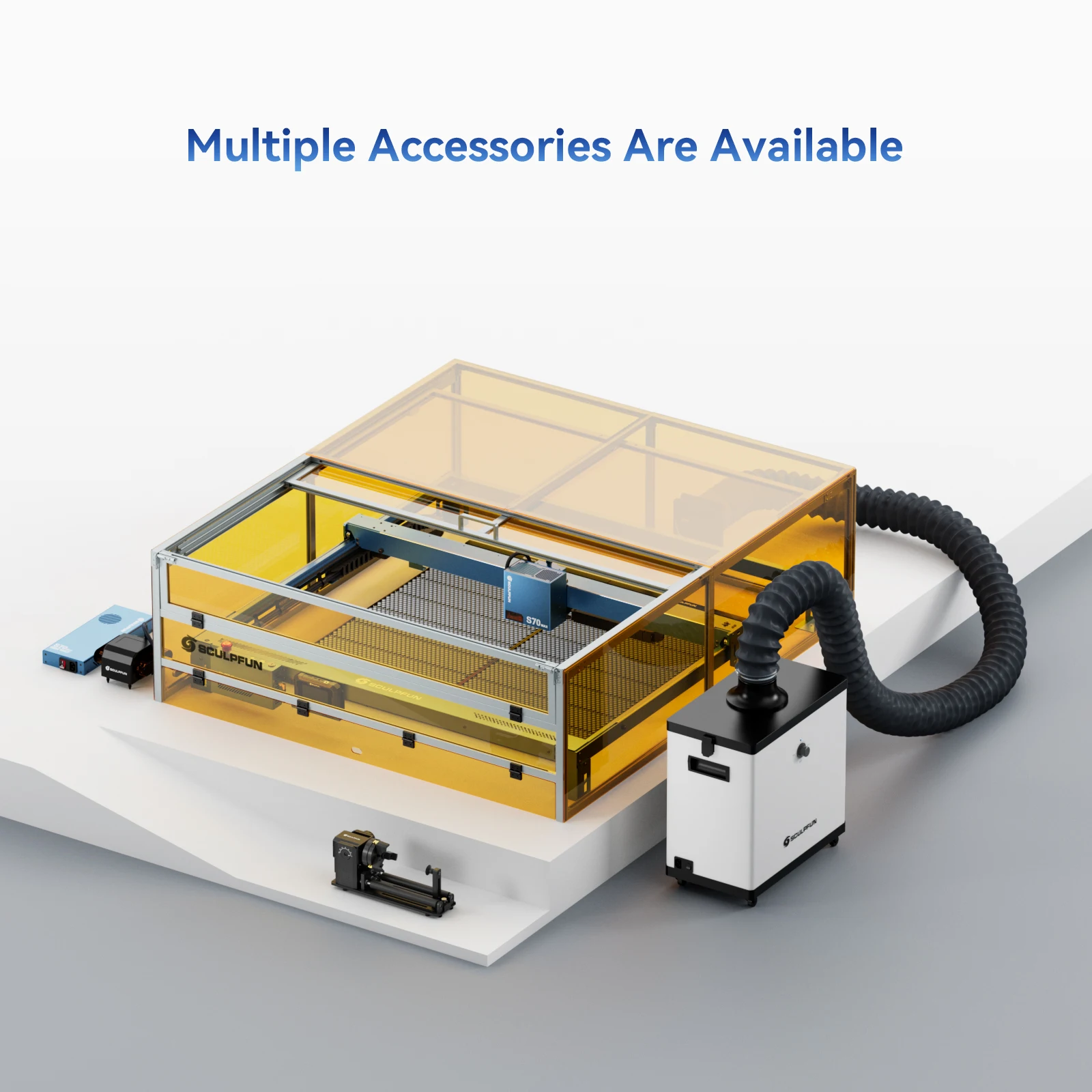

8. Multiple Accessories Compatibility:

A wide range of laser engraving machine accessories are offered for the S70 Max. By selecting the optional ones like the 800*800mm large honeycomb working panel, B70 large enclosure and SP1 smoke purifier to provide you with a more comfortable working environment.

NOTE: Accessories need to be purchased separately

Product Name: Sculpfun S70 MAX

Model: S70 MAX

Laser power: 70W

Laser wavelength: 455nm

Spot size: 0.15*0.12mm

Marking speed: 36000mm/min

Processing material type: wood, leather, acrylic, stone, ceramics, glass, paper, etc.

Engraving area: 830*800mm

Repeat positioning accuracy: 0.1mm

Focusing method: auto focus + manual focus

Supported Systems: Android / iOS / Windows / macOS

Application: Lightburn / LaserGRBL

Connection: WIFI (connected via TS1) / USB

Operating voltage: DC24V

Operating current: 14.6A

Input power: 350W

Machine size: 1154*1113*240mm

Machine weight: 15.2kg

Package size: 1180x380x280mm

Packing weight: 22kg

Packing List:

1 set *Sculpfun S70 MAX frame (5pcs)

1 *70W laser

1 *laser accessory box

1 *TS1 touch screen

1 *power adapter

1 *power cable

1 *TS1 adapter cable

1 *data cable

1 *air pump

1 *fixed focus column

1 *screw kit

1 *toolkit

1 *goggles

1 *user manual
