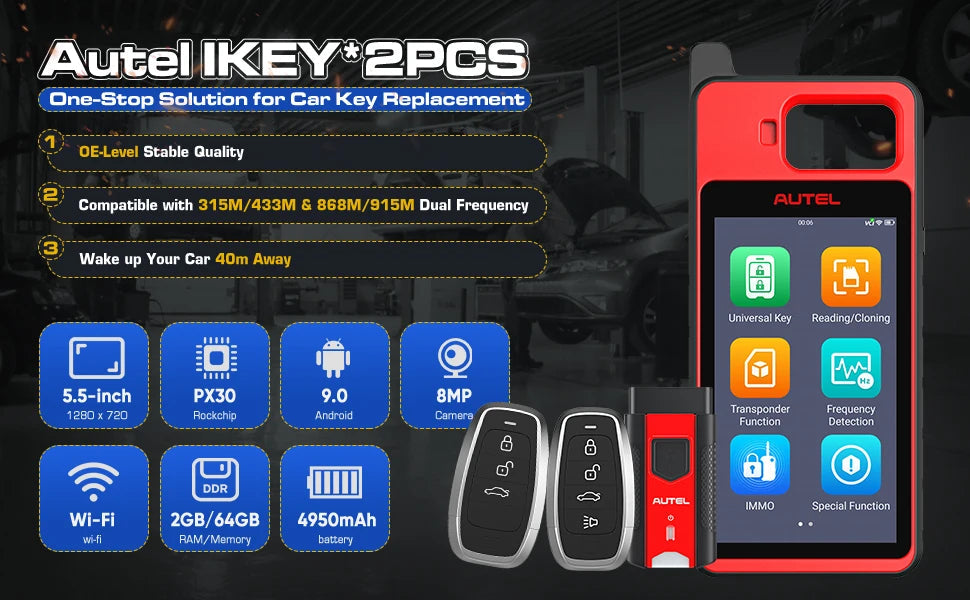

Autel MaxiIM KM100 Advanced One-Minute Key Generation Tool IMMO Key programming Key Renewal and Transponder Editing PK IM508S
Autel MaxiIM KM100 Advanced One-Minute Key Generation Tool IMMO Key programming Key Renewal and Transponder Editing PK IM508S
- FREE SHIPPING
Currently 28 items are in stock!
Order in & get it by
Couldn't load pickup availability
Description
Description
SPECIFICATIONS
Audio Input/Output: MIC: supported Speaker: supported
Battery: 4950mAh lithium-polymer battery
Brand Name: Autel
Camera: 8 megapixels
Certification: CE
Connection: Wi-Fi Bluetooth 5.0 USB 2.0 type C
Dimensions (WxHxD): 200mm x 89 mm x 22 mm
Electronic: Yes
External Testing Certification: ce
Free Update Online: Lifetime
Hardware Version: Autel 2025 Newest
High-concerned chemical: None
Input: 5V/2A
Is Batteries Included: Yes
Item Height: 0.87
Item Length: 7.9
Item Type: Auto Key Programmer
Item Weight: 0.35
Item Width: 3.5
Material: Plastic
Memory: 2GB RAM/64GB on-board memory
Model Name: Autel MaxiIM KM100 KM100X
Operating System: AndroidTM 9.0
Operating Temp: -10 to 45°C (14 to 113°F)
Origin: Mainland China
Power (W): 5V/2A
Processor: Rockchip PX30 (4x ARM Cortex-A35 1.5GHz)
Screen: 5.5-inch screen with 1280 x 720 resolution
Sensor: Ambient light sensor
Software Version: Autel 2025 Newest
Special Features: Bluetooth,Wifi
Storage Temp: -20 to 60°C (-4 to 140°F)
VCI: V200
Voltage: 5V/2A
Warranty: 1 Year
Weight: 352.7g (0.8 lb)

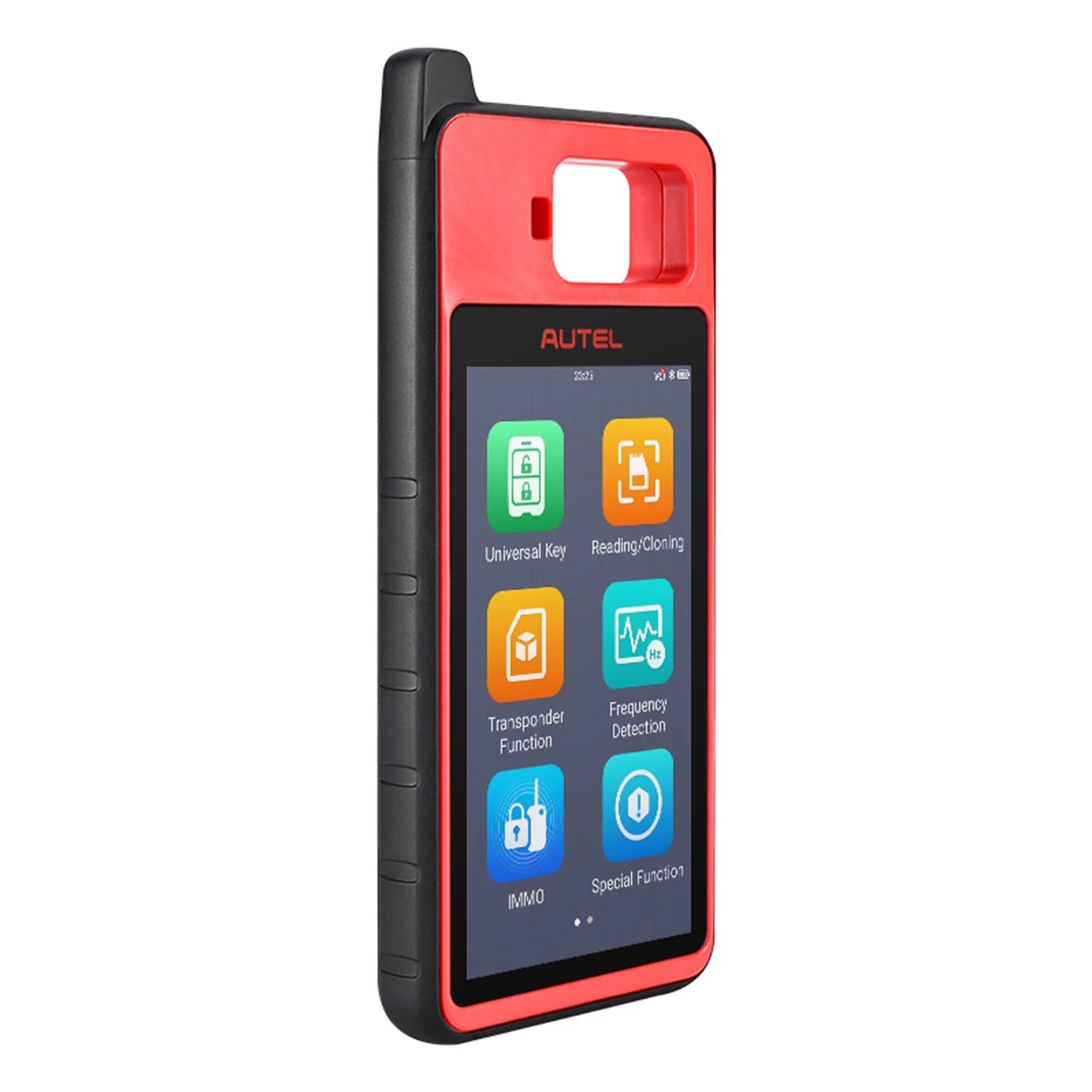

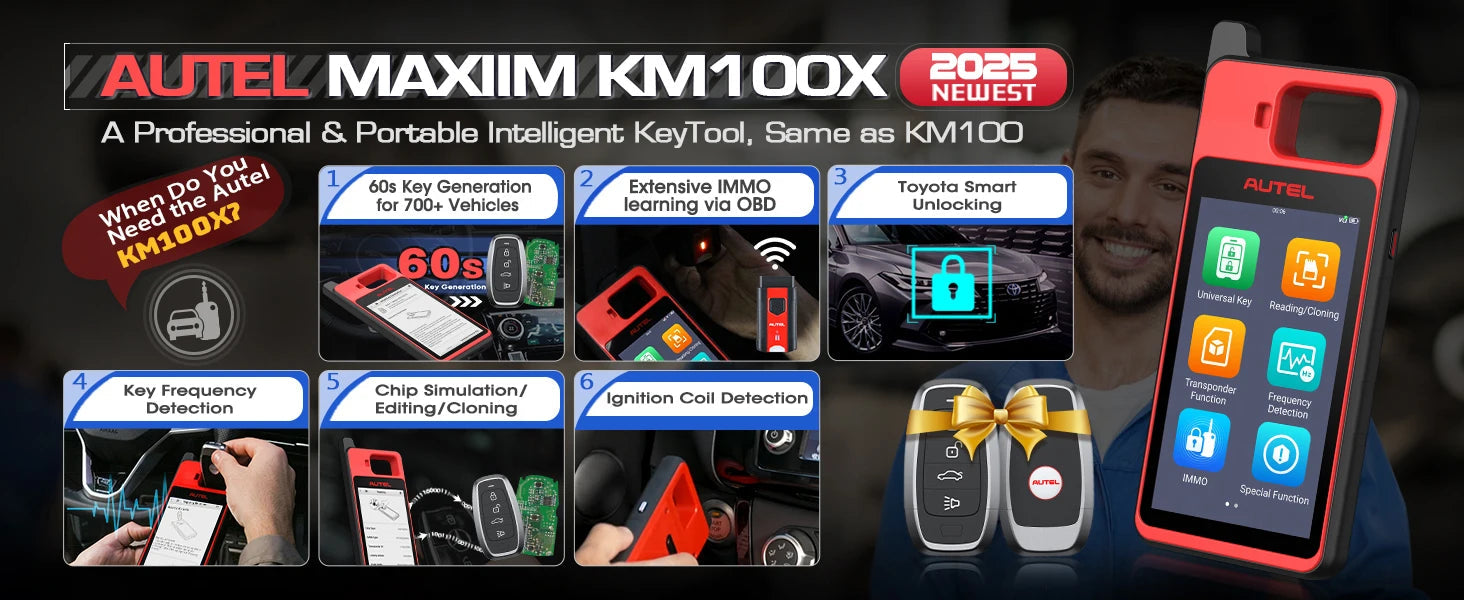

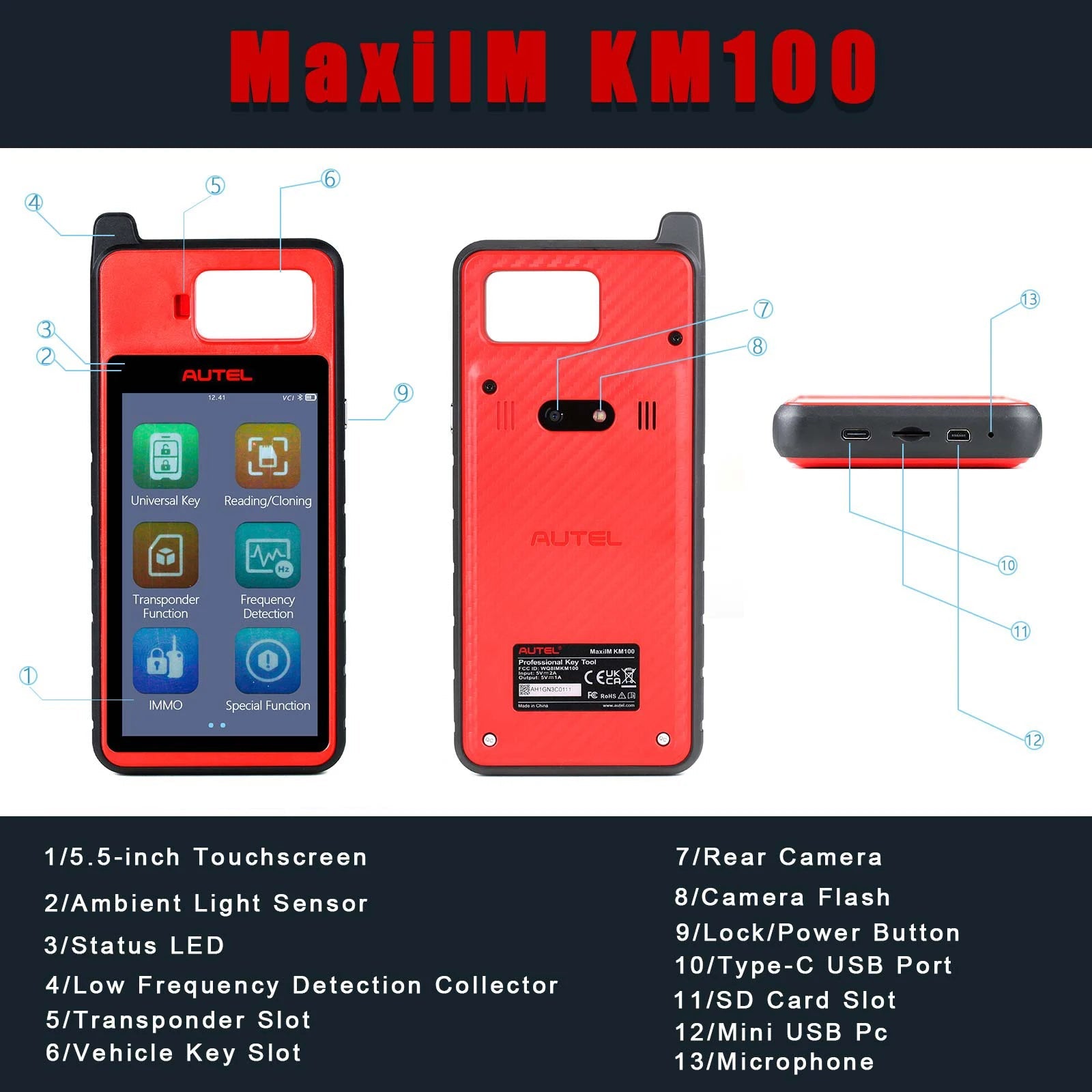

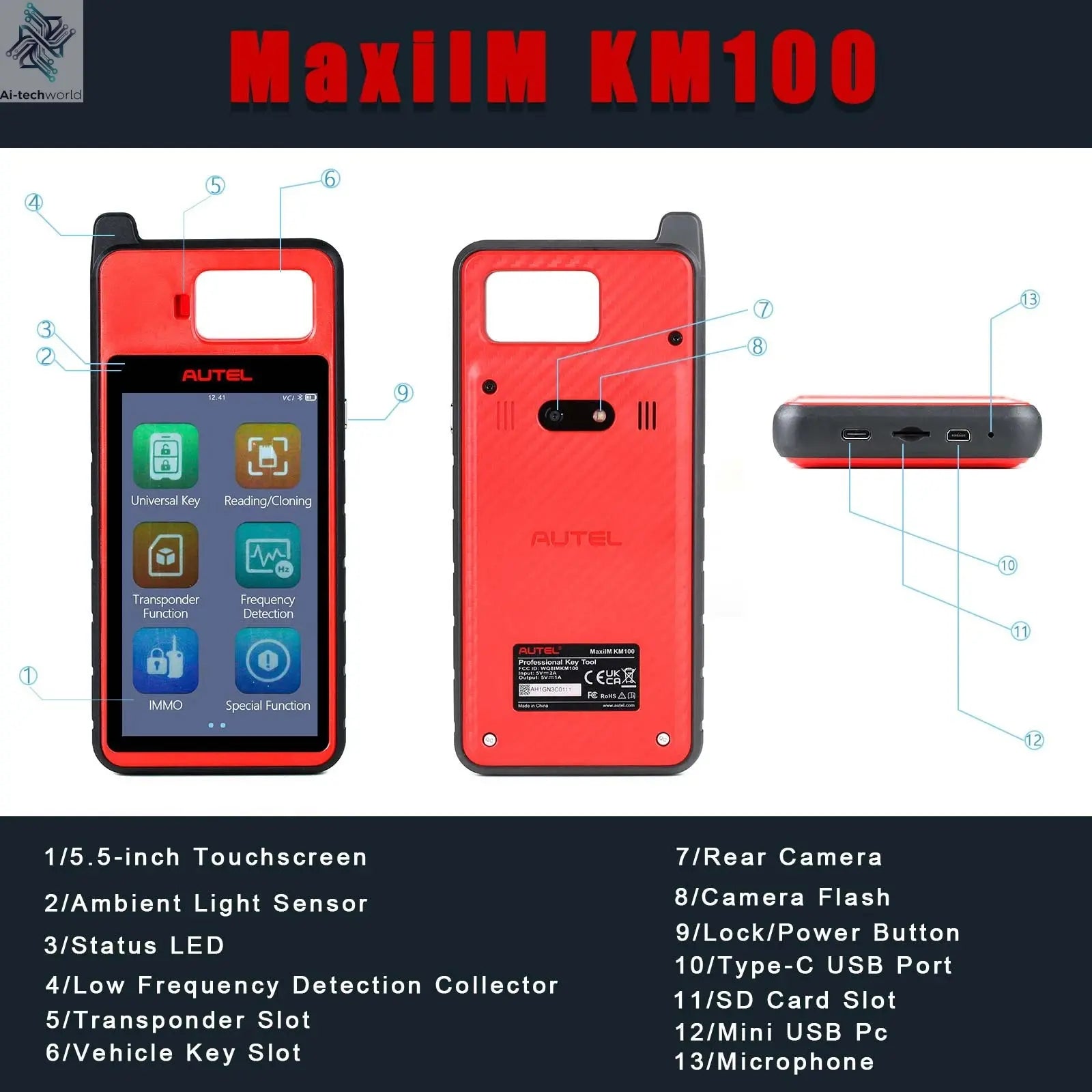

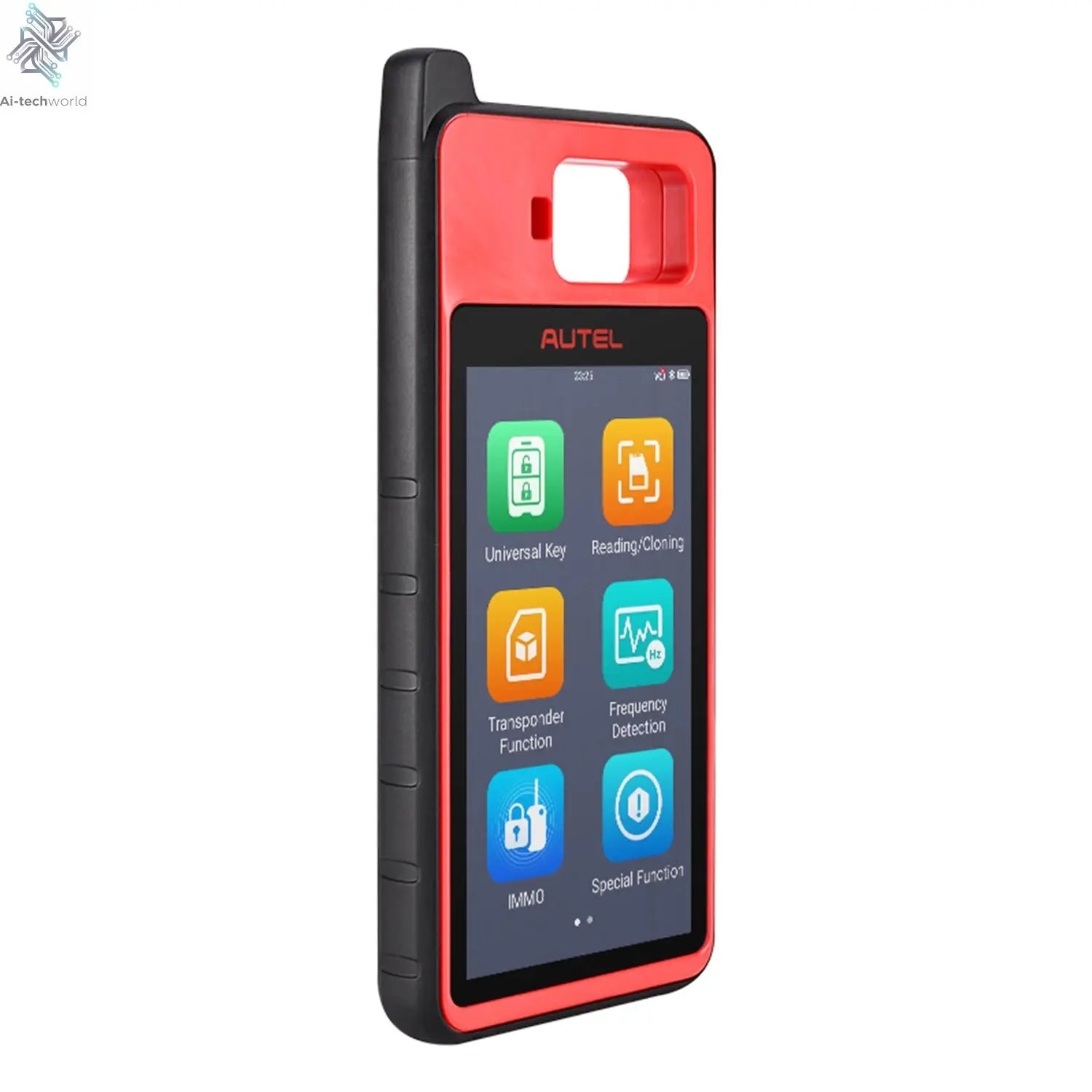

MaxiIM KM100(X)

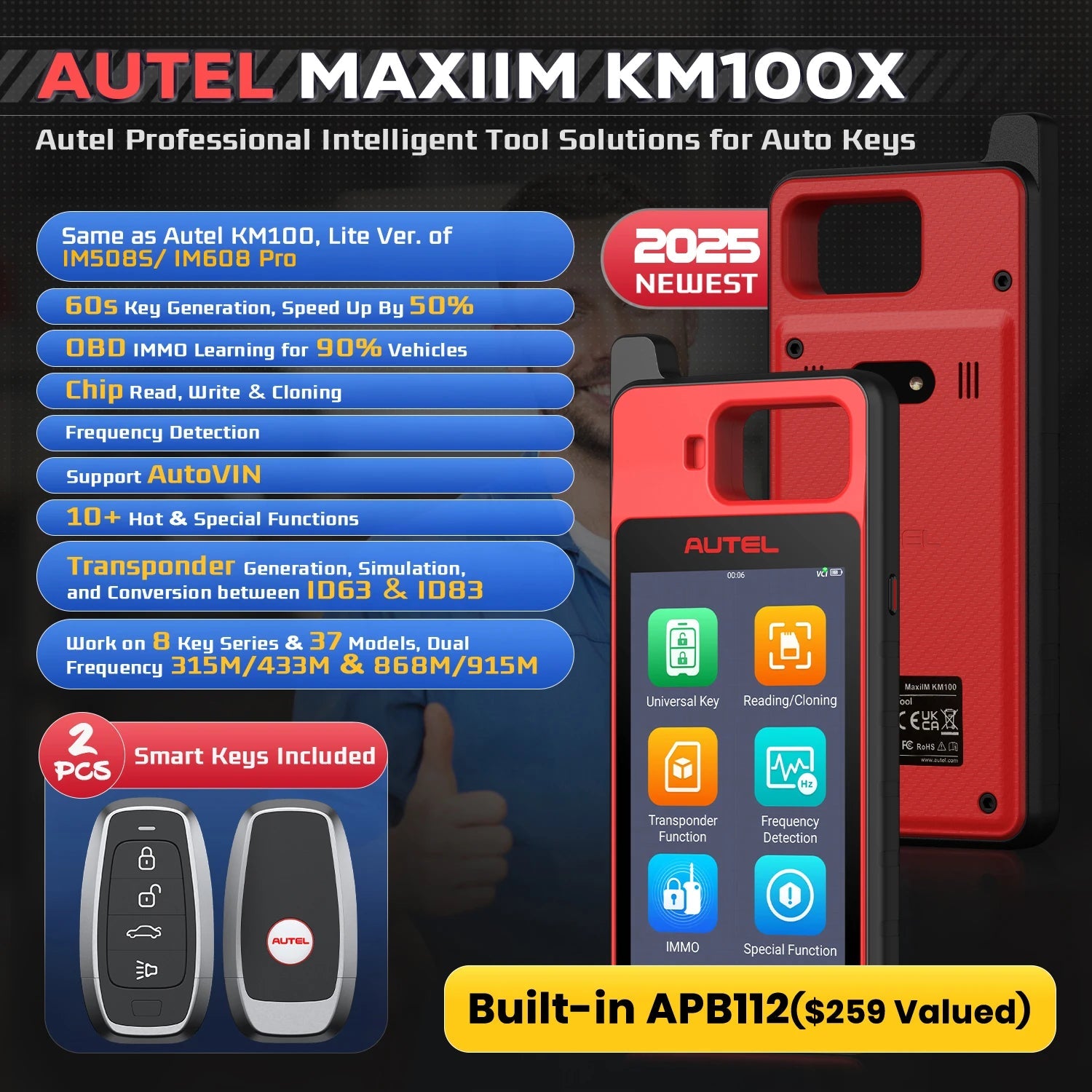

MaxiIM KM100(X) is an advanced key and immobilizer touchscreen tablet capable of smart key creation and IMMO learning via OBD. This 5.5-inch, Android touchscreen tablet with Bluetooth VCI can program the Autel IKEY as a smart key replacement for more than 700 vehicles and offers IMMO programming capability for multiple vehicle brands including BMW, Volkswagen, Toyota, Honda, and General Motors. Additional innovative features include key renewal and Transponder Editing of 20 supported protocols.

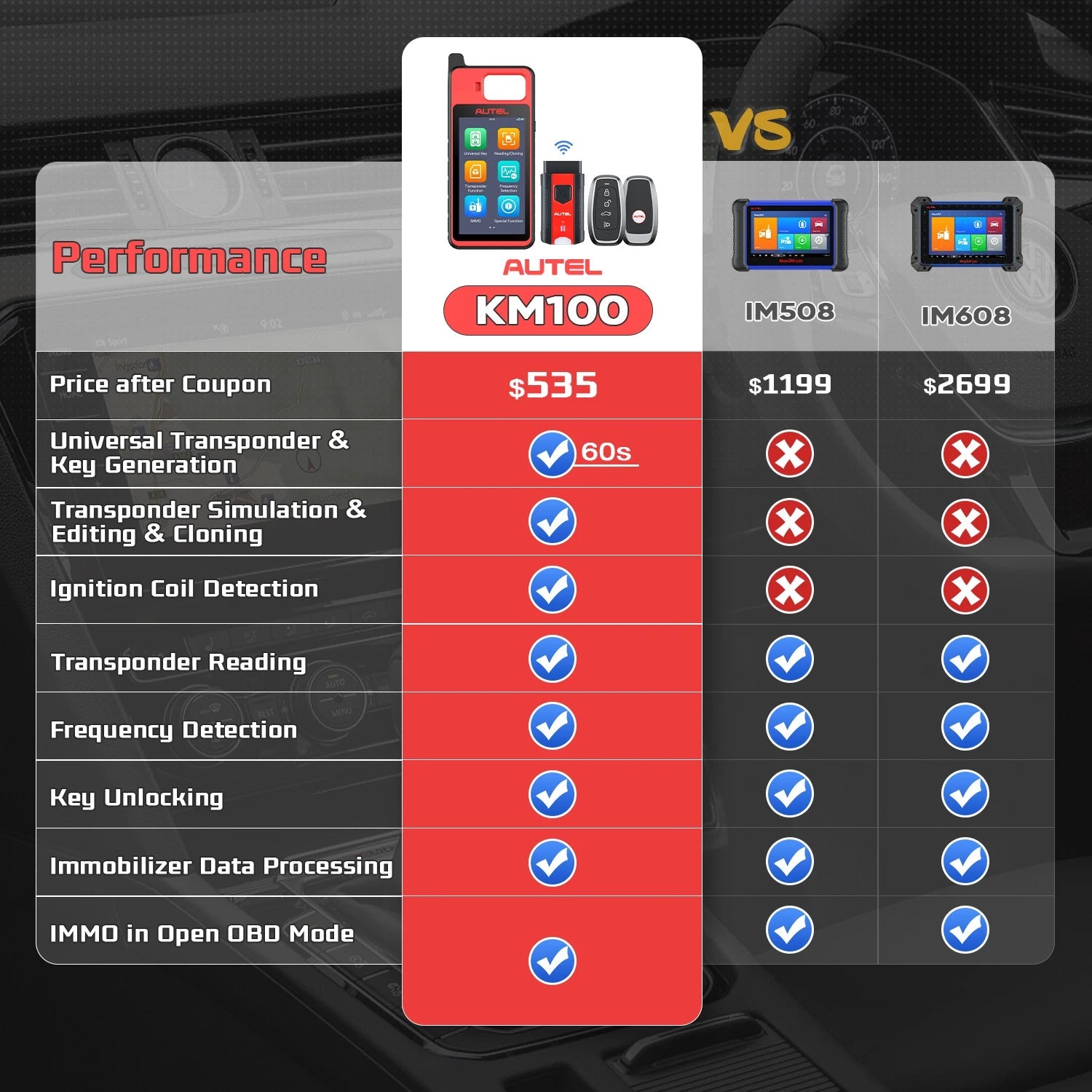

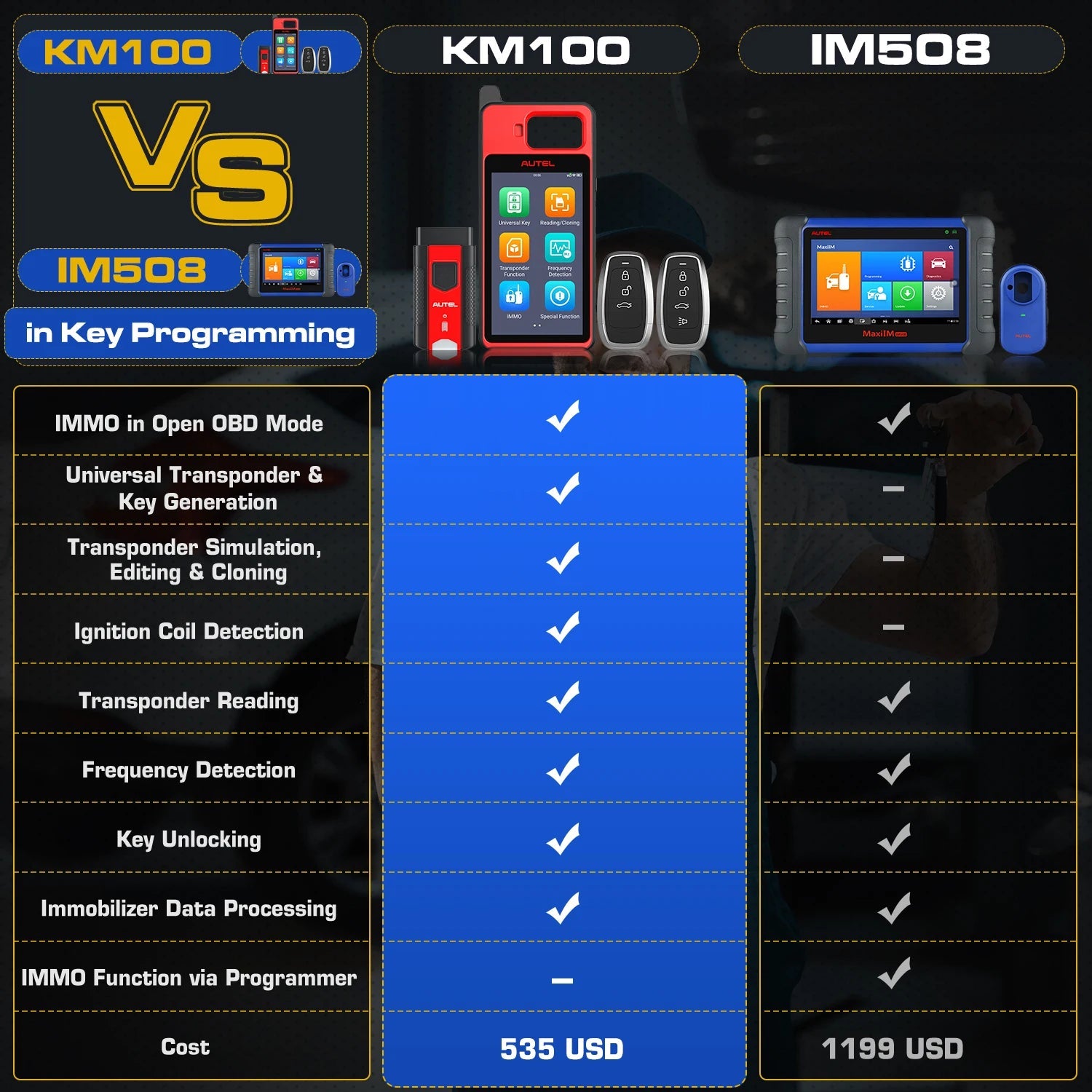

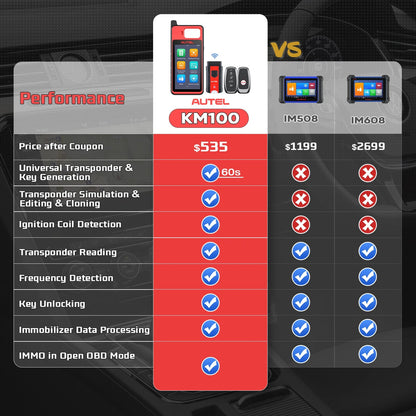

Comparison of KM100 and IM508:
MaxiIM KM100(X) Highlights
1. Free Update Online Lifetime
2. Global Version No IP Blocking Problem
3. Supporting 8 Key Series And 37 Models
4. Simple Operation, Guided User Instructions, Easy To Use

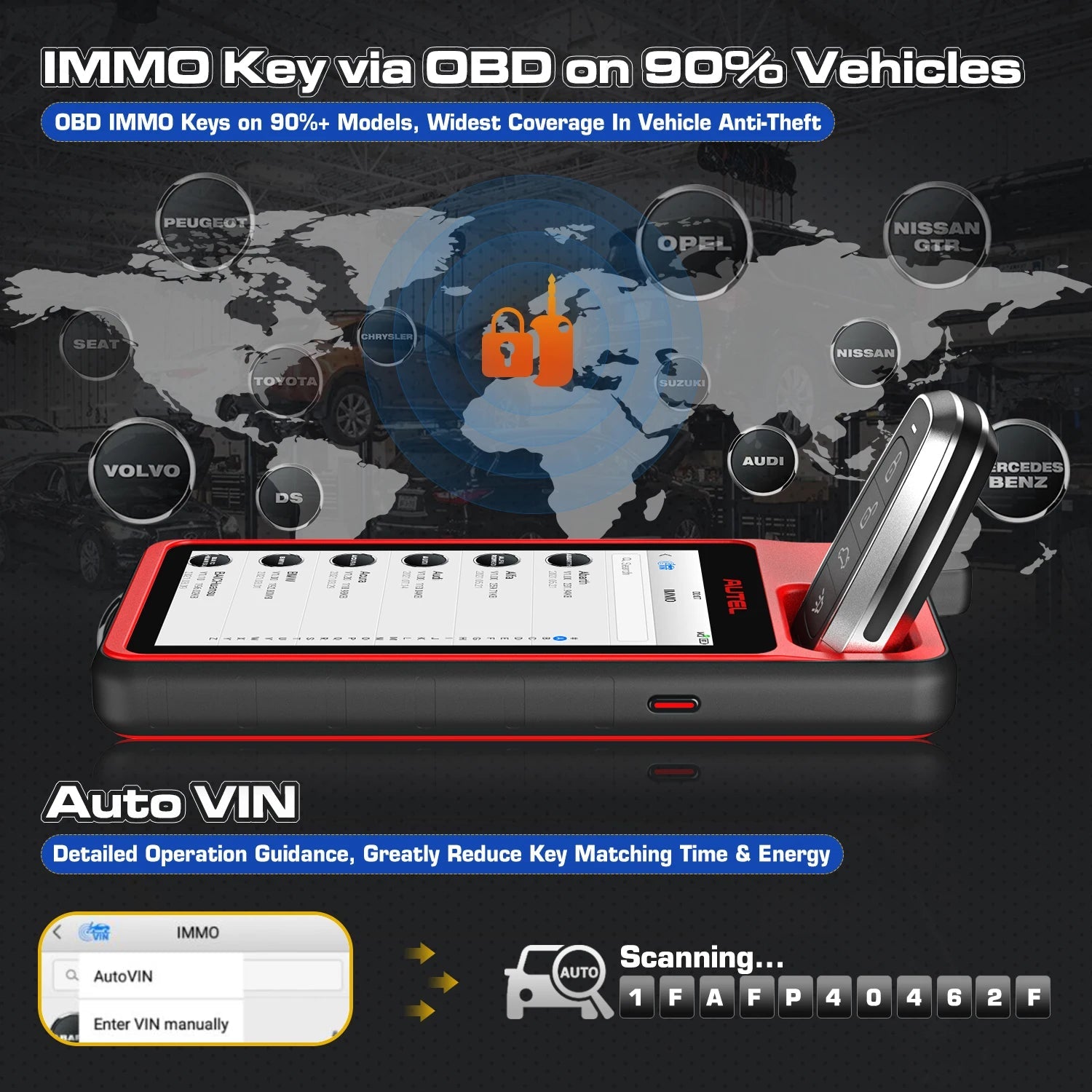

5. Industry-Leading Coverage Of IMMO Learning Via OBD For More Than 90% Of Models
6. Multi-Language Supported: English, German, Spanish, French, Polish, Portuguese, Italian, Dutch, Swedish, Russian, Korean, Japanese, Chinese
7. KM100 Adopts a High-Resolution Display Screen of 1280*720, and Supports Touch-Screen Operation, which is sensitive, convenient, and fast to use.
8. Support Chip Simulation for Emergency Use (for ID46 47 48 49 4A 8A), which can be used in an emergency when there is no chip around.

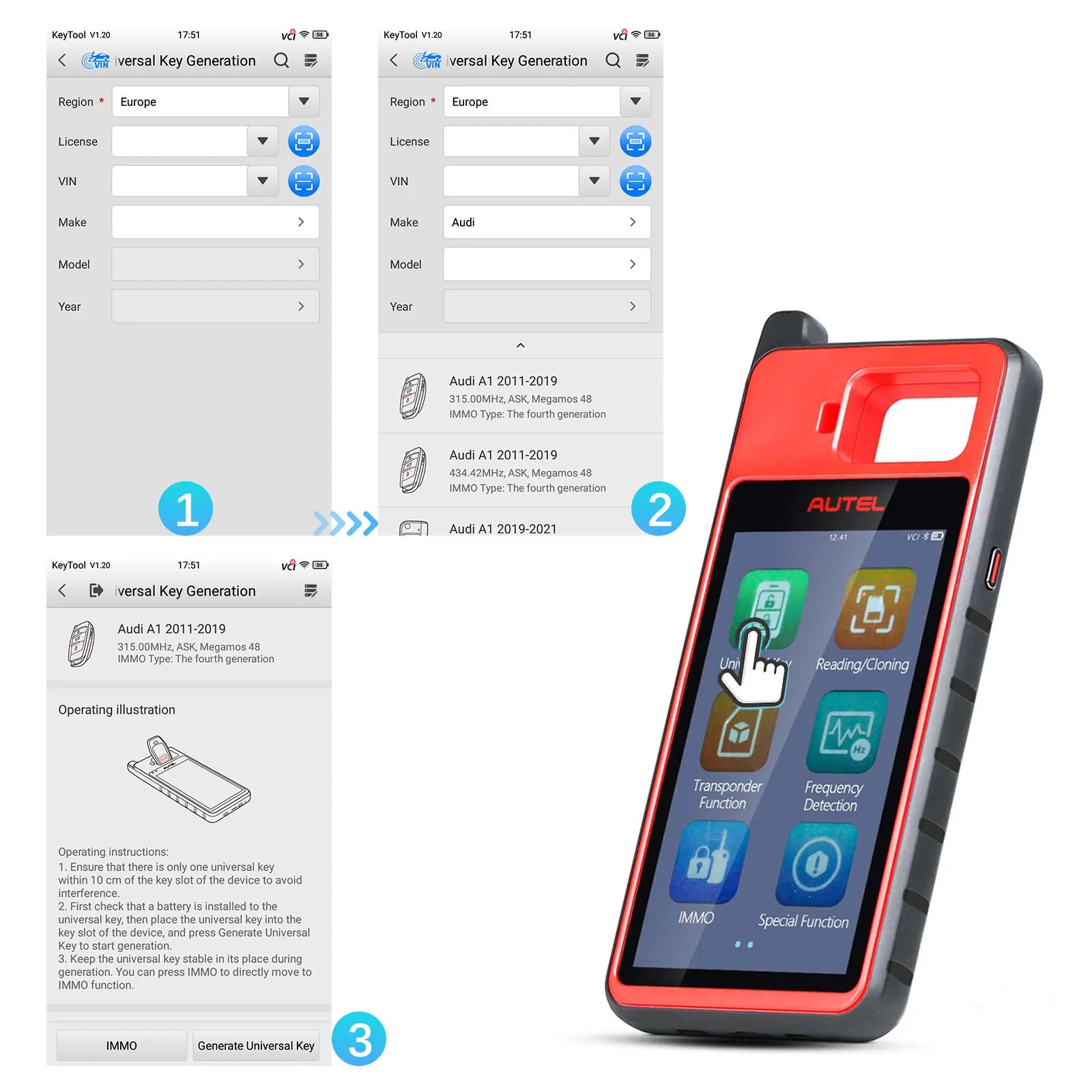

How to Do Key Generation via Autel KM100?
-Automatically scan the VIN code to obtain vehicle information
-Obtain model information by scanning the VIN barcode on the nameplate
-Scan the license plate number to confirm the model, if you can't scan it, you need to enter it manually
-PLC V200 Bluetooth picks up the car, after generating the remote control, you can directly select the immo function to match the key, without the need to push back to the main interface to select the IMMO function, and then re-select the model.
Description:

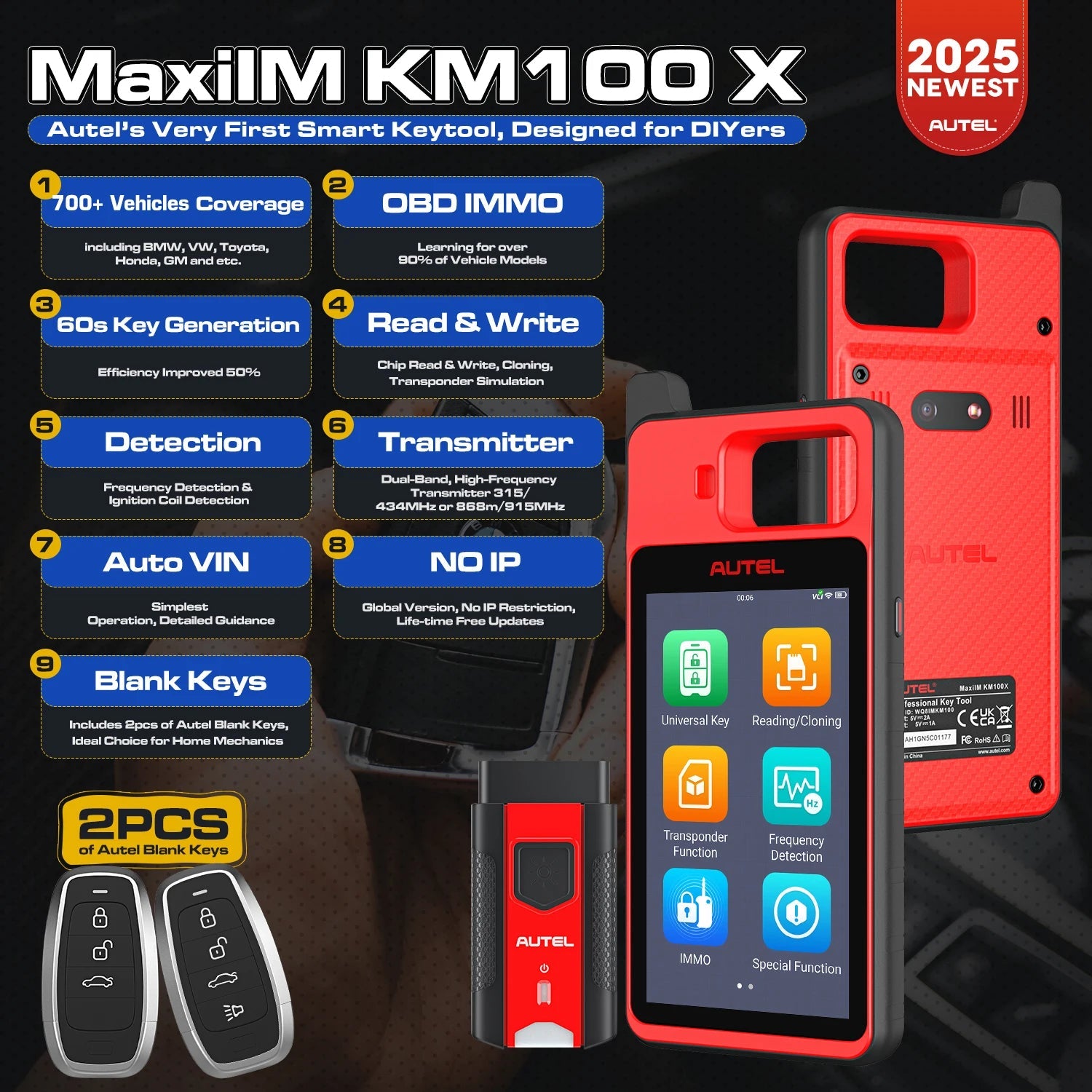

• Programs Autel’s IKEY universal key as smart key replacement for more than 700 vehicles
• Extensive IMMO Key programming coverage including BMW, Volkswagen, Toyota, Honda, and General Motors
• One-Minute Key Generation

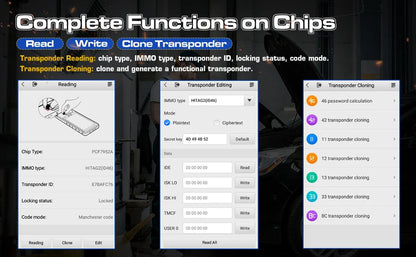

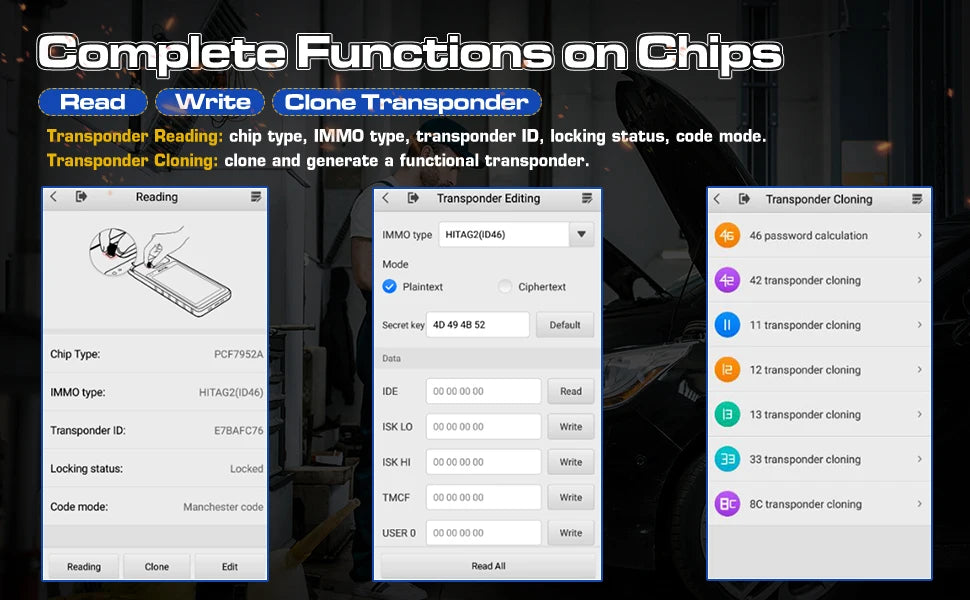

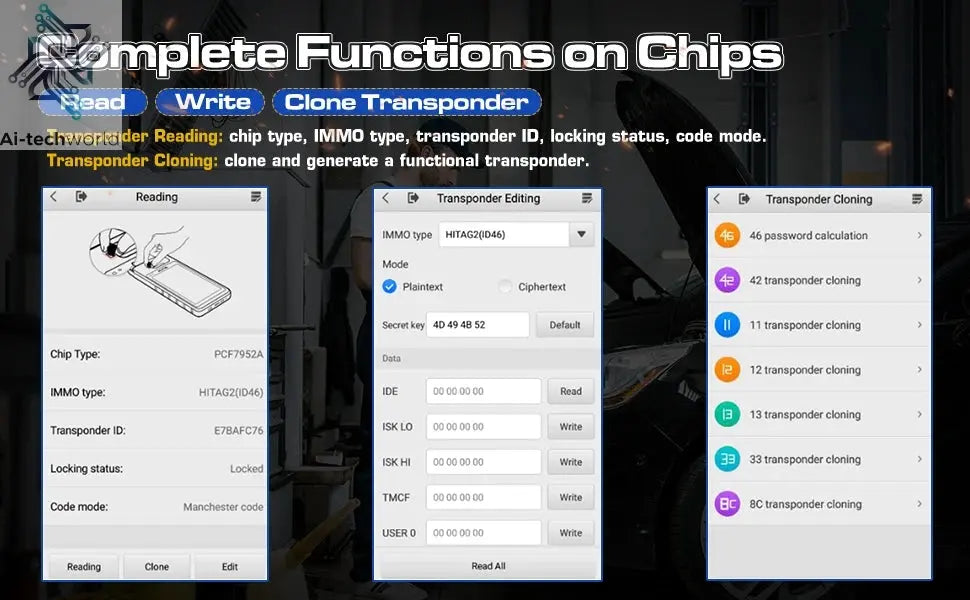

• Chip Read & Write, Cloning and Frequency Detection
• AutoVin vehicle identification to ensure accuracy
• Simple User Interface with Concise Instructions
• Powerful Android-based tablet with 64 GB memory and long-lasting rechargeable battery

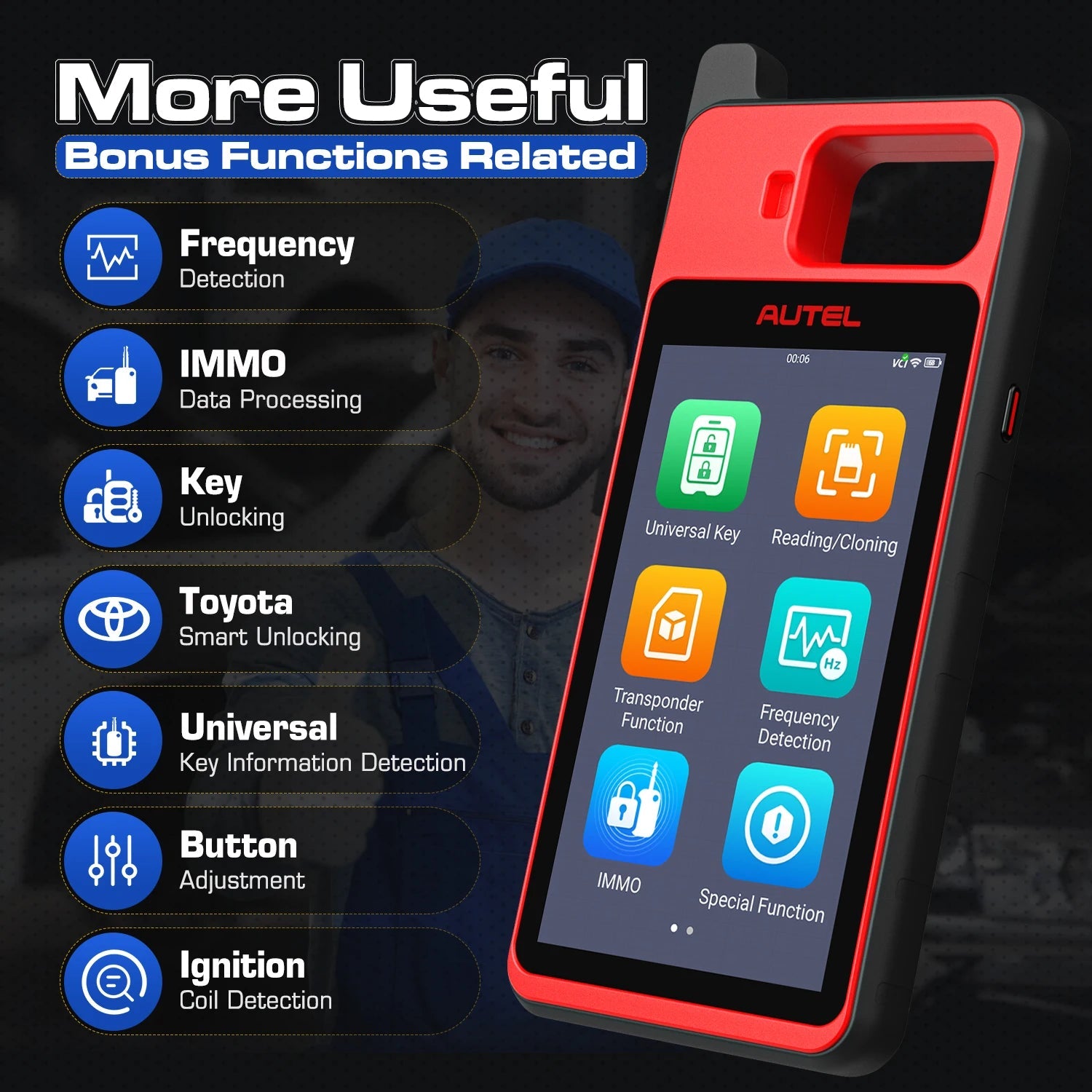

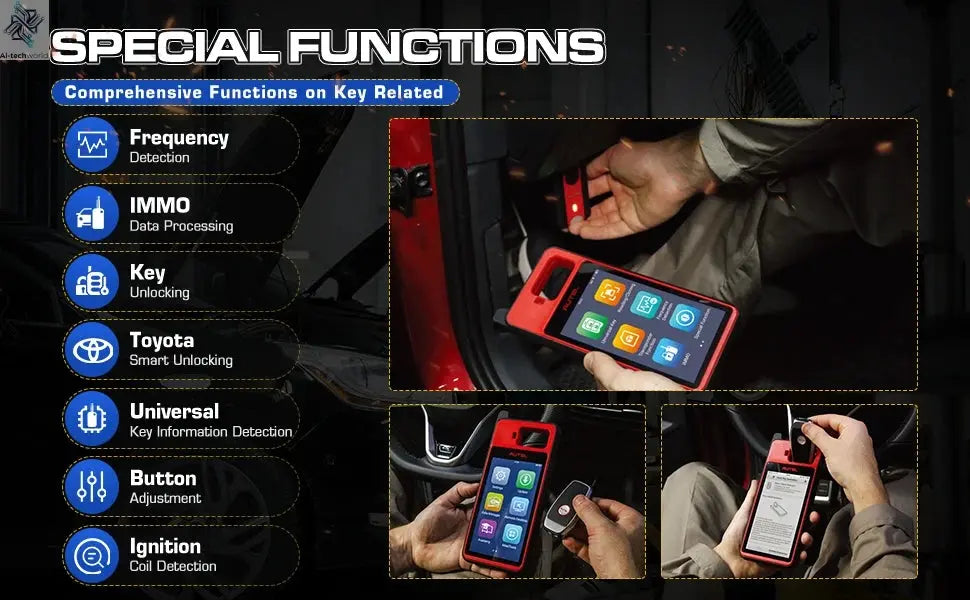

More powerful Function:
VEHICLE COMPATIBILITY:
· Support AutoVIN
· Simple Operation,Guided User Instructions,Easy To Use
· Industry-Leading Coverage Of IMMO Learning Via OBD For More Than 90% Of Models
· Supporting 8 Key Series And 37 Models
· Covering The Top 100 Selling Models In North America For The Last 10 Years

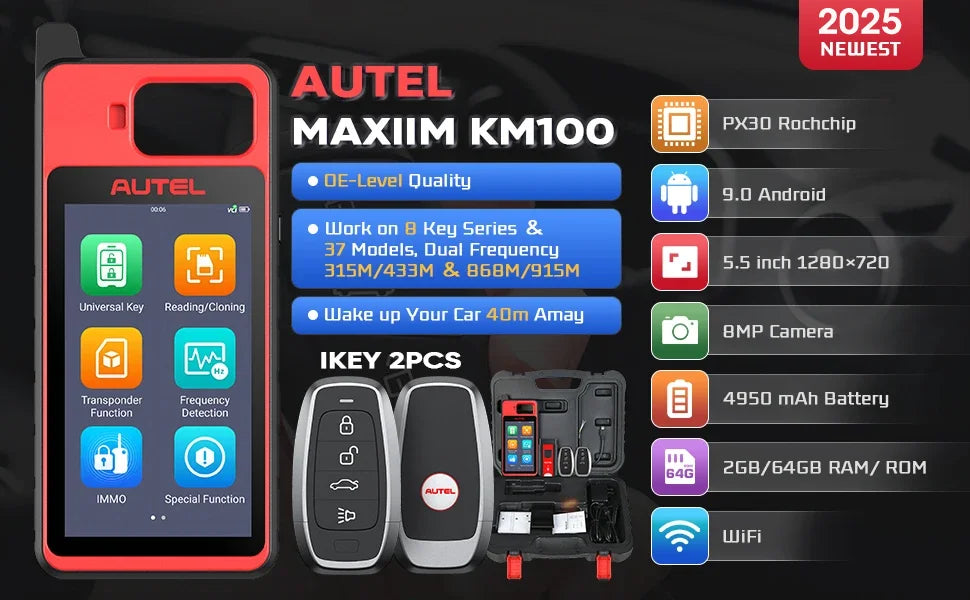

Specification:
Dimensions (WxHxD): 200mm(7.9") x 89 mm (3.5") x 22 mm (0.87")
Weight: 352.7g (0.8 lb)
Screen: 5.5-inch screen with 1280 x 720 resolution
Processor: Rockchip PX30 (4x ARM Cortex-A35 1.5GHz)
Operating System: Android TM9.0
Memory: 2GB RAM/64GB on-board memory
Camera: 8 megapixels
Connection: Wi-Fi, Bluetooth 5.0, USB 2.0 type C
Battery: 4950mAh lithium-polymer battery
VCI: V200
Input: 5V/2A
Sensor: Ambient light sensor
Audio Input/Output MIC: supported
Speaker: supported
Operating Temp: -10 to 45°C (14 to 113°F)
Storage Temp: -20 to 60°C (-4 to 140°F)

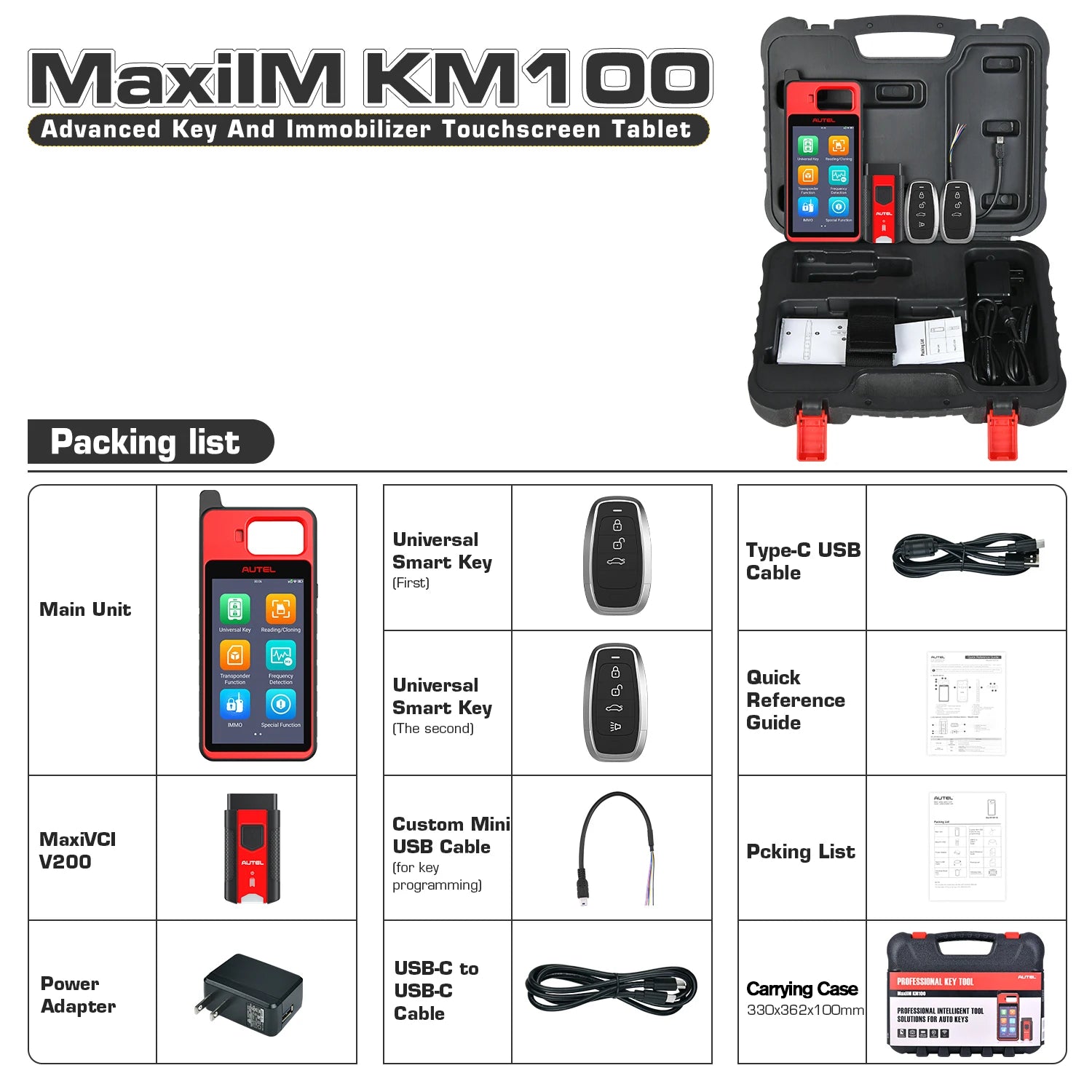

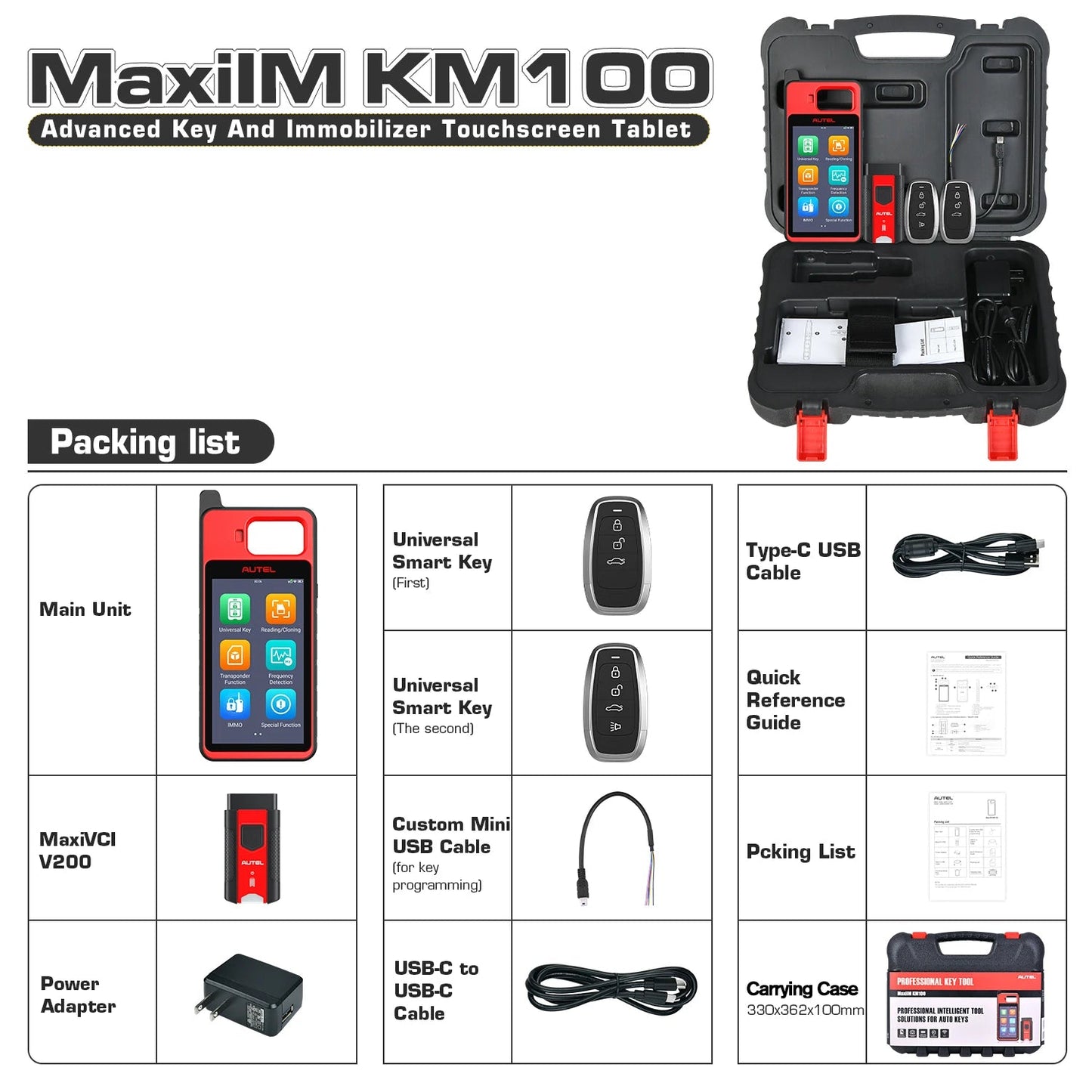

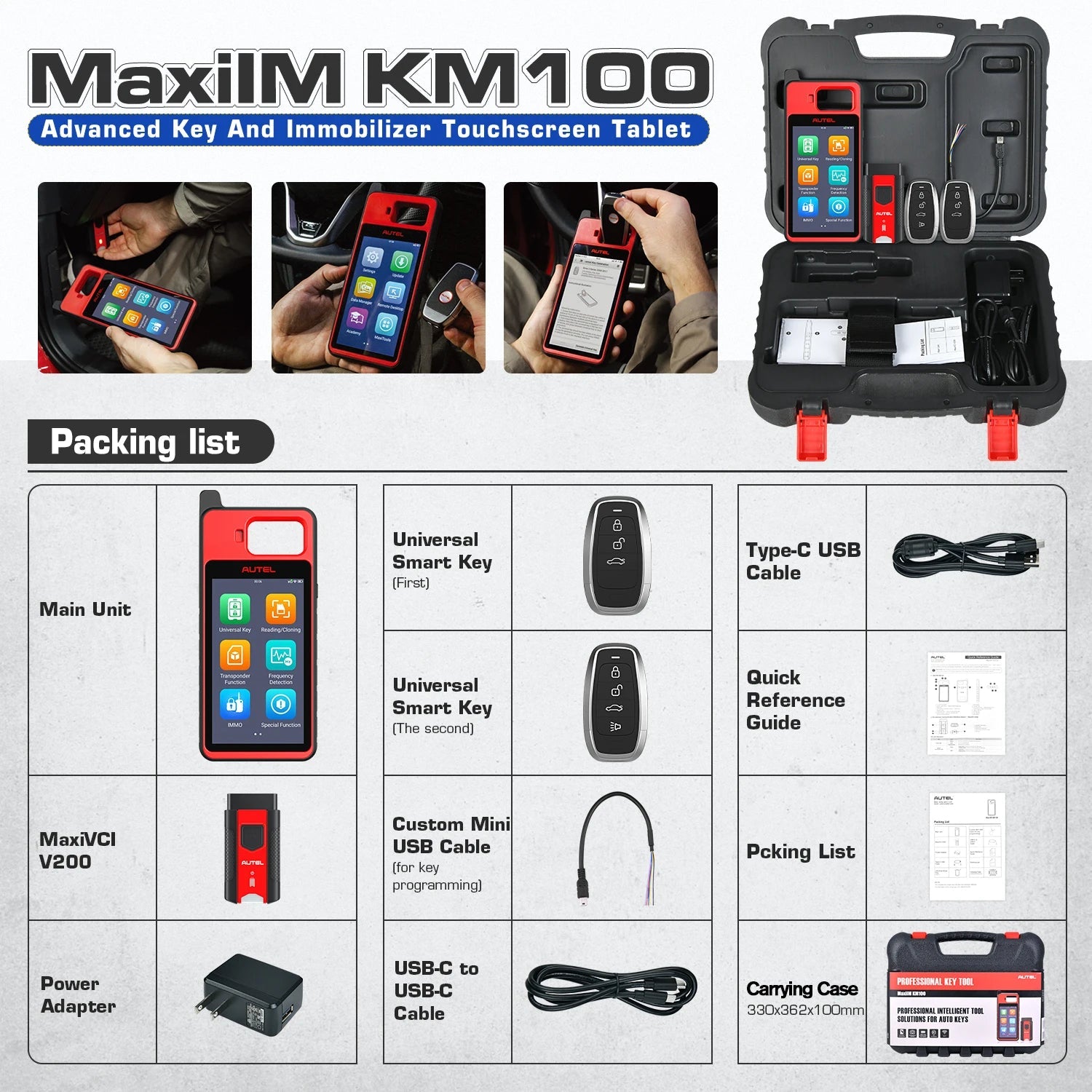

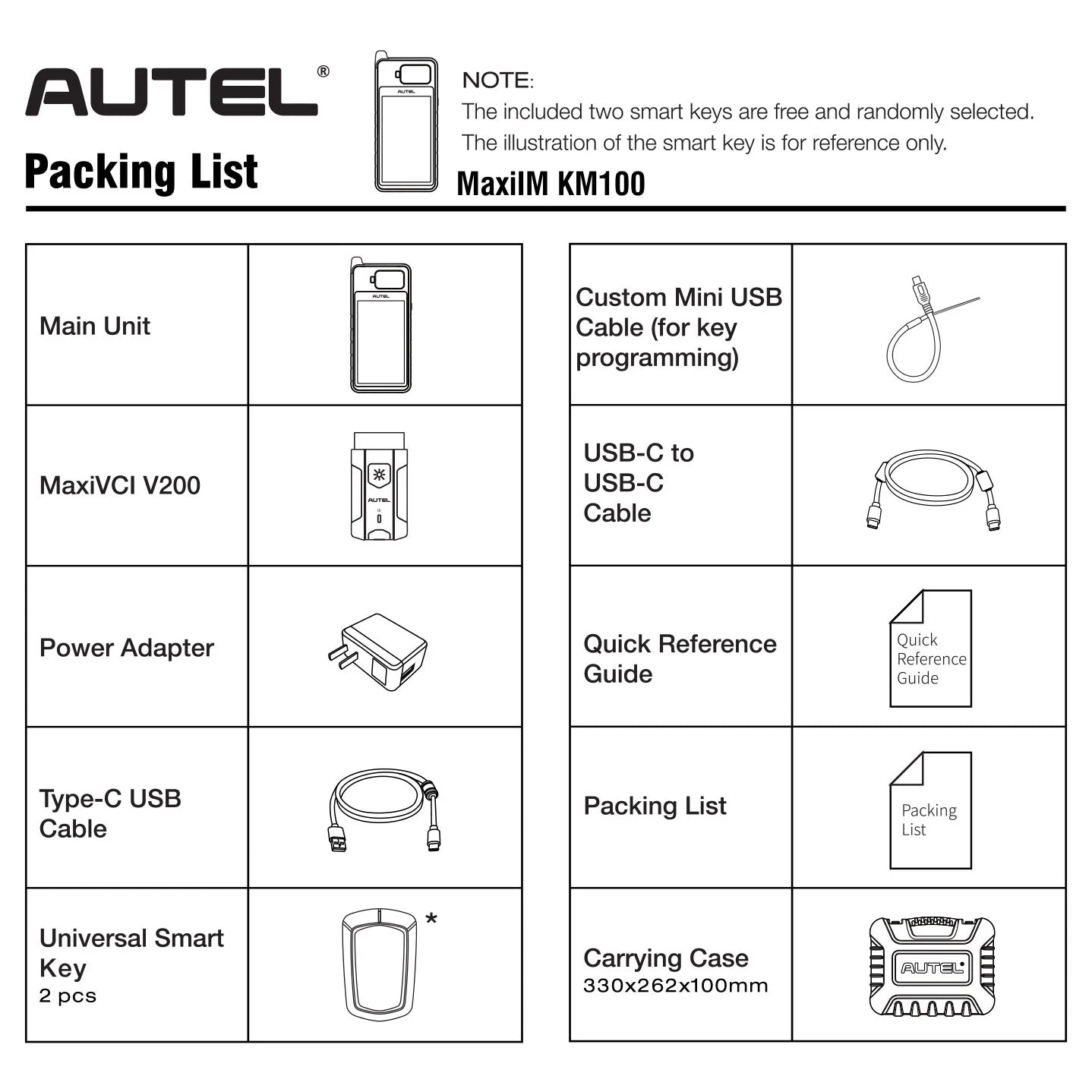

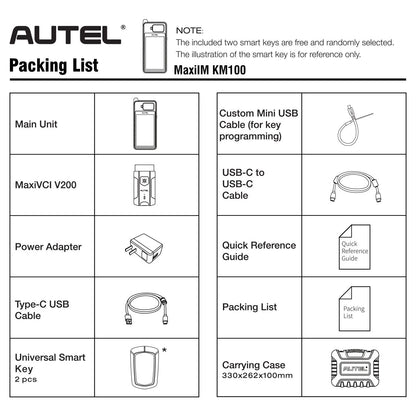

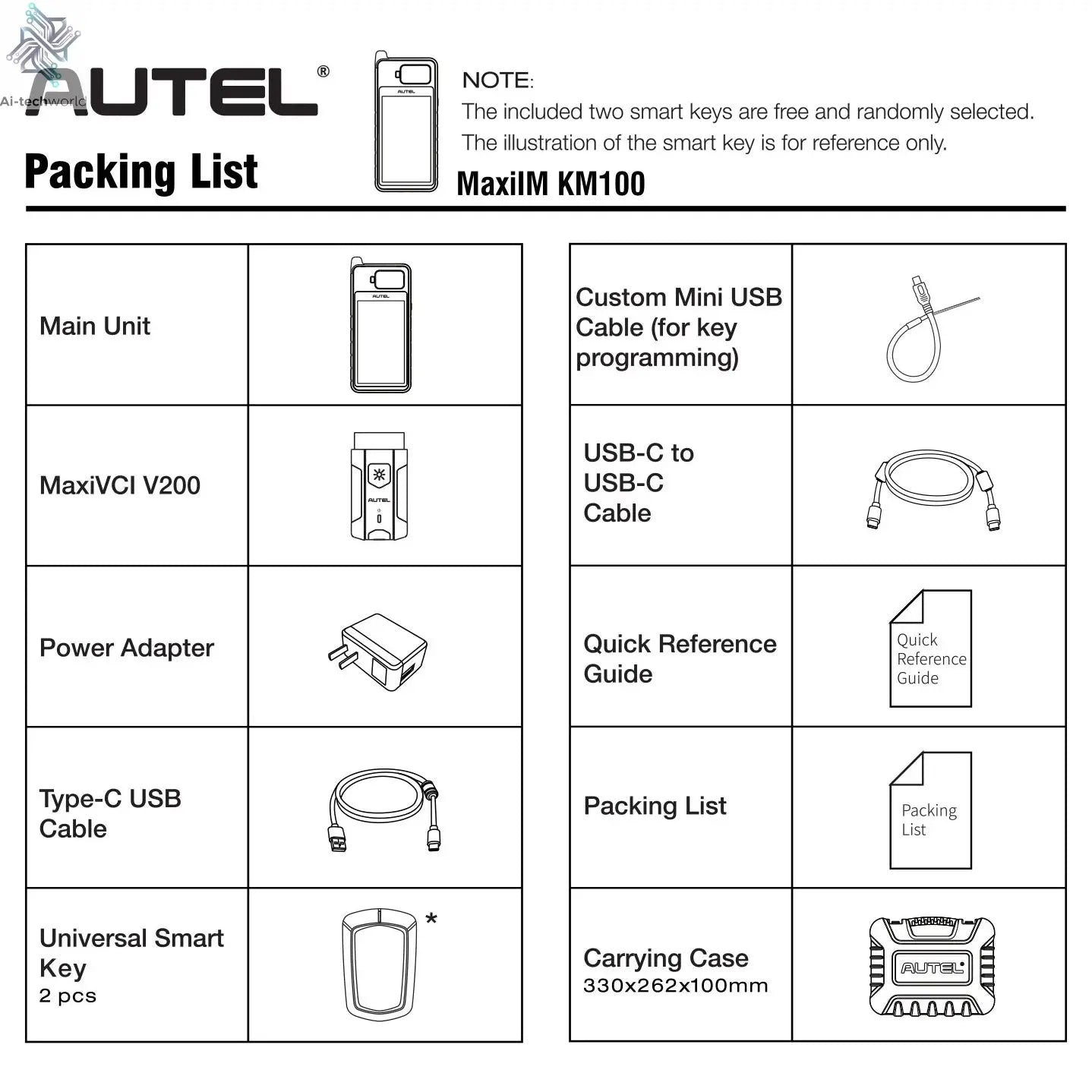

Package List:

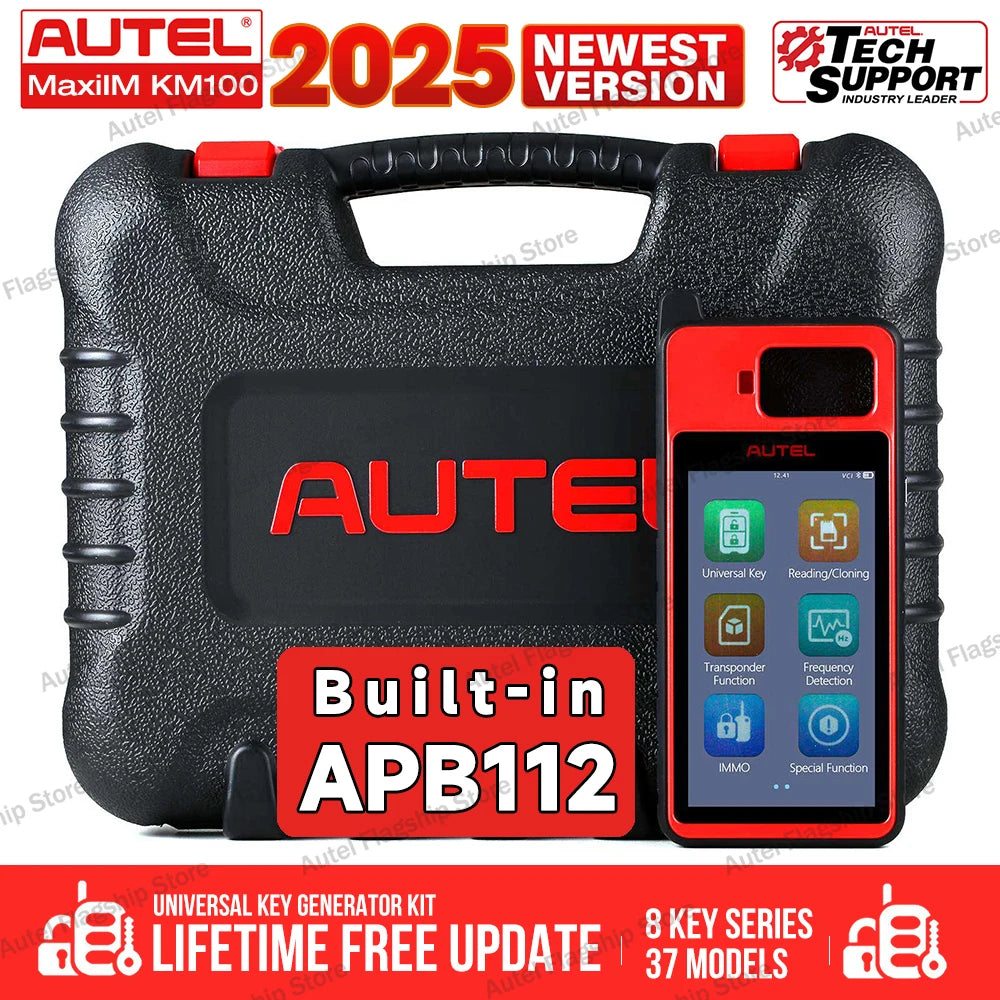

1pc x KM100(X) Universal Key Generator
1pc x OBD Adapter

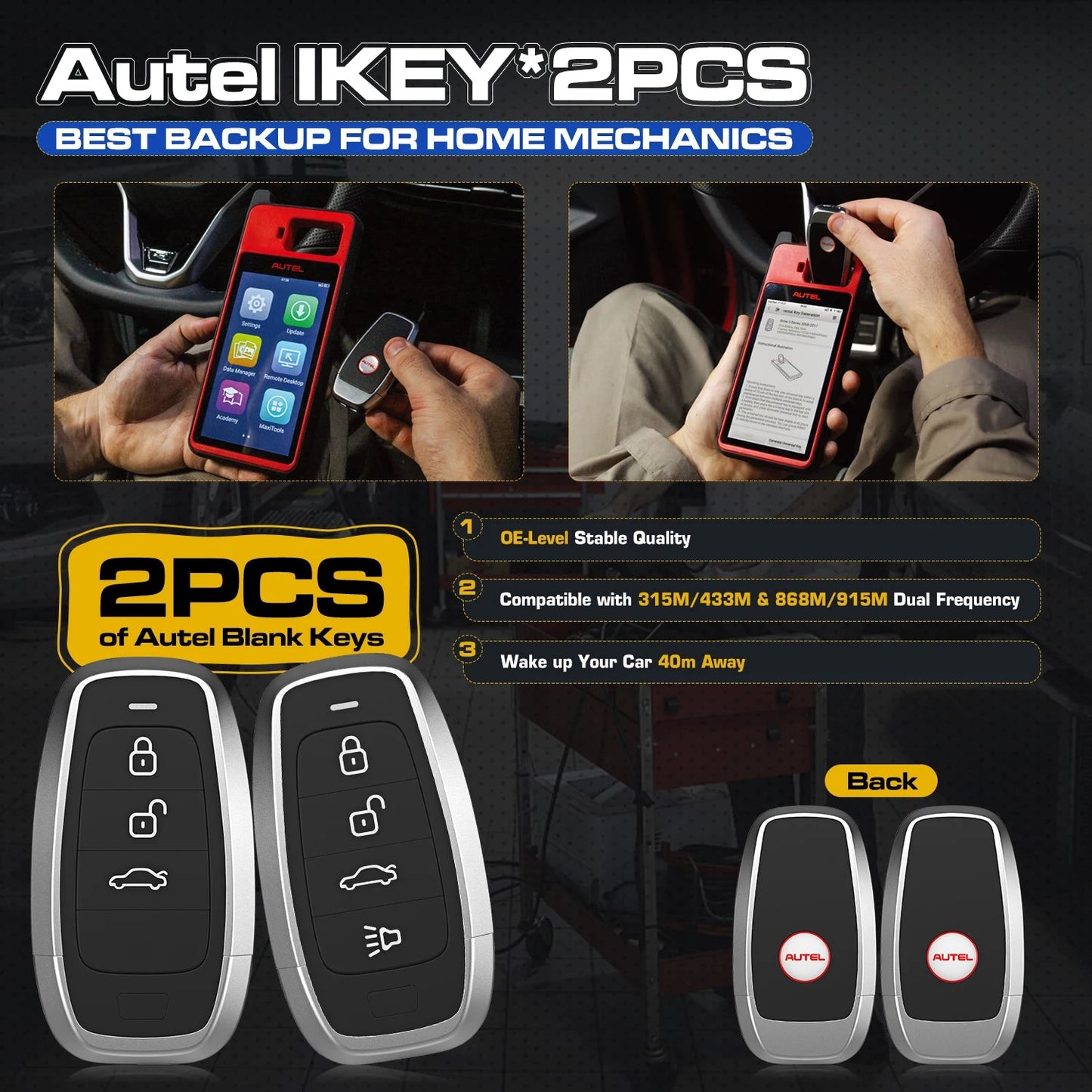

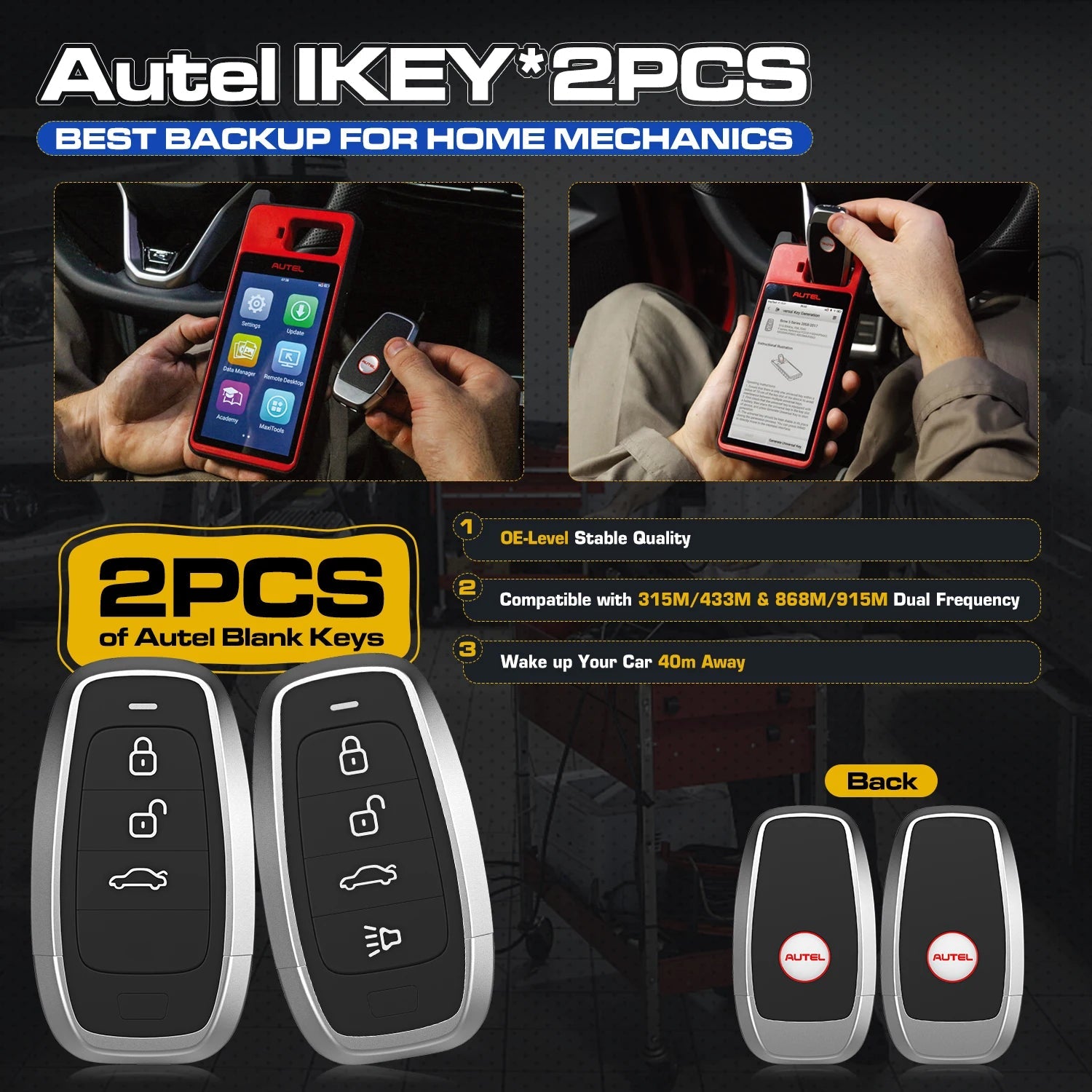

2pcs x Universal Keys

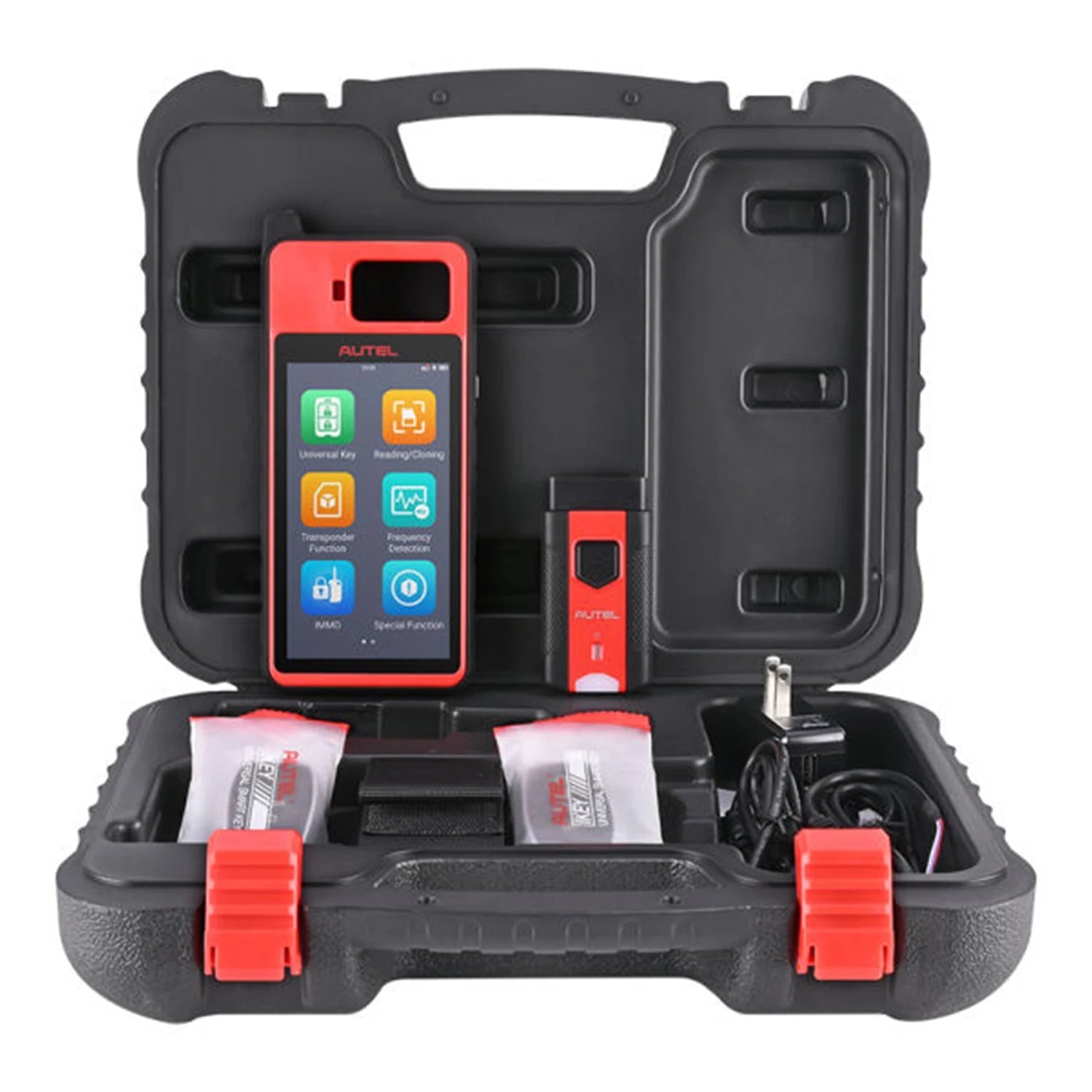

1pc x Hard Shell Carrying Case
Autel KM100 FAQ:
Q: Is it compatible with other brands of chips or keys?
A: Chip: generate and cloning only support with autel AT100
Key: Only support Autel key (slave)
Q: How to activate? Need activation or not?
A: Create an AUTEL account online, bind the KM100 device to activate, and use the same method as other AUTEL tablet devices. You can click here. For activation video, we will upload on youtube.
Q: Is the KM100 matching bluetooth connector compatible with the Autel MaxiVCI VCI 200?
A: not universal.
Q: How many years is the upgrade free? Or is it free for a lifetime?
A: Currently a lifetime free upgrade.
Q: Dedicated chip generation?
A: generate and cloning only support with autel AT100
Q: When I get it is not Spainsh, how to do?
A: Offer us serial number when you get it, we will ask the Autel team to open the Spanish for you.
Q: What is the version now?
A: You can check it.
Q: Does the KM100's built-in universal key support 868M/915M high-frequency keys?
A: The KM100's universal key is not supported, if you need a high-frequency key (868/915 MHz), please contact us to purchase it separately. The only IKEY in the high-frequency version is: IKEYFD004AH or IKEYFD005AH
Q: Are there any Brazilian cars and other local cars?
A: The equipment does not have the following special cars, if you need the following models, please contact us after receiving the equipment, We'll give you a way to add it (paid for purchase):
Australian car: Fordau, Holden
Malaysian car: Perodua,proton
Brazil, Latin America, South America: Fiat Brazil, Gm Brazil
Indian cars: Mahindra, Tat, India Datsun
Supporting 8 Key Chips Series：
ID46, ID47, ID49, ID4A, ID5C, Megamos 48, MQB

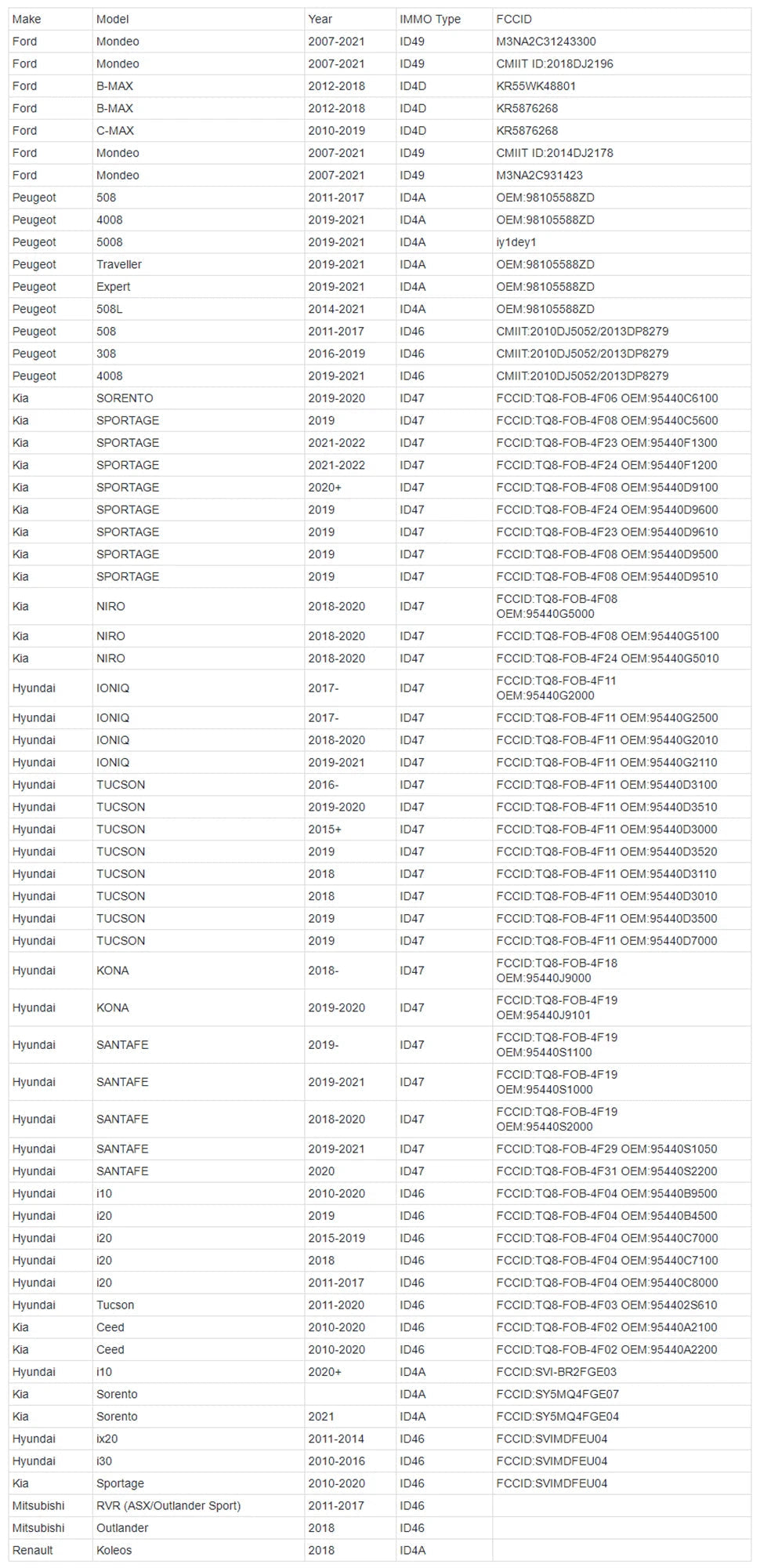

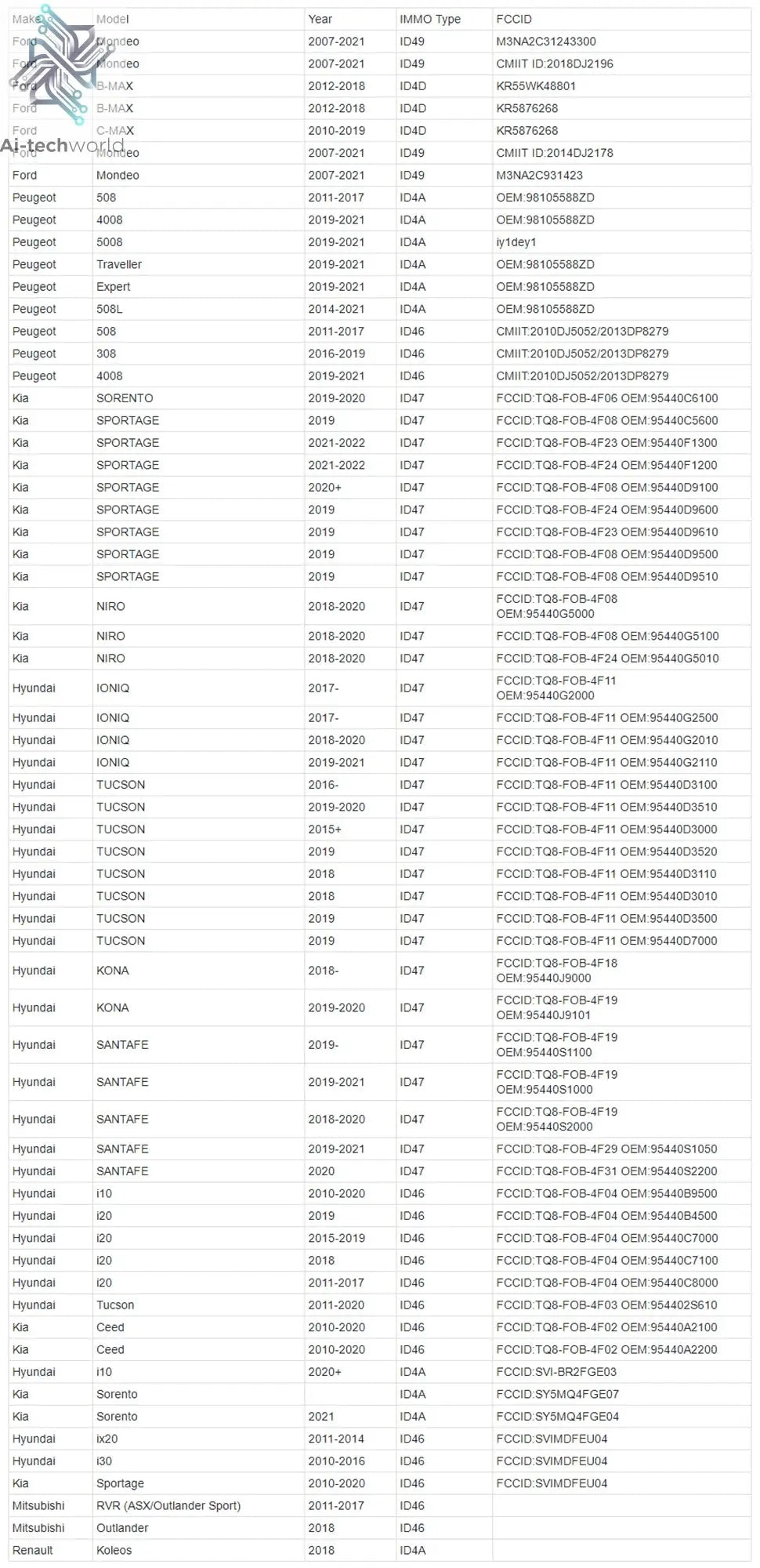

Autel MaxiIM KM100 Currently List Of Supported Models,more support updates will follow！！！(There are too many car models to list them all, please contact us if you have questions)
